Touchstone Semiconductor's New All-in-One Op Amp, Comparator and Reference ICs Cut Power by More Than 10X; New TS12011 and TS12002 Use Only 1.5 µA Icc Max

Touchstone Semiconductor TS12011 TS12012

Touchstone Semiconductor announced the new TS12011 and TS12012, 0.9µW operational amplifier (op amp), comparator and voltage reference in one IC.

Touchstone Semiconductor - TS12011/TS12012

This 10 times reduction in power consumption and operation down to 0.8V enables always-on, single-cell operation that was not previously possible.

Both the TS12011 and TS12012 combine a 0.6V reference, 20µs analog comparator and unity-gain stable operational amplifier in a single package. The TS12011 has a push-pull output, and the TS12012 has an open-drain output.

Both the analog comparator and the op amp feature rail-to-rail input stages. The analog comparator has ±7.5mV of internal hysteresis for clean, chatter-free output switching. The internal reference is designed to sink or source up to 0.1µA load currents.

The TS12011 and TS12012 are ideal for low-frequency, battery-powered systems including local-area alarms/detectors; smoke detectors and safety sensors, infrared receivers for remote controls; instruments, terminals, and bar-code readers; and smart-card readers.

Touchstone Semiconductor - TDFN-10

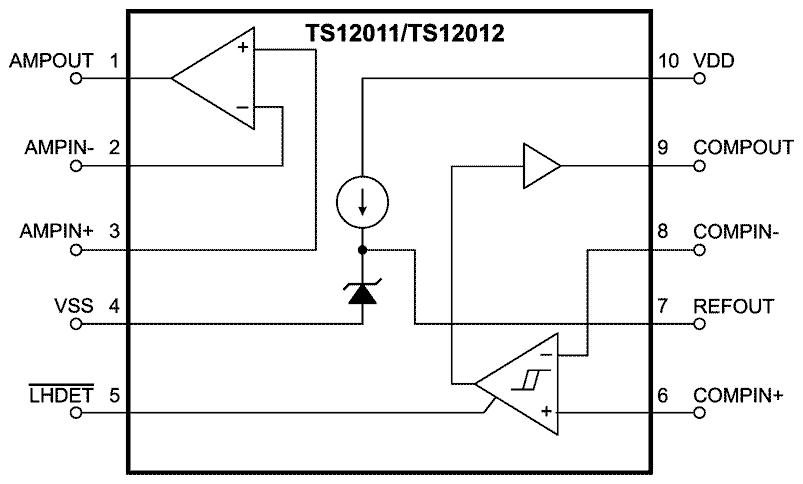

TS12011/TS12012 Block Diagram

TS12011/TS12012 Block Diagram

Key Specifications

  • Nanopower Op Amp, Comparator and 0.6V Reference in Single 4 mm2 Package
  • Ultra Low Total Supply Current: 1.6µA (max)
  • Supply Voltage Operation: 0.8V to 2.5V
  • Internal 0.6V Reference
  • Op Amp and Comparator Input Ranges are Rail-to-Rail
  • Unity-gain Stable Op Amp with AVCL = 110dB
  • Op Amp Output: Rail-to-Rail and Phase-Reversal-Free
  • Internal ±7.5mV Comparator Hysteresis
  • 20µs Comparator Propagation Delay
  • Resettable Latched Comparator
  • TS12011: Push-pull Rail-to-Rail Output Stage with Crowbar-Current Free Switching
  • TS12012: Open-drain Output Stage for Wired-OR or Mixed-Voltage System Applications

The TS12011 and the TS12012 are fully specified over the –40°C to +85°C temperature range. Each is available in a low-profile, 10-pin 2×2mm TDFN package.

The TS12011 and TS12012 are in stock and ready to ship. Pricing starts at $1.70 each in 1,000 piece quantities. The product is in stock and available from Touchstone’s worldwide distributor Future Electronics.

Free samples and free demo boards are available for engineers wanting to test the ICs. Optimized for ultra-long life operation, the TS12011 and TS12012 expand Touchstone’s growing “NanoWatt Analog™” high-performance analog integrated circuits portfolio.
