Agilent Technologies Introduces World's Fastest PXI Vector Signal Generator

Agilent M9380A M9381A

Exclusive Baseband-Tuning Technology Innovation Improves Switching Speed to as Low as 10µs and Accelerates Test Time

Agilent Technologies introduced the world's fastest vector signal generator in a PXI form factor. The Agilent M9381A is a 1-MHz to 3- or 6-GHz VSG that combines fast switching and excellent RF parametric performance: high output power, linearity and superior level accuracy, outstanding adjacent channel power ratio performance (for output levels up to +10 dBm or more) and wide modulation bandwidth (up to 160 MHz) for testing RF devices.

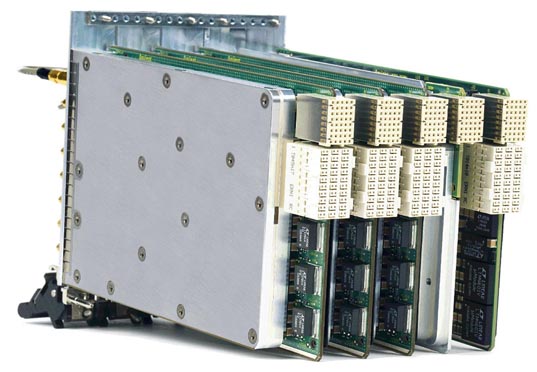

Agilent Technologies - M9381A

Agilent Technologies - M9381A

Agilent designed the M9381A for applications such as testing and validating the design of wireless power amplifiers and transceivers, public safety and military radios, and cellular base stations (primarily picocell and femtocell). The new PXIe VSG does more tests in less time, which reduces the cost of testing. Agilent's exclusive baseband-tuning technology innovation enables frequency and amplitude switching speed as fast as 10 µs in list mode and 250 µs from its programming interface. The switching speed is further enhanced by excellent linearity and repeatability associated with Agilent's signal generators.

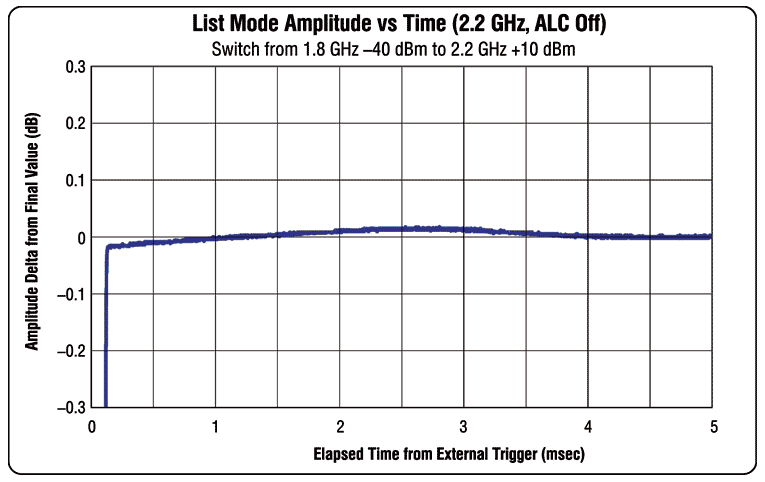

Agilent Technologies - M9381A - List Mode Amplitude vs Time
List Mode Amplitude vs Time (2.2 GHz, ALC Off)

The versatile list mode helps increase speed and provides flexibility by allowing engineers to change 80 parameters, including frequency, power and modulation in as many as 3,201 list mode points. This enables engineers to meet a wide variety of test requirements while improving test throughput.

Engineers can use the Agilent M9381A VSG to test wideband power amplifiers, front-end modules, transceivers and more, at standard 40 MHz RF bandwidth or options of 100 MHz or 160 MHz bandwidth with real-time corrections and ±0.1, ±0.2, and ±0.3 dB flatness, respectively.

The M9381A, with its excellent modulation quality at high output power, can be used at power levels up to +10 dBm or more depending on the standard with little degradation to adjacent channel power ratio performance. This enables engineers to directly operate at the required power levels without additional amplification to compensate for test system losses. The M9381A delivers ACPR of up to –70 dBc (W-CDMA test model 1, 64 DPCH). The output power up to +19 dBm can be controlled precisely with accuracy of ±0.4 dB.

The Agilent M9381A PXIe vector signal generator simulates complex real-world communications signals through Signal Studio software. Signal Studio is a flexible suite of signal-creation tools that offers performance-optimized reference signals validated by Agilent to support standards such as LTE and 802.11ac.

Agilent's unique and industry-leading calibration core exchange strategy maximizes system uptime by providing fast repairs.

The M9381A PXIe vector signal generator is the latest addition to Agilent's growing lineup of more than 60 PXI and AXIe modular products.

U.S. Pricing and Availability

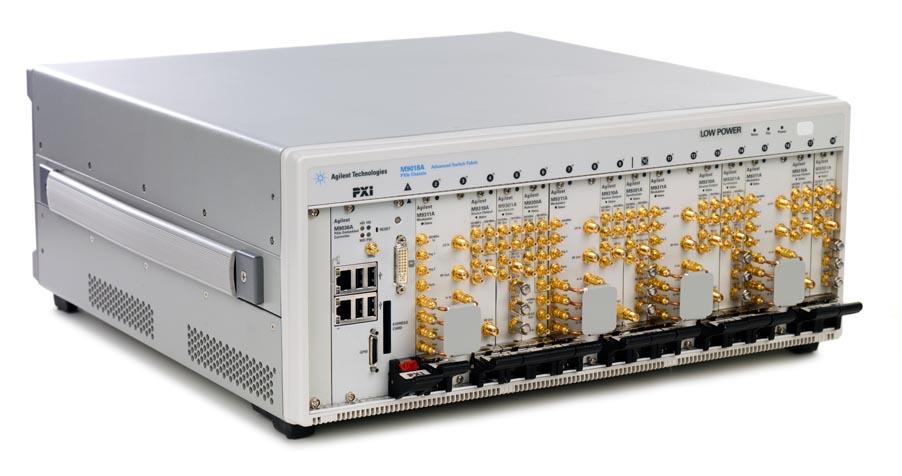

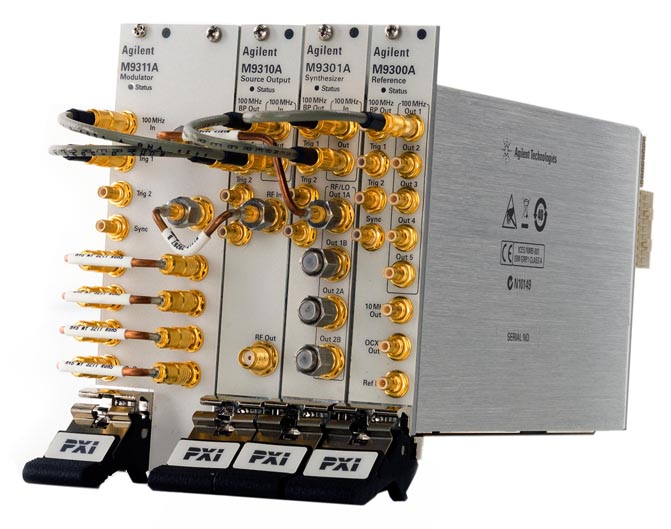

Available now, the Agilent M9381A PXIe vector signal generator consists of the following: M9311A digital vector modulator, M9310A source output, M9301A synthesizer and M9300A frequency reference. Pricing starts at $25,663 for the base configuration, with license key upgrades available for increased modulation bandwidth, frequency range, memory, output power and faster switching. Four VSGs can be housed in a single 18-slot PXI chassis.

Agilent Technologies - M9381A

The M9380A PXIe CW source (a configuration without the M9311A digital vector modulator) is also available, starting at $19,000 for the base configuration, with license key upgrades for increased frequency range and output power. The Agilent M9018A all-hybrid PXI chassis and M9036A embedded controller are ideal to complete both configurations.
