Simple, Constant-Current Linear Regulator from Diodes Incorporated Improves LED Current Tolerance

Diodes AL5809

Diodes Incorporated introduced the AL5809. This constant-current LED driver is offered in a robust two-terminal PowerDI®-123 package, and provides an improved accuracy, cost-effective solution for LEDs driving. With its 1.2 W maximum power dissipation, excellent 20 ppm/°C temperature stability and high power-supply rejection ratio, the AL5809 delivers LED currents with a ±5% tolerance over a wide temperature range, greatly simplifying the solutions for its target applications of LED signage, LED strip lighting and low-current retrofit lamps.

Diodes - AL5809

The AL5809 is specified for the –40 °C to +125 °C temperature range, with an operating voltage (between the two terminals) from 2.5 V to 60 V and is offered in various fixed-output current versions, which removes the need for external current setting resistors. The PowerDI-123 package fixed-output current options are 15 mA, 20 mA, 30 mA, 40 mA, 50 mA, 60 mA, 90 mA, 120 mA and 150 mA, while in the alternative SOD-123 package there are current output versions of 15 mA, 20 mA, 30 mA, 40 mA and 50 mA.

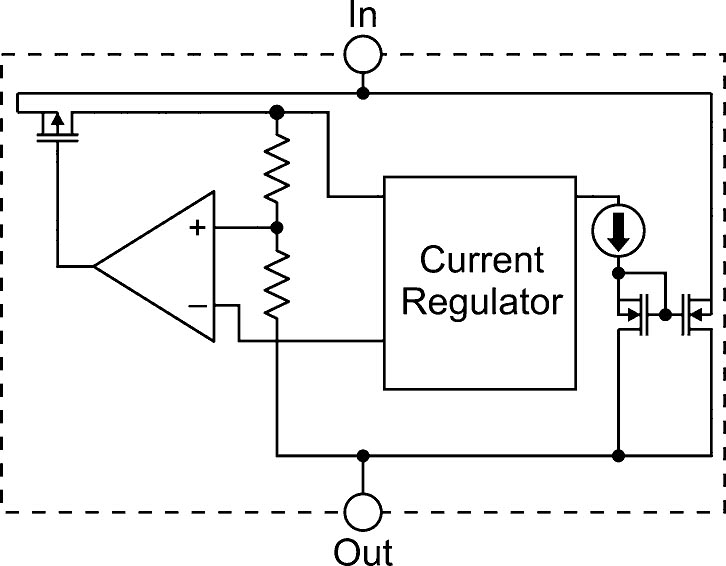

AL5809 - Functional Block Diagram

Functional Block Diagram.

As well as meeting the needs of designs requiring a simple linear regulator (e.g., no inductor or external resistor), the AL5809 provides additional performance features over-temperature protection (OTP) and the ability to drive both low and high-side LED chains.

The AL5809 is a small footprint, low BOM-cost LED driver that is simple to use and provides improved accuracy and all-round higher performance than competitive alternatives or discrete circuit designs.
