AVR programmer Olimex AVR-PG1

Olimex » AVR-PG1B, AVR-PG1

Main Features of Programmer
ParameterValue
TypeIn-circuit
Connection interfaceRS-232
Target connectionICSP-10(Atmel)
VersionDongle
Supported devicesMCU Atmel AVR

AVR-PG1 - Serial port (RS232) PONY PROG compatible AVR programmer with STKxxx 10 pin ICSP connector.

AVR-PG1 is the most simple and inexpensive AVR programmer on the market. It works with the great free AVR programming software made by Claudio Lanconelli - the Pony Prog you can always look at the list of the supported devices on this link as it grows every month.

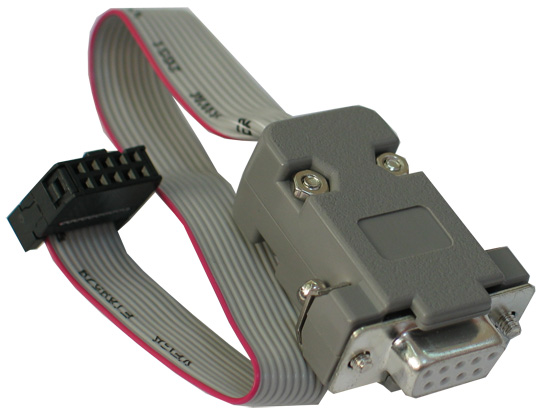

Olimex AVR-PG1

FEATURES:

  • connects to PC via RS232 port (note it will not work with USB-RS232 converters!)
  • no need for external power supply as it takes the power supply from target board.
  • uses Atmel's 2×5 pin ICSP connector layout
  • dimensions 45×30 mm (1.7×1.2") + 20 cm (8") cable

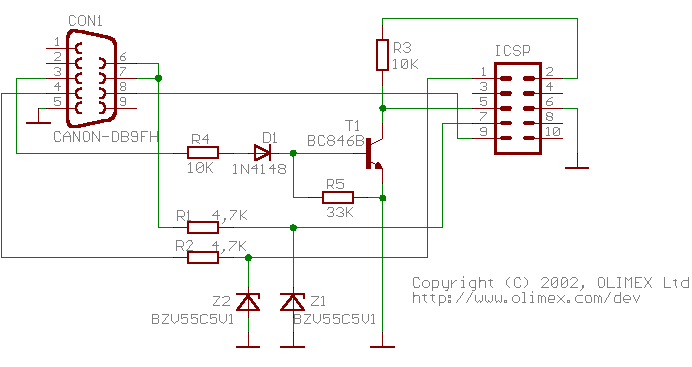

Schematic diagram AVR-PG1 programmer

Olimex AVR-PG1B Schematic
