Pulse Generator

Introduction

Pulse Generator kit will generate a frequency in KHz which can form a good test gear project. This kit is based on the classic LM555 timer IC.
Input - 12 VDC Max @ 40 mA

  • Range - jumper selectable and preset tunable range of 1 Hz to 180 KHz
  • Power-On LED indicator
  • Terminal pins for easy connection
  • Four mounting holes of 3.2 mm each
  • PCB dimensions 40 mm x 47 mm

Description

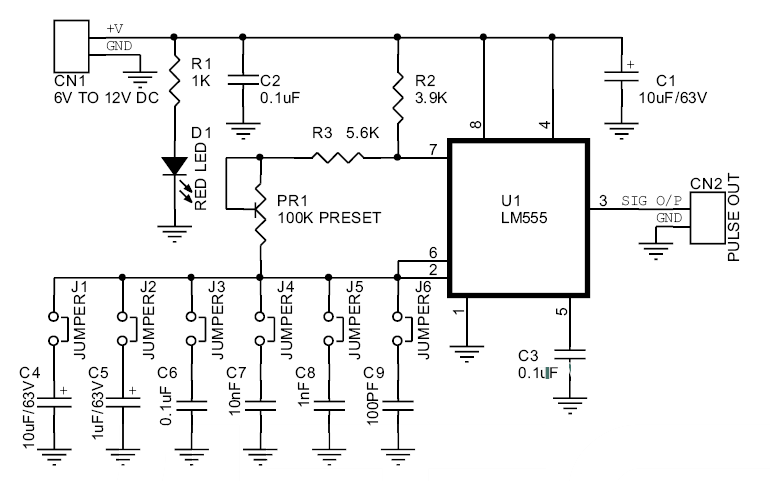

Schematic

Schematic


Layout

Slices ↓
