Datasheet LM7805 (ON Semiconductor) - 2
| Manufacturer | ON Semiconductor |
| Description | 3-Terminal 1 A Positive Voltage Regulator in TO-220 package |
| Pages / Page | 26 / 2 — LM78XX / LM78XXA —. Block Diagram. 3-T. e rminal. 1 A Positive V. Figure … |
| Document Language | English |

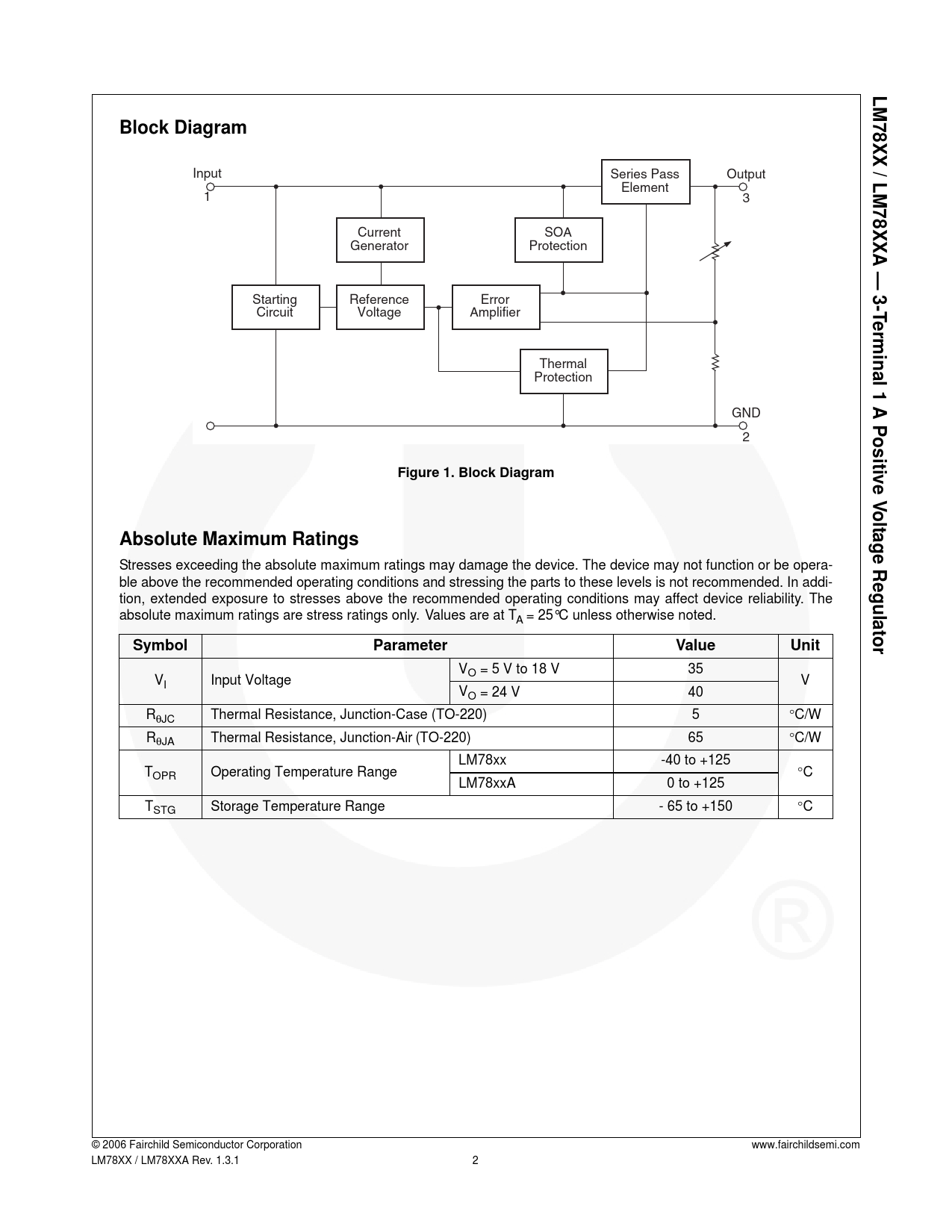

LM78XX / LM78XXA —. Block Diagram. 3-T. e rminal. 1 A Positive V. Figure 1. Block Diagram. o lt age Regulator
Model Line for this Datasheet
Text Version of Document
LM78XX / LM78XXA — Block Diagram
Input Series Pass Output Element 1 3 Current SOA Generator Protection
3-T
Starting Reference Error Circuit Voltage Amplifier
e rminal
Thermal Protection
1 A Positive V
GND 2
Figure 1. Block Diagram o lt age Regulator Absolute Maximum Ratings
Stresses exceeding the absolute maximum ratings may damage the device. The device may not function or be opera- ble above the recommended operating conditions and stressing the parts to these levels is not recommended. In addi- tion, extended exposure to stresses above the recommended operating conditions may affect device reliability. The absolute maximum ratings are stress ratings only. Values are at TA = 25°C unless otherwise noted.
Symbol Parameter Value Unit
VO = 5 V to 18 V 35 VI Input Voltage V VO = 24 V 40 RθJC Thermal Resistance, Junction-Case (TO-220) 5 °C/W RθJA Thermal Resistance, Junction-Air (TO-220) 65 °C/W LM78xx -40 to +125 TOPR Operating Temperature Range °C LM78xxA 0 to +125 TSTG Storage Temperature Range - 65 to +150 °C © 2006 Fairchild Semiconductor Corporation www.fairchildsemi.com LM78XX / LM78XXA Rev. 1.3.1 2
