MAX4073T/F/H. Low-Cost, SC70, Voltage-Output, High-Side Current-Sense Amplifier. Package Information
Model Line for this Datasheet
Text Version of Document

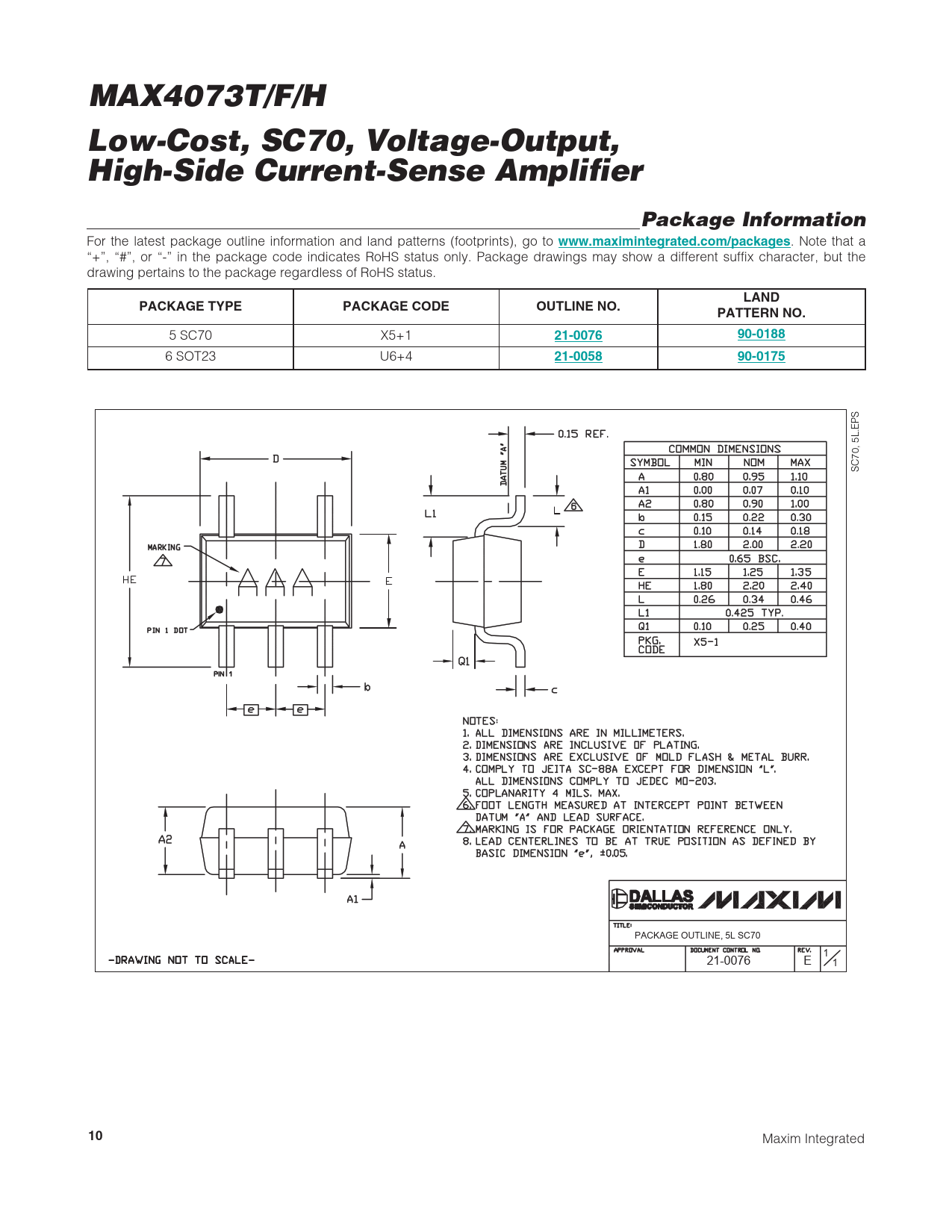

MAX4073T/F/H Low-Cost, SC70, Voltage-Output, High-Side Current-Sense Amplifier Package Information
For the latest package outline information and land patterns (footprints), go to
www.maximintegrated.com/packages
. Note that a “+”, “#”, or “-” in the package code indicates RoHS status only. Package drawings may show a different suffix character, but the drawing pertains to the package regardless of RoHS status.
LAND PACKAGE TYPE PACKAGE CODE OUTLINE NO. PATTERN NO.
5 SC70 X5+1
21-0076 90-0188
6 SOT23 U6+4
21-0058 90-0175
SC70, 5L.EPS PACKAGE OUTLINE, 5L SC70 21-0076 1 E 1
10
