Datasheet AD8226 (Analog Devices) - 9
| Manufacturer | Analog Devices |
| Description | Wide Supply Range, Rail-to-Rail Output Instrumentation Amplifier |
| Pages / Page | 29 / 9 — AD8226. Data Sheet. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. –IN. … |
| Revision | C |
| File Format / Size | PDF / 720 Kb |
| Document Language | English |

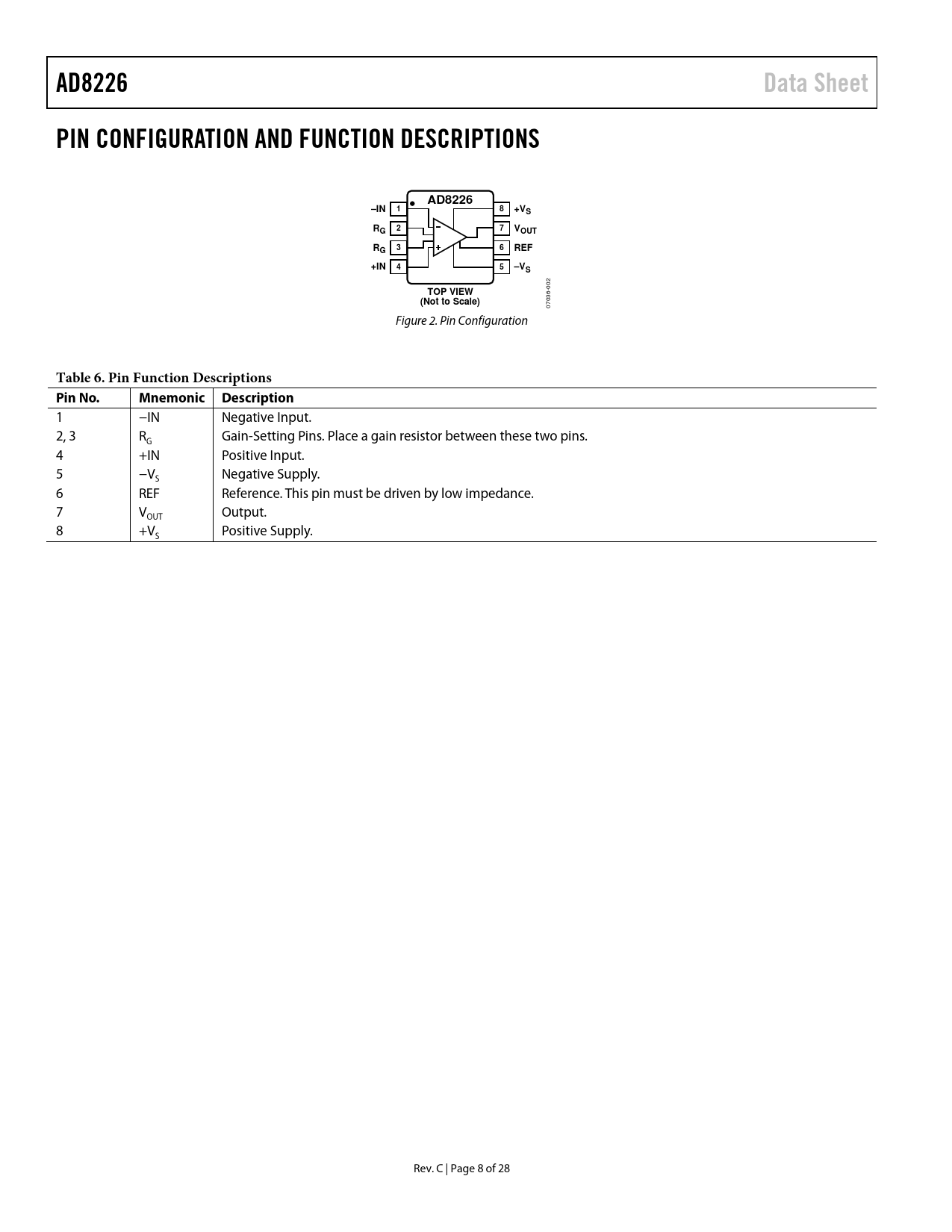

AD8226. Data Sheet. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. –IN. +VS. VOUT. REF. +IN. –VS. TOP VIEW. (Not to Scale)
Text Version of Document
AD8226 Data Sheet PIN CONFIGURATION AND FUNCTION DESCRIPTIONS AD8226 –IN 1 8 +VS RG 2 7 VOUT RG 3 6 REF +IN 4 5 –VS
002
TOP VIEW (Not to Scale)
07036- Figure 2. Pin Configuration
Table 6. Pin Function Descriptions Pin No. Mnemonic Description
1 −IN Negative Input. 2, 3 R
Gain-Setting Pins. Place a gain resistor between these two pins. G 4 +IN Positive Input. 5 −V Negative Supply. S 6 REF Reference. This pin must be driven by low impedance. 7 V Output. OUT 8 +V Positive Supply. S Rev. C | Page 8 of 28 Document Outline Features Applications Pin Configuration General Description Revision History Specifications Absolute Maximum Ratings Thermal Resistance ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Theory of Operation Architecture Gain Selection Reference Terminal Input Voltage Range Performance Across Temperature Recommendation for Best Performance Layout Common-Mode Rejection Ratio Over Frequency Power Supplies References Input Bias Current Return Path Input Protection Radio Frequency Interference (RFI) Applications Information Differential Drive Tips for Best Differential Output Performance Precision Strain Gage Driving an ADC Outline Dimensions Ordering Guide
