Datasheet AMS1117 (Advanced Monolithic Systems)
| Manufacturer | Advanced Monolithic Systems |
| Description | 1A Low Dropout Voltage Regulator |
| Pages / Page | 8 / 1 — Advanced. AMS1117. Monolithic 1A LOW DROPOUT VOLTAGE REGULATOR. Systems. … |
| File Format / Size | PDF / 95 Kb |
| Document Language | English |

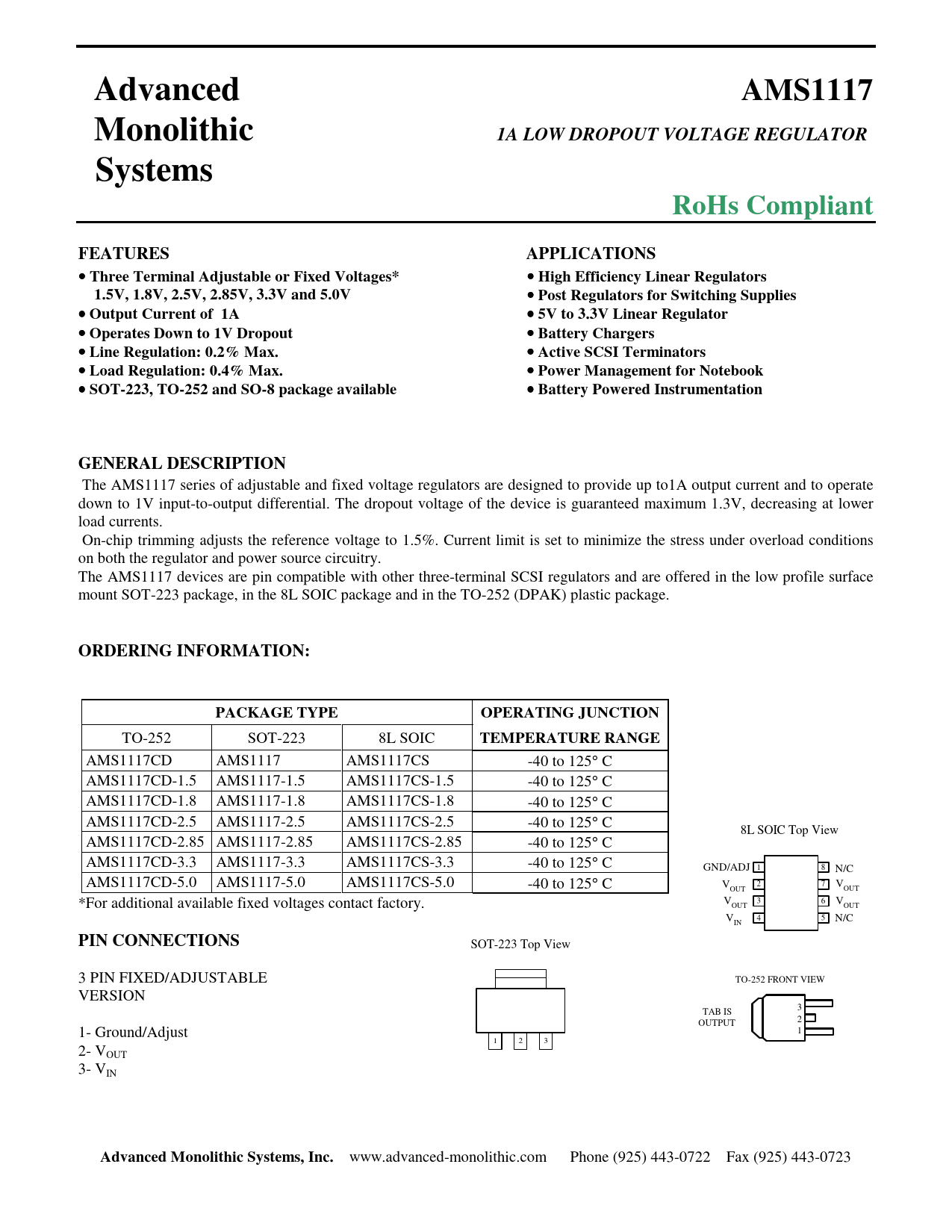

Advanced. AMS1117. Monolithic 1A LOW DROPOUT VOLTAGE REGULATOR. Systems. RoHs Compliant. FEATURES. APPLICATIONS
Text Version of Document
Advanced AMS1117 Monolithic 1A LOW DROPOUT VOLTAGE REGULATOR Systems RoHs Compliant FEATURES APPLICATIONS
•
Three Terminal Adjustable or Fixed Voltages*
•
High Efficiency Linear Regulators 1.5V, 1.8V, 2.5V, 2.85V, 3.3V and 5.0V
•
Post Regulators for Switching Supplies
•
Output Current of 1A
•
5V to 3.3V Linear Regulator
•
Operates Down to 1V Dropout
•
Battery Chargers
•
Line Regulation: 0.2% Max.
•
Active SCSI Terminators
•
Load Regulation: 0.4% Max.
•
Power Management for Notebook
•
SOT-223, TO-252 and SO-8 package available
•
Battery Powered Instrumentation GENERAL DESCRIPTION
The
The AMS1117 series of adjustable and fixed voltage regulators are designed to provide up to1A output current and to operate down to 1V input-to-output differential. The dropout voltage of the device is guaranteed maximum 1.3V, decreasing at lower load currents. On-chip trimming adjusts the reference voltage to 1.5%. Current limit is set to minimize the stress under overload conditions on both the regulator and power source circuitry. The AMS1117 devices are pin compatible with other three-terminal SCSI regulators and are offered in the low profile surface mount SOT-223 package, in the 8L SOIC package and in the TO-252 (DPAK) plastic package.
ORDERING INFORMATION: PACKAGE TYPE OPERATING JUNCTION
TO-252 SOT-223 8L SOIC
TEMPERATURE RANGE
AMS1117CD AMS1117 AMS1117CS -40 to 125° C AMS1117CD-1.5 AMS1117-1.5 AMS1117CS-1.5 -40 to 125° C AMS1117CD-1.8 AMS1117-1.8 AMS1117CS-1.8 -40 to 125° C AMS1117CD-2.5 AMS1117-2.5 AMS1117CS-2.5 -40 to 125° C 8L SOIC Top View AMS1117CD-2.85 AMS1117-2.85 AMS1117CS-2.85 -40 to 125° C AMS1117CD-3.3 AMS1117-3.3 AMS1117CS-3.3 -40 to 125° C GND/ADJ 1 8 N/C AMS1117CD-5.0 AMS1117-5.0 AMS1117CS-5.0 -40 to 125° C V 2 7 V OUT OUT *For additional available fixed voltages contact factory. V 3 6 V OUT OUT V 4 5 N/C IN
PIN CONNECTIONS
SOT-223 Top View
3 PIN FIXED/ADJUSTABLE TO-252 FRONT VIEW VERSION 3 TAB IS OUTPUT 2 1- Ground/Adjust 1 1 2 3 2- V OUT
3- VIN
Advanced Monolithic Systems, Inc.
www.advanced-monolithic.com Phone (925) 443-0722 Fax (925) 443-0723
•
