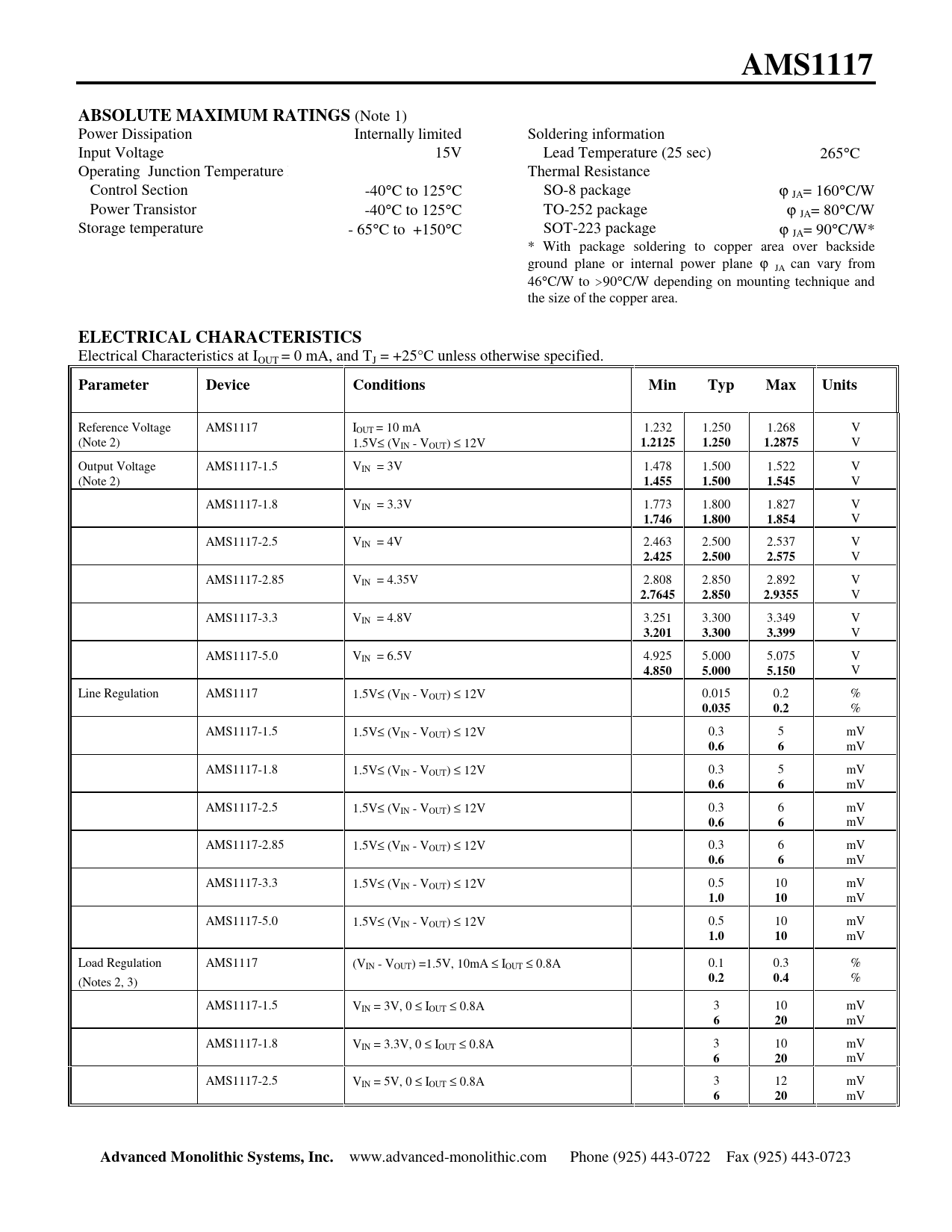

Power Dissipation Internally limited Soldering information Input Voltage 15V Lead Temperature (25 sec) 265°C Operating
Junction Temperature Range Thermal Resistance Control Section -40°C to 125°C SO-8 package ϕ JA= 160°C/W Power Transistor -40°C to 125°C TO-252 package ϕ JA= 80°C/W Storage temperature - 65°C to +150°C SOT-223 package ϕ JA= 90°C/W* * With package soldering to copper area over backside ground plane or internal power plane ϕ JA can vary from 46°C/W to >90°C/W depending on mounting technique and the size of the copper area. ELECTRICAL CHARACTERISTICS Electrical Characteristics at IOUT = 0 mA, and TJ = +25°C unless otherwise specified. ParameterDeviceConditionsMin Typ MaxUnits Reference Voltage AMS1117 IOUT = 10 mA 1.232 1.250 1.268 V (Note 2)
1.5V≤ (VIN - VOUT) ≤ 12V 1.21251.2501.2875 V Output Voltage AMS1117-1.5 VIN = 3V 1.478 1.500 1.522 V (Note 2) 1.4551.5001.545 V AMS1117-1.8 VIN = 3.3V 1.773 1.800 1.827 V 1.7461.8001.854 V AMS1117-2.5 VIN = 4V 2.463 2.500 2.537 V 2.4252.5002.575 V AMS1117-2.85 VIN = 4.35V 2.808 2.850 2.892 V 2.76452.8502.9355 V AMS1117-3.3 VIN = 4.8V 3.251 3.300 3.349 V 3.2013.3003.399 V AMS1117-5.0 VIN = 6.5V 4.925 5.000 5.075 V 4.8505.0005.150 V Line Regulation
