Datasheet AMS1117 (Advanced Monolithic Systems) - 8
| Manufacturer | Advanced Monolithic Systems |
| Description | 1A Low Dropout Voltage Regulator |
| Pages / Page | 8 / 8 — AMS1117. PACKAGE DIMENSIONS. Advanced Monolithic Systems, Inc |
| File Format / Size | PDF / 95 Kb |
| Document Language | English |
AMS1117. PACKAGE DIMENSIONS. Advanced Monolithic Systems, Inc
Text Version of Document

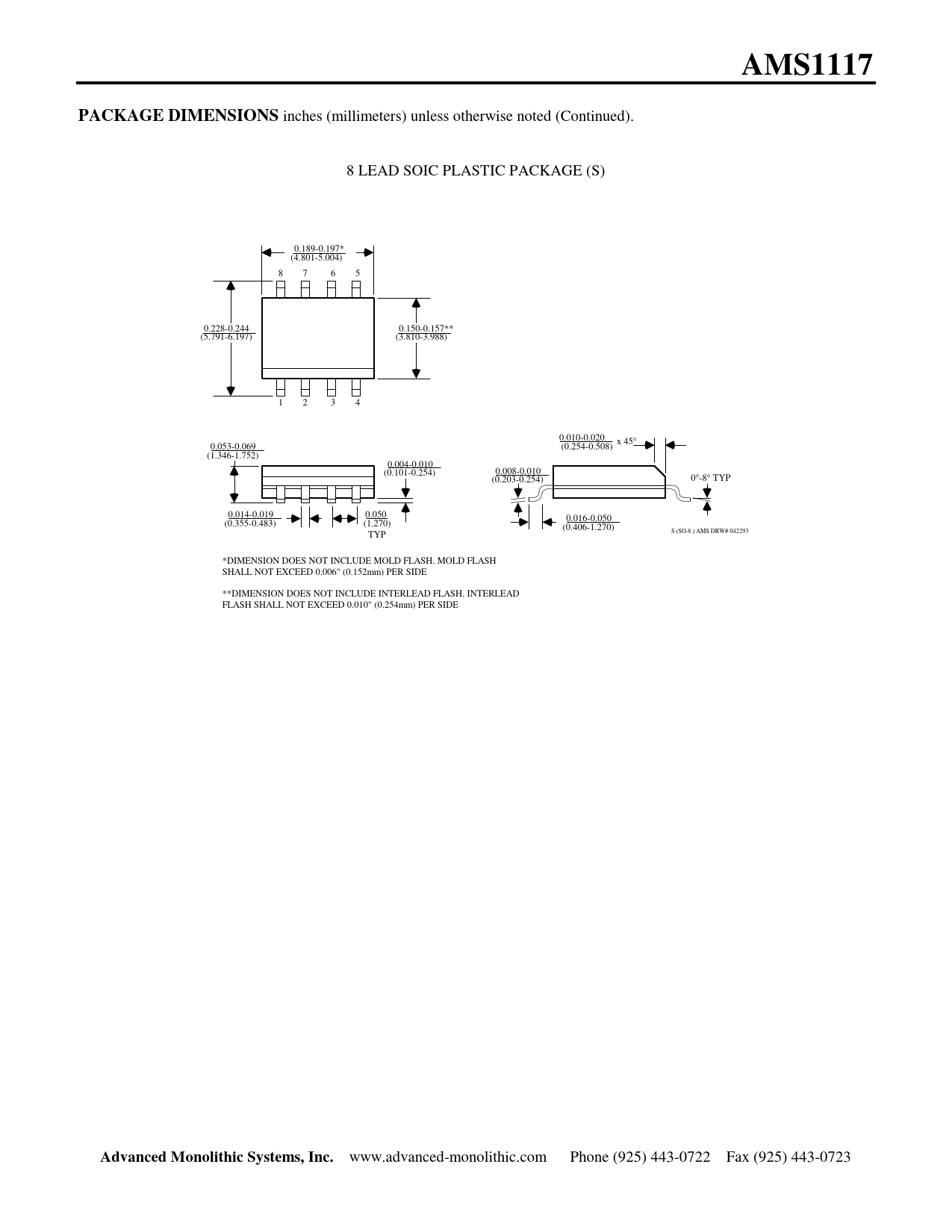

AMS1117 PACKAGE DIMENSIONS
inches (millimeters) unless otherwise noted (Continued). 8 LEAD SOIC PLASTIC PACKAGE (S) 0.189-0.197* (4.801-5.004) 8 7 6 5 0.228-0.244 0.150-0.157** (5.791-6.197) (3.810-3.988) 1 2 3 4 0.010-0.020 x 45° 0.053-0.069 (0.254-0.508) (1.346-1.752) 0.004-0.010 0.008-0.010 (0.101-0.254) (0.203-0.254) 0°-8° TYP 0.014-0.019 0.050 0.016-0.050 (0.355-0.483) (1.270) (0.406-1.270) S (SO-8 ) AMS DRW# 042293 TYP *DIMENSION DOES NOT INCLUDE MOLD FLASH. MOLD FLASH SHALL NOT EXCEED 0.006" (0.152mm) PER SIDE **DIMENSION DOES NOT INCLUDE INTERLEAD FLASH. INTERLEAD FLASH SHALL NOT EXCEED 0.010" (0.254mm) PER SIDE
Advanced Monolithic Systems, Inc.
www.advanced-monolithic.com Phone (925) 443-0722 Fax (925) 443-0723
inches (millimeters) unless otherwise noted (Continued). 8 LEAD SOIC PLASTIC PACKAGE (S) 0.189-0.197* (4.801-5.004) 8 7 6 5 0.228-0.244 0.150-0.157** (5.791-6.197) (3.810-3.988) 1 2 3 4 0.010-0.020 x 45° 0.053-0.069 (0.254-0.508) (1.346-1.752) 0.004-0.010 0.008-0.010 (0.101-0.254) (0.203-0.254) 0°-8° TYP 0.014-0.019 0.050 0.016-0.050 (0.355-0.483) (1.270) (0.406-1.270) S (SO-8 ) AMS DRW# 042293 TYP *DIMENSION DOES NOT INCLUDE MOLD FLASH. MOLD FLASH SHALL NOT EXCEED 0.006" (0.152mm) PER SIDE **DIMENSION DOES NOT INCLUDE INTERLEAD FLASH. INTERLEAD FLASH SHALL NOT EXCEED 0.010" (0.254mm) PER SIDE
