Datasheet ADA4610-1, ADA4610-2, ADA4610-4 (Analog Devices) - 3
| Manufacturer | Analog Devices |
| Description | Low Noise, Precision, Rail-to-Rail Output, JFET Single Op Amp |
| Pages / Page | 25 / 3 — Data Sheet. ADA4610-1/ADA4610-2/ADA4610-4. SPECIFICATIONS. Table 2. … |
| Revision | I |
| File Format / Size | PDF / 761 Kb |
| Document Language | English |

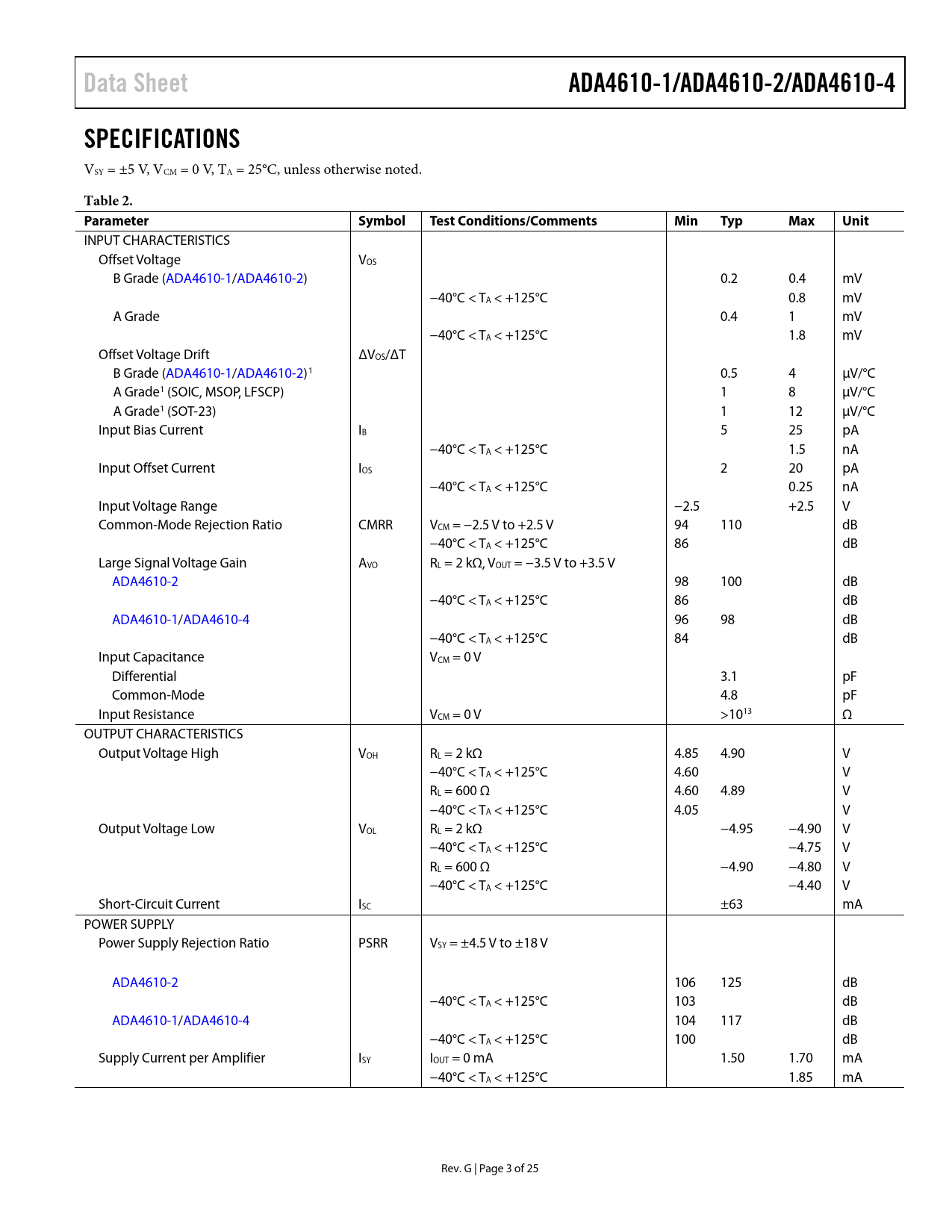

Data Sheet. ADA4610-1/ADA4610-2/ADA4610-4. SPECIFICATIONS. Table 2. Parameter. Symbol. Test Conditions/Comments. Min. Typ. Max. Unit
Text Version of Document
link to page 4 link to page 4 link to page 4
Data Sheet ADA4610-1/ADA4610-2/ADA4610-4 SPECIFICATIONS
VSY = ±5 V, VCM = 0 V, TA = 25°C, unless otherwise noted.
Table 2. Parameter Symbol Test Conditions/Comments Min Typ Max Unit
INPUT CHARACTERISTICS Offset Voltage VOS B Grade (ADA4610-1/ADA4610-2) 0.2 0.4 mV −40°C < TA < +125°C 0.8 mV A Grade 0.4 1 mV −40°C < TA < +125°C 1.8 mV Offset Voltage Drift ΔVOS/ΔT B Grade (ADA4610-1/ADA4610-2)1 0.5 4 µV/°C A Grade1 (SOIC, MSOP, LFSCP) 1 8 µV/°C A Grade1 (SOT-23) 1 12 µV/°C Input Bias Current IB 5 25 pA −40°C < TA < +125°C 1.5 nA Input Offset Current IOS 2 20 pA −40°C < TA < +125°C 0.25 nA Input Voltage Range −2.5 +2.5 V Common-Mode Rejection Ratio CMRR VCM = −2.5 V to +2.5 V 94 110 dB −40°C < TA < +125°C 86 dB Large Signal Voltage Gain AVO RL = 2 kΩ, VOUT = −3.5 V to +3.5 V ADA4610-2 98 100 dB −40°C < TA < +125°C 86 dB ADA4610-1/ADA4610-4 96 98 dB −40°C < TA < +125°C 84 dB Input Capacitance VCM = 0 V Differential 3.1 pF Common-Mode 4.8 pF Input Resistance VCM = 0 V >1013 Ω OUTPUT CHARACTERISTICS Output Voltage High VOH RL = 2 kΩ 4.85 4.90 V −40°C < TA < +125°C 4.60 V RL = 600 Ω 4.60 4.89 V −40°C < TA < +125°C 4.05 V Output Voltage Low VOL RL = 2 kΩ −4.95 −4.90 V −40°C < TA < +125°C −4.75 V RL = 600 Ω −4.90 −4.80 V −40°C < TA < +125°C −4.40 V Short-Circuit Current ISC ±63 mA POWER SUPPLY Power Supply Rejection Ratio PSRR VSY = ±4.5 V to ±18 V ADA4610-2 106 125 dB −40°C < TA < +125°C 103 dB ADA4610-1/ADA4610-4 104 117 dB −40°C < TA < +125°C 100 dB Supply Current per Amplifier ISY IOUT = 0 mA 1.50 1.70 mA −40°C < TA < +125°C 1.85 mA Rev. G | Page 3 of 25 Document Outline FEATURES APPLICATIONS PIN CONFIGURATION GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ELECTRICAL CHARACTERISTICS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS COMPARATIVE VOLTAGE AND VARIABLE VOLTAGE GRAPHS FUNCTIONAL DESCRIPTION APPLICATIONS INFORMATION INPUT OVERVOLTAGE PROTECTION PEAK DETECTOR CURRENT TO VOLTAGE (I TO V) CONVERSION APPLICATIONS Photodiode Circuits COMPARATOR OPERATION OUTLINE DIMENSIONS ORDERING GUIDE
