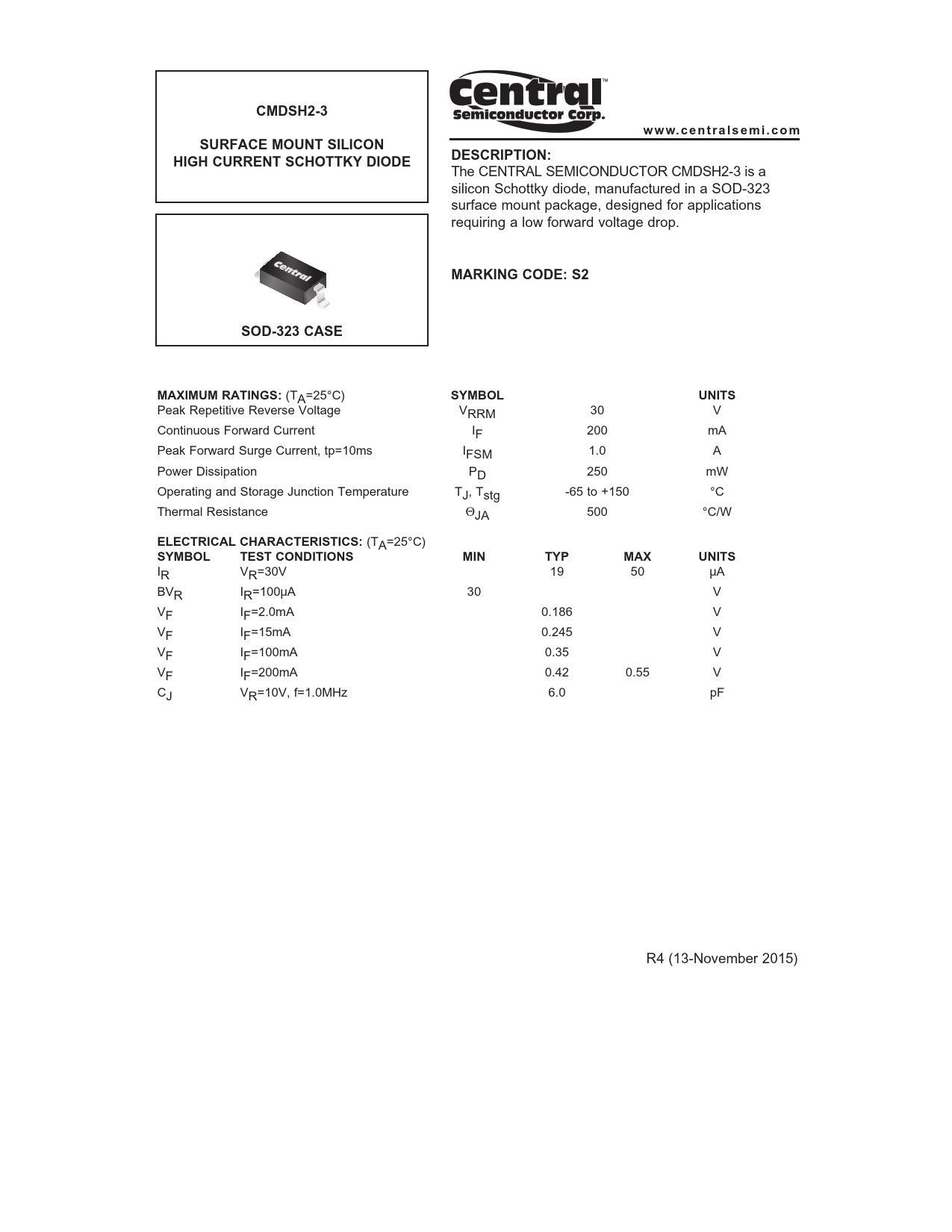

CMDSH2-3. w w w. c e n t r a l s e m i . c o m. SURFACE MOUNT SILICON. DESCRIPTION:. HIGH CURRENT SCHOTTKY DIODE
Text Version of Document
CMDSH2-3 w w w. c e n t r a l s e m i . c o m SURFACE MOUNT SILICON DESCRIPTION: HIGH CURRENT SCHOTTKY DIODE
The CENTRAL SEMICONDUCTOR CMDSH2-3 is a silicon Schottky diode, manufactured in a SOD-323 surface mount package, designed for applications requiring a low forward voltage drop.
MARKING CODE: S2 SOD-323 CASE MAXIMUM RATINGS:
(TA=25°C)
SYMBOL UNITS
Peak Repetitive Reverse Voltage VRRM 30 V Continuous Forward Current IF 200 mA Peak Forward Surge Current, tp=10ms IFSM 1.0 A Power Dissipation PD 250 mW Operating and Storage Junction Temperature TJ, Tstg -65 to +150 °C Thermal Resistance ΘJA 500 °C/W
ELECTRICAL CHARACTERISTICS:
(TA=25°C)
SYMBOL TEST CONDITIONS MIN TYP MAX UNITS
IR VR=30V 19 50 μA BVR IR=100μA 30 V VF IF=2.0mA 0.186 V VF IF=15mA 0.245 V VF IF=100mA 0.35 V VF IF=200mA 0.42 0.55 V CJ VR=10V, f=1.0MHz 6.0 pF R4 (13-November 2015)
The CENTRAL SEMICONDUCTOR CMDSH2-3 is a silicon Schottky diode, manufactured in a SOD-323 surface mount package, designed for applications requiring a low forward voltage drop.
MARKING CODE: S2 SOD-323 CASE MAXIMUM RATINGS:
(TA=25°C)
SYMBOL UNITS
Peak Repetitive Reverse Voltage VRRM 30 V Continuous Forward Current IF 200 mA Peak Forward Surge Current, tp=10ms IFSM 1.0 A Power Dissipation PD 250 mW Operating and Storage Junction Temperature TJ, Tstg -65 to +150 °C Thermal Resistance ΘJA 500 °C/W
ELECTRICAL CHARACTERISTICS:
(TA=25°C)
SYMBOL TEST CONDITIONS MIN TYP MAX UNITS
IR VR=30V 19 50 μA BVR IR=100μA 30 V VF IF=2.0mA 0.186 V VF IF=15mA 0.245 V VF IF=100mA 0.35 V VF IF=200mA 0.42 0.55 V CJ VR=10V, f=1.0MHz 6.0 pF R4 (13-November 2015)
