Atmel 8-bit AVR Microcontroller with 512/1024 Bytes In-System. Programmable Flash. ATtiny4 / ATtiny5 / ATtiny9 / ATiny10
Model Line for this Datasheet
Text Version of Document

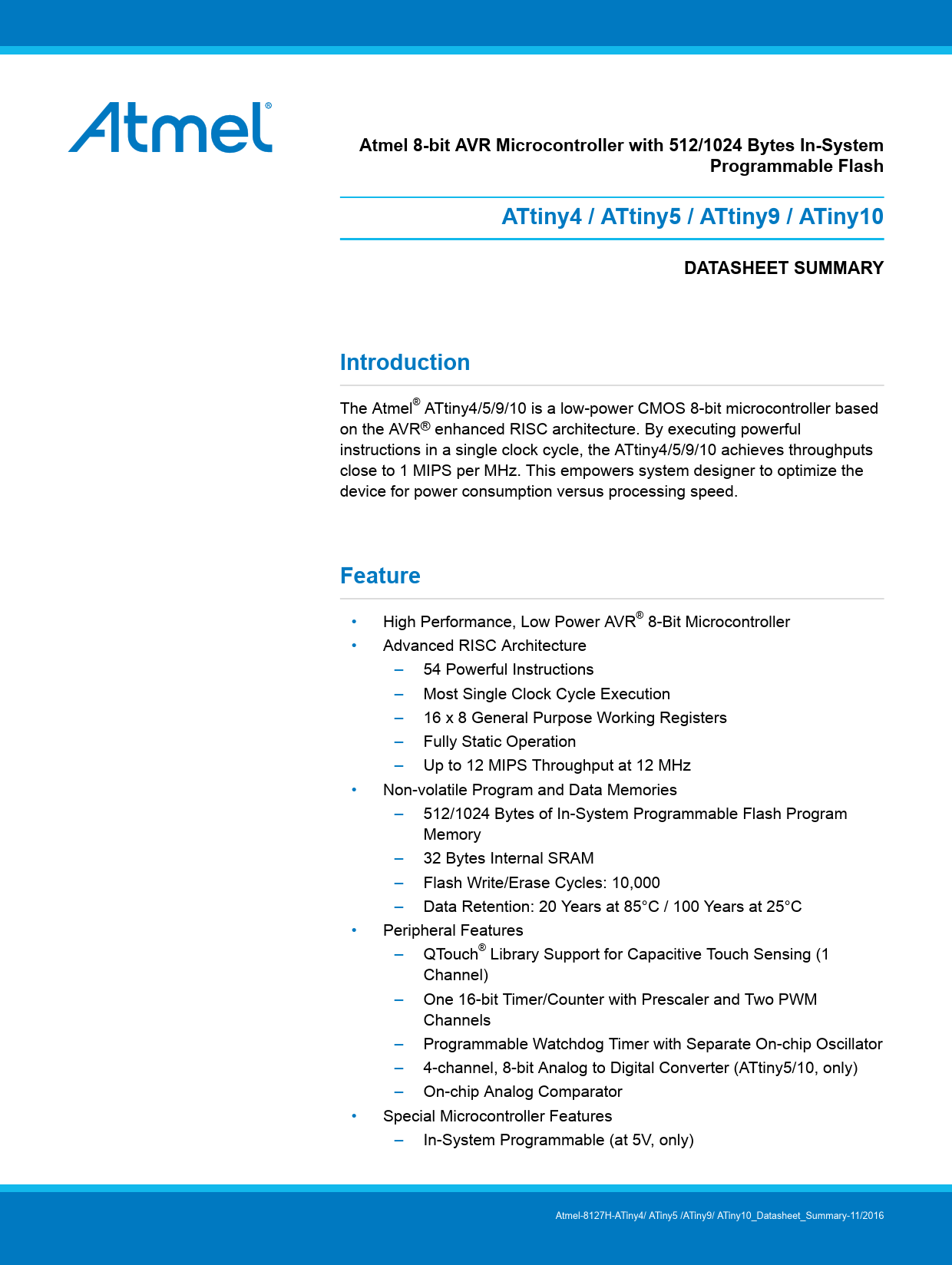

Atmel 8-bit AVR Microcontroller with 512/1024 Bytes In-System Programmable Flash ATtiny4 / ATtiny5 / ATtiny9 / ATiny10 DATASHEET SUMMARY Introduction
The Atmel® ATtiny4/5/9/10 is a low-power CMOS 8-bit microcontroller based on the AVR® enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the ATtiny4/5/9/10 achieves throughputs close to 1 MIPS per MHz. This empowers system designer to optimize the device for power consumption versus processing speed.
Feature
• High Performance, Low Power AVR® 8-Bit Microcontroller • Advanced RISC Architecture – 54 Powerful Instructions – Most Single Clock Cycle Execution – 16 x 8 General Purpose Working Registers – Fully Static Operation – Up to 12 MIPS Throughput at 12 MHz • Non-volatile Program and Data Memories – 512/1024 Bytes of In-System Programmable Flash Program Memory – 32 Bytes Internal SRAM – Flash Write/Erase Cycles: 10,000 – Data Retention: 20 Years at 85°C / 100 Years at 25°C • Peripheral Features – QTouch® Library Support for Capacitive Touch Sensing (1 Channel) – One 16-bit Timer/Counter with Prescaler and Two PWM Channels – Programmable Watchdog Timer with Separate On-chip Oscillator – 4-channel, 8-bit Analog to Digital Converter (ATtiny5/10, only) – On-chip Analog Comparator • Special Microcontroller Features – In-System Programmable (at 5V, only) Atmel-8127H-ATiny4/ ATiny5 /ATiny9/ ATiny10_Datasheet_Summary-11/2016 Document Outline Introduction Feature Table of Contents 1. Pin Configurations 1.1. Pin Descriptions 1.1.1. VCC 1.1.2. GND 1.1.3. Port B (PB[3:0]) 1.1.4. RESET 2. Ordering Information 2.1. ATtiny4 2.2. ATtiny5 2.3. ATtiny9 2.4. ATtiny10 3. Overview 3.1. Block Diagram 3.1.1. Description 3.2. Comparison of ATtiny4, ATtiny5, ATtiny9 and ATtiny10 4. General Information 4.1. Resources 4.2. Data Retention 4.3. About Code Examples 4.4. Capacitive Touch Sensing 4.4.1. QTouch Library 5. Packaging Information 5.1. 6ST1 5.2. 8MA4 6. Errata 6.1. ATtiny4 6.1.1. Rev. E 6.1.2. Rev. D 6.1.3. Rev. A – C 6.2. ATtiny5 6.2.1. Rev. E 6.2.2. Rev. D 6.2.3. Rev. A – C 6.3. ATtiny9 6.3.1. Rev. E 6.3.2. Rev. D 6.3.3. Rev. A – C 6.4. ATtiny10 6.4.1. Rev. E 6.4.2. Rev. C – D 6.4.3. Rev. A – B
