| Manufacturer | Analog Devices |
| Description | Broadband Ultra Low Distortion 7-Bit Digitally Controlled VGA |
| Pages / Page | 32 / 5 — AC ELECTRICAL CHARACTERISTICS (Timing Diagram). Timing Diagram. DC … |
| File Format / Size | PDF / 619 Kb |
| Document Language | English |

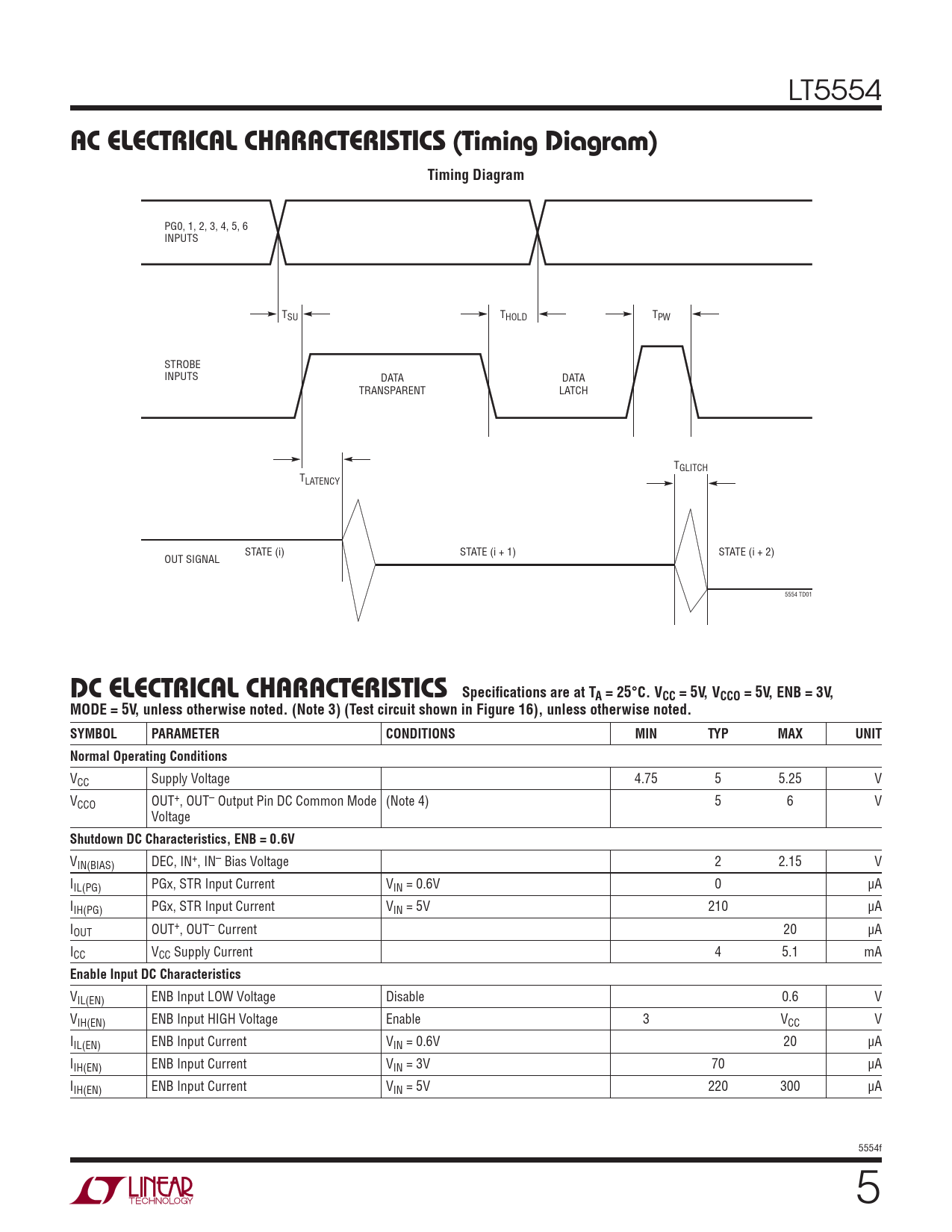

AC ELECTRICAL CHARACTERISTICS (Timing Diagram). Timing Diagram. DC ELECTRICAL CHARACTERISTICS
Model Line for this Datasheet
Text Version of Document
LT5554
AC ELECTRICAL CHARACTERISTICS (Timing Diagram) Timing Diagram
PG0, 1, 2, 3, 4, 5, 6 INPUTS TSU THOLD TPW STROBE INPUTS DATA DATA TRANSPARENT LATCH TGLITCH TLATENCY STATE (i) STATE (i + 1) STATE (i + 2) OUT SIGNAL 5554 TD01
DC ELECTRICAL CHARACTERISTICS Specifi cations are at TA = 25°C. VCC = 5V, VCCO = 5V, ENB = 3V, MODE = 5V, unless otherwise noted. (Note 3) (Test circuit shown in Figure 16), unless otherwise noted. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNIT Normal Operating Conditions
VCC Supply Voltage 4.75 5 5.25 V VCCO OUT+, OUT– Output Pin DC Common Mode (Note 4) 5 6 V Voltage
Shutdown DC Characteristics, ENB = 0.6V
VIN(BIAS) DEC, IN+, IN– Bias Voltage 2 2.15 V IIL(PG) PGx, STR Input Current VIN = 0.6V 0 μA IIH(PG) PGx, STR Input Current VIN = 5V 210 μA IOUT OUT+, OUT– Current 20 μA ICC VCC Supply Current 4 5.1 mA
Enable Input DC Characteristics
VIL(EN) ENB Input LOW Voltage Disable 0.6 V VIH(EN) ENB Input HIGH Voltage Enable 3 VCC V IIL(EN) ENB Input Current VIN = 0.6V 20 μA IIH(EN) ENB Input Current VIN = 3V 70 μA IIH(EN) ENB Input Current VIN = 5V 220 300 μA 5554f 5
