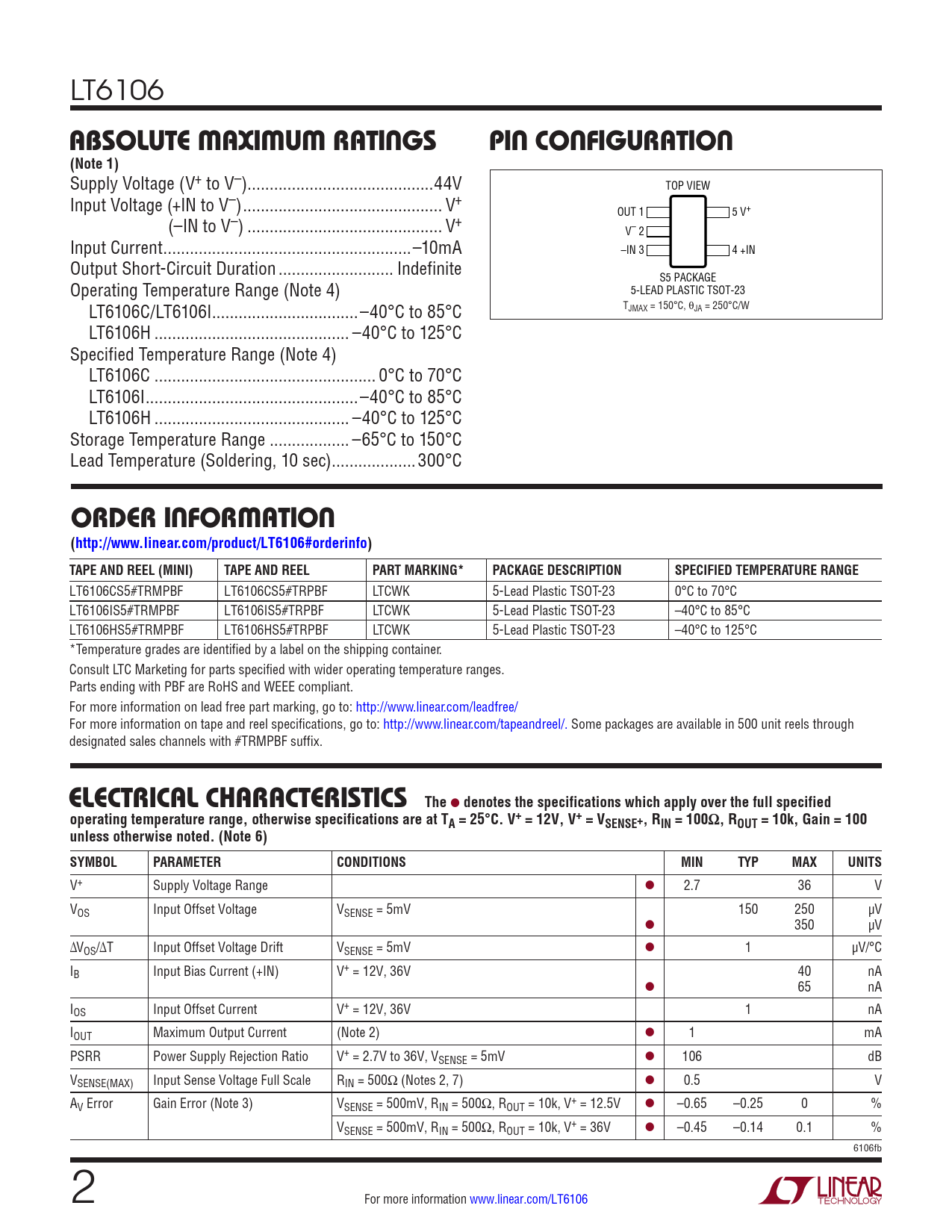

LT6106
ABSOLUTE MAXIMUM RATINGS PIN CONFIGURATION (Note 1)
Supply Voltage (V+ to V–) ..44V TOP VIEW Input Voltage (+IN to V–) ... V+ OUT 1 5 V+ (–IN to V–) .. V+ V– 2 Input Current ..–10mA –IN 3 4 +IN Output Short-Circuit Duration .. Indefinite S5 PACKAGE Operating Temperature Range (Note 4) 5-LEAD PLASTIC TSOT-23
LT6106C/LT6106I ...–40°C to 85°C TJMAX = 150°C, θJA = 250°C/W LT6106H .. –40°C to 125°C Specified Temperature Range (Note 4) LT6106C .. 0°C to 70°C LT6106I ..–40°C to 85°C LT6106H .. –40°C to 125°C Storage Temperature Range .. –65°C to 150°C Lead Temperature (Soldering, 10 sec) ...300°C
ORDER INFORMATION (http://www.linear.com/product/LT6106#orderinfo ) TAPE AND REEL (MINI) TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION SPECIFIED TEMPERATURE RANGE
LT6106CS5#TRMPBF LT6106CS5#TRPBF LTCWK 5-Lead Plastic TSOT-23 0°C to 70°C LT6106IS5#TRMPBF LT6106IS5#TRPBF LTCWK 5-Lead Plastic TSOT-23 –40°C to 85°C LT6106HS5#TRMPBF LT6106HS5#TRPBF LTCWK 5-Lead Plastic TSOT-23 –40°C to 125°C *Temperature grades are identified by a label on the shipping container. Consult LTC Marketing for parts specified with wider operating temperature ranges. Parts ending with PBF are RoHS and WEEE compliant. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/. Some packages are available in 500 unit reels through designated sales channels with #TRMPBF suffix.
ELECTRICAL CHARACTERISTICS The
l
denotes the specifications which apply over the full specified operating temperature range, otherwise specifications are at TA = 25°C. V+ = 12V, V+ = VSENSE+, RIN = 100Ω, ROUT = 10k, Gain = 100 unless otherwise noted. (Note 6) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
V+ Supply Voltage Range l 2.7 36 V VOS Input Offset Voltage VSENSE = 5mV 150 250 µV l 350 µV ΔVOS/ΔT Input Offset Voltage Drift VSENSE = 5mV l 1 µV/°C IB Input Bias Current (+IN) V+ = 12V, 36V 40 nA l 65 nA IOS Input Offset Current V+ = 12V, 36V 1 nA IOUT Maximum Output Current (Note 2) l 1 mA PSRR Power Supply Rejection Ratio V+ = 2.7V to 36V, VSENSE = 5mV l 106 dB VSENSE(MAX) Input Sense Voltage Full Scale RIN = 500Ω (Notes 2, 7) l 0.5 V AV Error Gain Error (Note 3) VSENSE = 500mV, RIN = 500Ω, ROUT = 10k, V+ = 12.5V l –0.65 –0.25 0 % VSENSE = 500mV, RIN = 500Ω, ROUT = 10k, V+ = 36V l –0.45 –0.14 0.1 % 6106fb 2 For more information www.linear.com/LT6106
