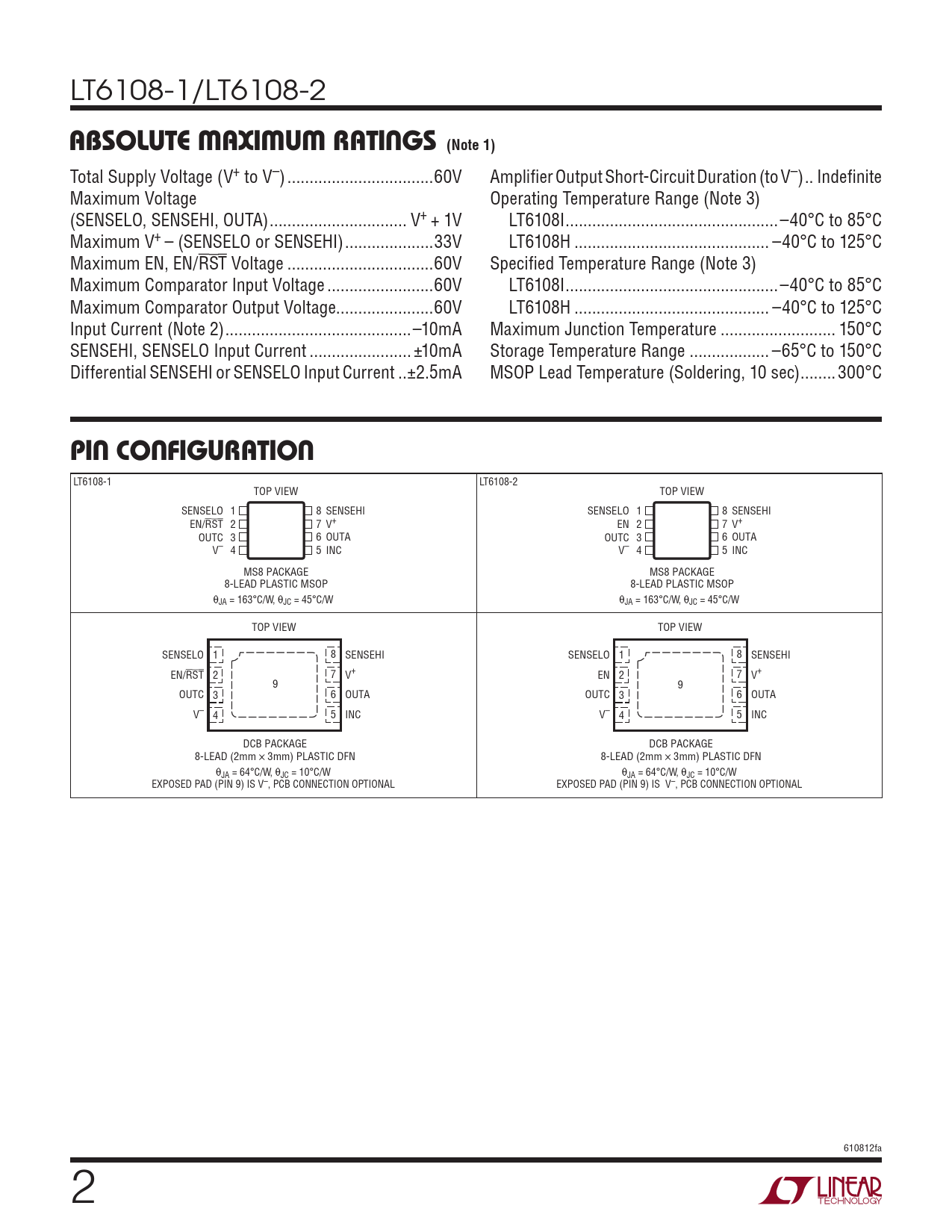

LT6108-1/LT6108-2
ABSOLUTE MAXIMUM RATINGS (Note 1)
Total Supply Voltage (V+ to V–) ...60V Amplifier Output Short-Circuit Duration (to V–) .. Indefinite Maximum Voltage Operating Temperature Range (Note 3) (SENSELO, SENSEHI, OUTA) ... V+ + 1V LT6108I ..–40°C to 85°C Maximum V+ – (SENSELO or SENSEHI) ..33V LT6108H .. –40°C to 125°C Maximum EN, EN/RST Voltage ...60V Specified Temperature Range (Note 3) Maximum Comparator Input Voltage ..60V LT6108I ..–40°C to 85°C Maximum Comparator Output Voltage..60V LT6108H .. –40°C to 125°C Input Current (Note 2) ..–10mA Maximum Junction Temperature .. 150°C SENSEHI, SENSELO Input Current ... ±10mA Storage Temperature Range .. –65°C to 150°C Differential SENSEHI or SENSELO Input Current ..±2.5mA MSOP Lead Temperature (Soldering, 10 sec) ..300°C
PIN CONFIGURATION
LT6108-1 LT6108-2 TOP VIEW TOP VIEW SENSELO 1 8 SENSEHI SENSELO 1 8 SENSEHI EN/RST 2 7 V+ EN 2 7 V+ OUTC 3 6 OUTA OUTC 3 6 OUTA V– 4 5 INC V– 4 5 INC MS8 PACKAGE MS8 PACKAGE 8-LEAD PLASTIC MSOP 8-LEAD PLASTIC MSOP θJA = 163°C/W, θJC = 45°C/W θJA = 163°C/W, θJC = 45°C/W TOP VIEW TOP VIEW SENSELO 1 8 SENSEHI SENSELO 1 8 SENSEHI EN/RST 2 7 V+ EN 2 7 V+ 9 9 OUTC 3 6 OUTA OUTC 3 6 OUTA V– 4 5 INC V– 4 5 INC DCB PACKAGE DCB PACKAGE 8-LEAD (2mm × 3mm) PLASTIC DFN 8-LEAD (2mm × 3mm) PLASTIC DFN θJA = 64°C/W, θJC = 10°C/W θJA = 64°C/W, θJC = 10°C/W EXPOSED PAD (PIN 9) IS V–, PCB CONNECTION OPTIONAL EXPOSED PAD (PIN 9) IS V–, PCB CONNECTION OPTIONAL 610812fa 2 Document Outline Features Description Applications Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagrams Applications Information Typical Applications Package Description Revision History Typical Application Related Parts
