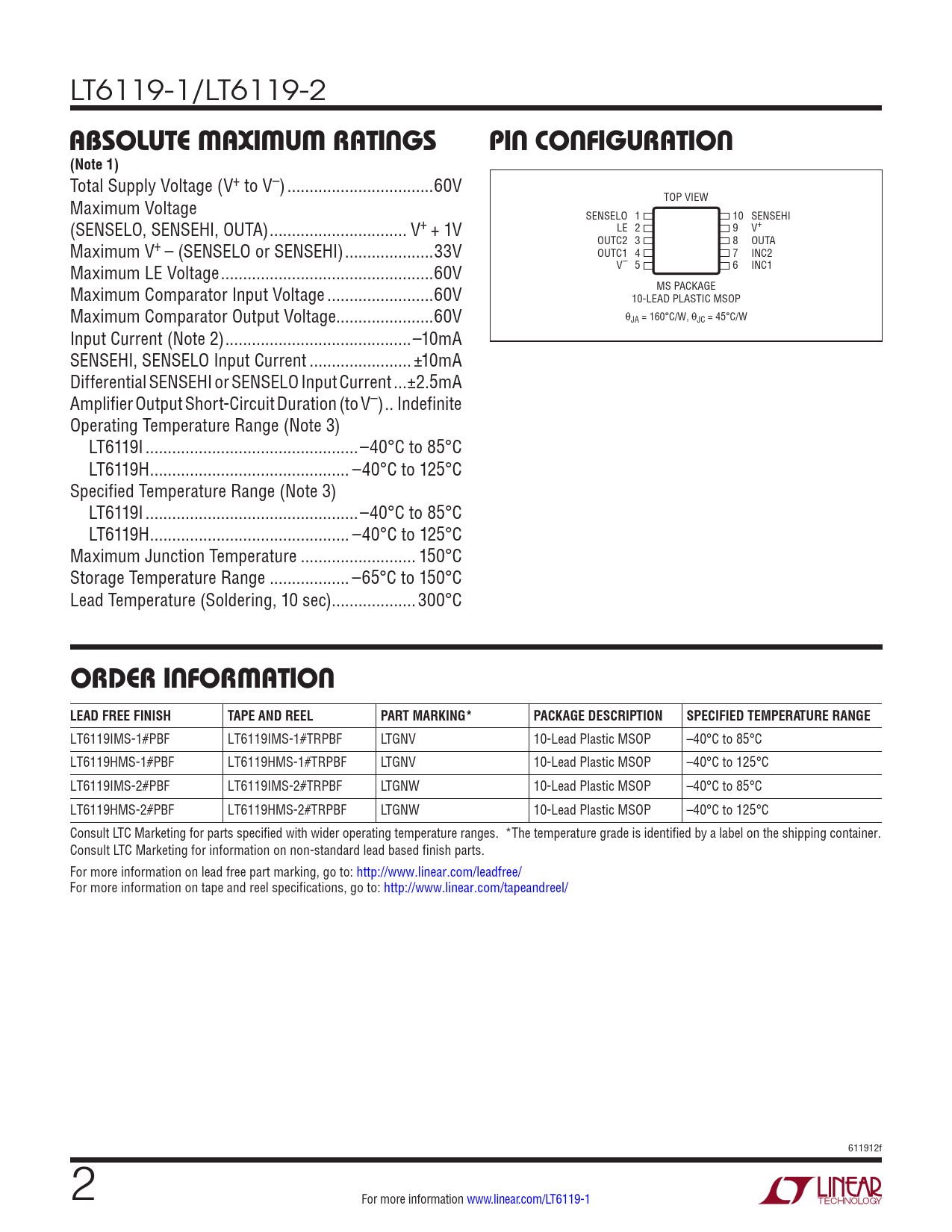

LT6119-1/LT6119-2
absoluTe MaxiMuM raTings pin conFiguraTion (Note 1)
Total Supply Voltage (V+ to V–) ...60V Maximum Voltage TOP VIEW SENSELO 1 10 SENSEHI (SENSELO, SENSEHI, OUTA) ... V+ + 1V LE 2 9 V+ Maximum V+ – (SENSELO or SENSEHI) ..33V OUTC2 3 8 OUTA OUTC1 4 7 INC2 Maximum LE Voltage ..60V V– 5 6 INC1 Maximum Comparator Input Voltage ..60V MS PACKAGE 10-LEAD PLASTIC MSOP Maximum Comparator Output Voltage..60V θJA = 160°C/W, θJC = 45°C/W Input Current (Note 2) ..–10mA SENSEHI, SENSELO Input Current ... ±10mA Differential SENSEHI or SENSELO Input Current ...±2.5mA Amplifier Output Short-Circuit Duration (to V–) .. Indefinite Operating Temperature Range (Note 3) LT6119I ..–40°C to 85°C LT6119H ... –40°C to 125°C Specified Temperature Range (Note 3) LT6119I ..–40°C to 85°C LT6119H ... –40°C to 125°C Maximum Junction Temperature .. 150°C Storage Temperature Range .. –65°C to 150°C Lead Temperature (Soldering, 10 sec) ...300°C
orDer inForMaTion LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION SPECIFIED TEMPERATURE RANGE
LT6119IMS-1#PBF LT6119IMS-1#TRPBF LTGNV 10-Lead Plastic MSOP –40°C to 85°C LT6119HMS-1#PBF LT6119HMS-1#TRPBF LTGNV 10-Lead Plastic MSOP –40°C to 125°C LT6119IMS-2#PBF LT6119IMS-2#TRPBF LTGNW 10-Lead Plastic MSOP –40°C to 85°C LT6119HMS-2#PBF LT6119HMS-2#TRPBF LTGNW 10-Lead Plastic MSOP –40°C to 125°C Consult LTC Marketing for parts specified with wider operating temperature ranges. *The temperature grade is identified by a label on the shipping container. Consult LTC Marketing for information on non-standard lead based finish parts. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/ 611912f 2 For more information www.linear.com/LT6119-1 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagrams Applications Information Typical Applications Package Description Typical Application Related Parts
