Typical perForMance characTerisTics. LTC1444/LTC1445. Hysteresis Control. Supply Current vs Supply Voltage
Model Line for this Datasheet
- LTC1443CDHD#PBF LTC1443CDHD#PBF LTC1443CDHD#TRPBF LTC1443CDHD#TRPBF LTC1443CN#PBF LTC1443CN#PBF LTC1443CS#PBF LTC1443CS#PBF LTC1443CS#TRPBF LTC1443CS#TRPBF LTC1443IDHD#PBF LTC1443IDHD#PBF LTC1443IDHD#TRPBF LTC1443IDHD#TRPBF LTC1443IN#PBF LTC1443IN#PBF LTC1443IS#PBF LTC1443IS#PBF LTC1443IS#TRPBF LTC1443IS#TRPBF
- LTC1444CDHD#PBF LTC1444CDHD#PBF LTC1444CDHD#TRPBF LTC1444CDHD#TRPBF LTC1444CN#PBF LTC1444CN#PBF LTC1444CS#PBF LTC1444CS#PBF LTC1444CS#TRPBF LTC1444CS#TRPBF LTC1444IDHD#PBF LTC1444IDHD#PBF LTC1444IDHD#TRPBF LTC1444IDHD#TRPBF LTC1444IN#PBF LTC1444IN#PBF LTC1444IS#PBF LTC1444IS#PBF LTC1444IS#TRPBF LTC1444IS#TRPBF
- LTC1445CDHD#PBF LTC1445CDHD#PBF LTC1445CDHD#TRPBF LTC1445CDHD#TRPBF LTC1445CN#PBF LTC1445CN#PBF LTC1445CS#PBF LTC1445CS#PBF LTC1445CS#TRPBF LTC1445CS#TRPBF LTC1445IDHD#PBF LTC1445IDHD#PBF LTC1445IDHD#TRPBF LTC1445IDHD#TRPBF LTC1445IN#PBF LTC1445IN#PBF LTC1445IS#PBF LTC1445IS#PBF LTC1445IS#TRPBF LTC1445IS#TRPBF
Text Version of Document
LTC1443/LTC1444/LTC1445

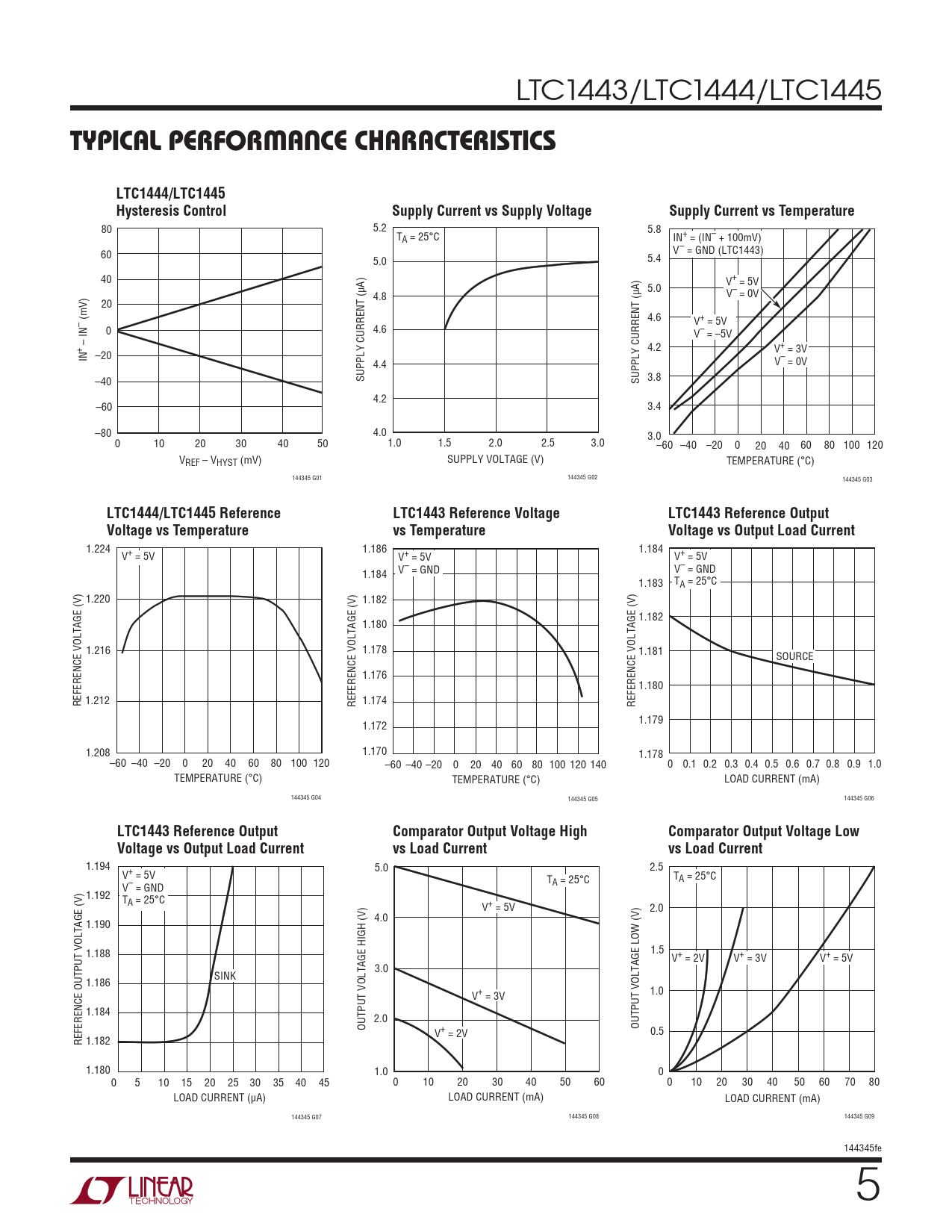

Typical perForMance characTerisTics LTC1444/LTC1445 Hysteresis Control Supply Current vs Supply Voltage Supply Current vs Temperature
