Datasheet ADA4077-1, ADA4077-2, ADA4077-4 (Analog Devices) - 4
| Manufacturer | Analog Devices |
| Description | 4 MHz, 7 nV/√Hz, Low Offset and Drift, High Precision Single Amplifier |
| Pages / Page | 27 / 4 — ADA4077-1/ADA4077-2/ADA4077-4. Data Sheet. Parameter. Symbol. Test … |
| Revision | E |
| File Format / Size | PDF / 987 Kb |
| Document Language | English |
ADA4077-1/ADA4077-2/ADA4077-4. Data Sheet. Parameter. Symbol. Test Conditions/Comments. Min. Typ. Max Unit
Model Line for this Datasheet
- ADA4077-1ARMZ ADA4077-1ARMZ-R7 ADA4077-1ARMZ-RL ADA4077-1ARZ ADA4077-1ARZ-R7 ADA4077-1ARZ-RL ADA4077-1BRZ ADA4077-1BRZ-R7 ADA4077-1BRZ-RL
Text Version of Document

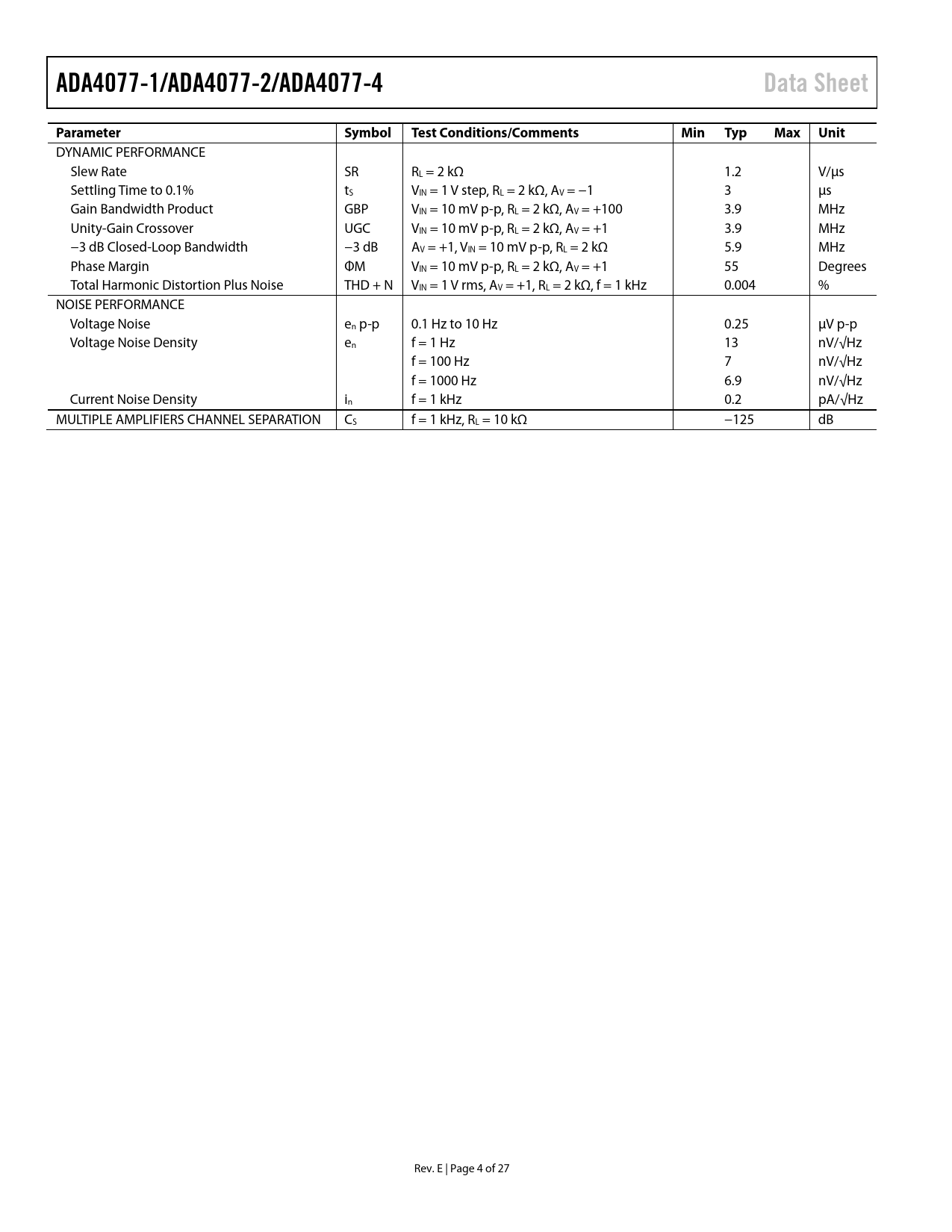

ADA4077-1/ADA4077-2/ADA4077-4 Data Sheet Parameter Symbol Test Conditions/Comments Min Typ Max Unit
DYNAMIC PERFORMANCE Slew Rate SR RL = 2 kΩ 1.2 V/µs Settling Time to 0.1% tS VIN = 1 V step, RL = 2 kΩ, AV = −1 3 µs Gain Bandwidth Product GBP VIN = 10 mV p-p, RL = 2 kΩ, AV = +100 3.9 MHz Unity-Gain Crossover UGC VIN = 10 mV p-p, RL = 2 kΩ, AV = +1 3.9 MHz −3 dB Closed-Loop Bandwidth −3 dB AV = +1, VIN = 10 mV p-p, RL = 2 kΩ 5.9 MHz Phase Margin ΦM VIN = 10 mV p-p, RL = 2 kΩ, AV = +1 55 Degrees Total Harmonic Distortion Plus Noise THD + N VIN = 1 V rms, AV = +1, RL = 2 kΩ, f = 1 kHz 0.004 % NOISE PERFORMANCE Voltage Noise en p-p 0.1 Hz to 10 Hz 0.25 µV p-p Voltage Noise Density en f = 1 Hz 13 nV/√Hz f = 100 Hz 7 nV/√Hz f = 1000 Hz 6.9 nV/√Hz Current Noise Density in f = 1 kHz 0.2 pA/√Hz MULTIPLE AMPLIFIERS CHANNEL SEPARATION CS f = 1 kHz, RL = 10 kΩ −125 dB Rev. E | Page 4 of 27 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION PIN CONNECTION DIAGRAMS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ELECTRICAL CHARACTERISTICS, ±5 V ELECTRICAL CHARACTERISTICS, ±15 V ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUIT THEORY OF OPERATION APPLICATIONS INFORMATION OUTPUT PHASE REVERSAL LOW POWER LINEARIZED RTD PROPER BOARD LAYOUT LONG-TERM DRIFT TEMPERATURE HYSTERESIS OUTLINE DIMENSIONS ORDERING GUIDE
DYNAMIC PERFORMANCE Slew Rate SR RL = 2 kΩ 1.2 V/µs Settling Time to 0.1% tS VIN = 1 V step, RL = 2 kΩ, AV = −1 3 µs Gain Bandwidth Product GBP VIN = 10 mV p-p, RL = 2 kΩ, AV = +100 3.9 MHz Unity-Gain Crossover UGC VIN = 10 mV p-p, RL = 2 kΩ, AV = +1 3.9 MHz −3 dB Closed-Loop Bandwidth −3 dB AV = +1, VIN = 10 mV p-p, RL = 2 kΩ 5.9 MHz Phase Margin ΦM VIN = 10 mV p-p, RL = 2 kΩ, AV = +1 55 Degrees Total Harmonic Distortion Plus Noise THD + N VIN = 1 V rms, AV = +1, RL = 2 kΩ, f = 1 kHz 0.004 % NOISE PERFORMANCE Voltage Noise en p-p 0.1 Hz to 10 Hz 0.25 µV p-p Voltage Noise Density en f = 1 Hz 13 nV/√Hz f = 100 Hz 7 nV/√Hz f = 1000 Hz 6.9 nV/√Hz Current Noise Density in f = 1 kHz 0.2 pA/√Hz MULTIPLE AMPLIFIERS CHANNEL SEPARATION CS f = 1 kHz, RL = 10 kΩ −125 dB Rev. E | Page 4 of 27 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION PIN CONNECTION DIAGRAMS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ELECTRICAL CHARACTERISTICS, ±5 V ELECTRICAL CHARACTERISTICS, ±15 V ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUIT THEORY OF OPERATION APPLICATIONS INFORMATION OUTPUT PHASE REVERSAL LOW POWER LINEARIZED RTD PROPER BOARD LAYOUT LONG-TERM DRIFT TEMPERATURE HYSTERESIS OUTLINE DIMENSIONS ORDERING GUIDE
