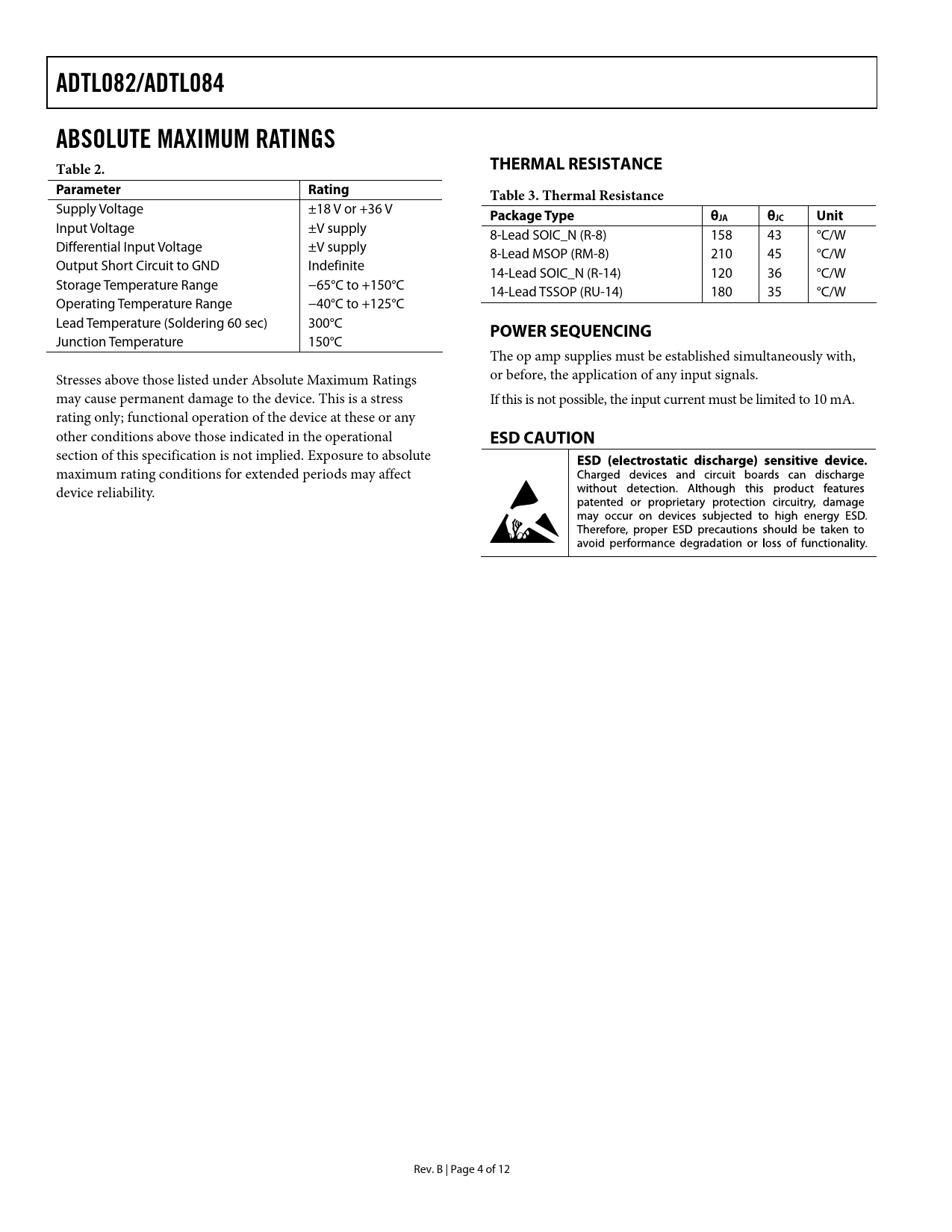

ADTL082/ADTL084. ABSOLUTE MAXIMUM RATINGS Table 2. THERMAL RESISTANCE. Parameter. Rating. Table 3. Thermal Resistance. Package Type
Model Line for this Datasheet
Text Version of Document
ADTL082/ADTL084 ABSOLUTE MAXIMUM RATINGS Table 2. THERMAL RESISTANCE Parameter Rating Table 3. Thermal Resistance
Supply Voltage ±18 V or +36 V
Package Type θJA θJC Unit
Input Voltage ±V supply 8-Lead SOIC_N (R-8) 158 43 °C/W Differential Input Voltage ±V supply 8-Lead MSOP (RM-8) 210 45 °C/W Output Short Circuit to GND Indefinite 14-Lead SOIC_N (R-14) 120 36 °C/W Storage Temperature Range −65°C to +150°C 14-Lead TSSOP (RU-14) 180 35 °C/W Operating Temperature Range −40°C to +125°C Lead Temperature (Soldering 60 sec) 300°C
POWER SEQUENCING
Junction Temperature 150°C The op amp supplies must be established simultaneously with, Stresses above those listed under Absolute Maximum Ratings or before, the application of any input signals. may cause permanent damage to the device. This is a stress If this is not possible, the input current must be limited to 10 mA. rating only; functional operation of the device at these or any other conditions above those indicated in the operational
ESD CAUTION
section of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability. Rev. B | Page 4 of 12 Document Outline FEATURES APPLICATIONS PIN CONFIGURATIONS GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE POWER SEQUENCING ESD CAUTION TYPICAL PERFORMANCE CHARACTERISTICS OUTLINE DIMENSIONS ORDERING GUIDE
