Datasheet ADA4853-1, ADA4853-2, ADA4853-3 (Analog Devices) - 6
| Manufacturer | Analog Devices |
| Description | Low Power, Rail-to-Rail Output, Video Op Amps with Ultralow Power |
| Pages / Page | 20 / 6 — ADA4853-1/ADA4853-2/ADA4853-3. Data Sheet. Parameter. Conditions. Min. … |
| Revision | G |
| File Format / Size | PDF / 540 Kb |
| Document Language | English |

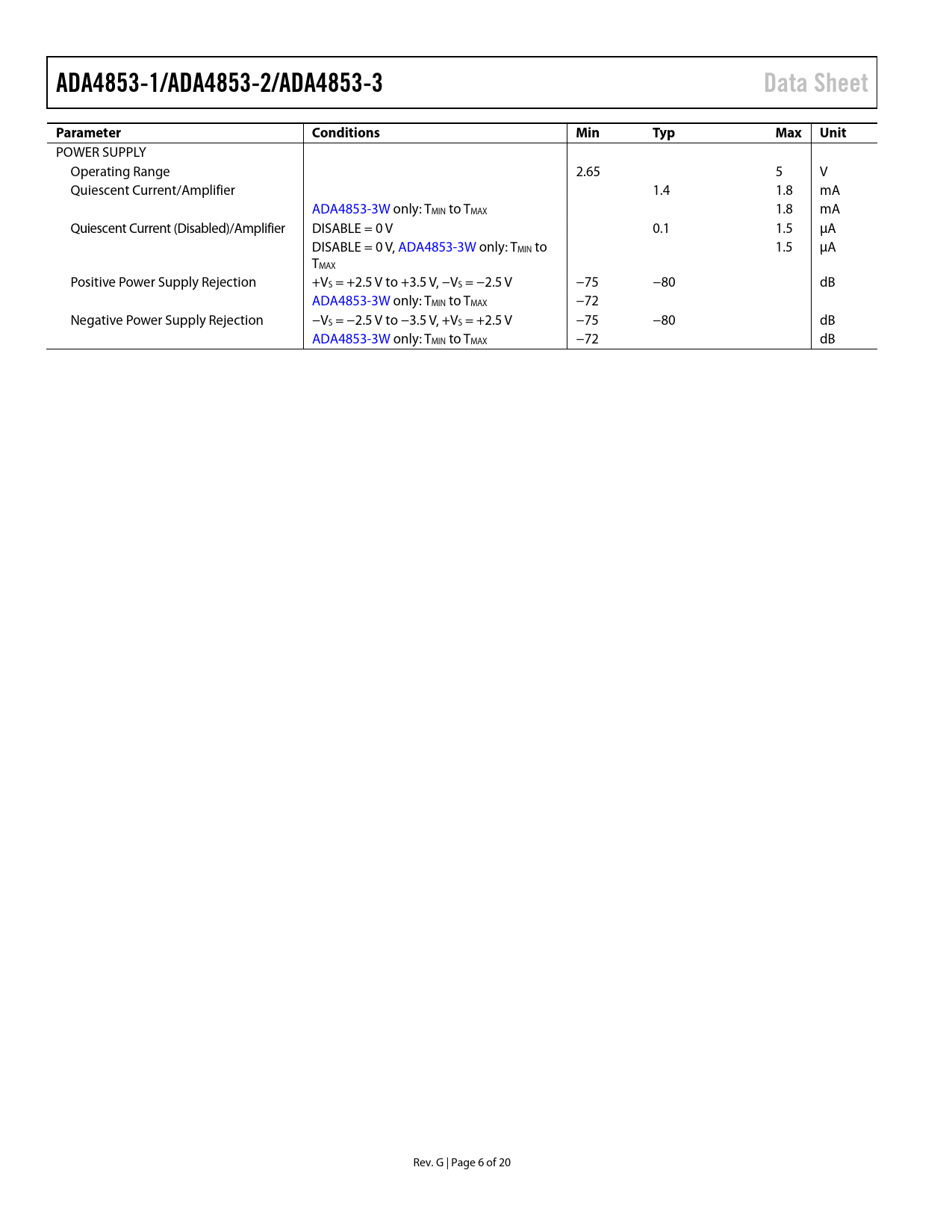

ADA4853-1/ADA4853-2/ADA4853-3. Data Sheet. Parameter. Conditions. Min. Typ. Max Unit
Model Line for this Datasheet
Text Version of Document
ADA4853-1/ADA4853-2/ADA4853-3 Data Sheet Parameter Conditions Min Typ Max Unit
POWER SUPPLY Operating Range 2.65 5 V Quiescent Current/Amplifier 1.4 1.8 mA ADA4853-3W only: TMIN to TMAX 1.8 mA Quiescent Current (Disabled)/Amplifier DISABLE = 0 V 0.1 1.5 µA DISABLE = 0 V, ADA4853-3W only: TMIN to 1.5 µA TMAX Positive Power Supply Rejection +VS = +2.5 V to +3.5 V, −VS = −2.5 V −75 −80 dB ADA4853-3W only: TMIN to TMAX −72 Negative Power Supply Rejection −VS = −2.5 V to −3.5 V, +VS = +2.5 V −75 −80 dB ADA4853-3W only: TMIN to TMAX −72 dB Rev. G | Page 6 of 20 Document Outline FEATURES APPLICATIONS PIN CONFIGURATIONS GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS SPECIFICATIONS WITH 3 V SUPPLY SPECIFICATIONS WITH 5 V SUPPLY ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE Maximum Power Dissipation ESD CAUTION TYPICAL PERFORMANCE CHARACTERISTICS CIRCUIT DESCRIPTION HEADROOM CONSIDERATIONS OVERLOAD BEHAVIOR AND RECOVERY Input APPLICATIONS INFORMATION SINGLE-SUPPLY VIDEO AMPLIFIER POWER SUPPLY BYPASSING LAYOUT OUTLINE DIMENSIONS ORDERING GUIDE AUTOMOTIVE PRODUCTS
POWER SUPPLY Operating Range 2.65 5 V Quiescent Current/Amplifier 1.4 1.8 mA ADA4853-3W only: TMIN to TMAX 1.8 mA Quiescent Current (Disabled)/Amplifier DISABLE = 0 V 0.1 1.5 µA DISABLE = 0 V, ADA4853-3W only: TMIN to 1.5 µA TMAX Positive Power Supply Rejection +VS = +2.5 V to +3.5 V, −VS = −2.5 V −75 −80 dB ADA4853-3W only: TMIN to TMAX −72 Negative Power Supply Rejection −VS = −2.5 V to −3.5 V, +VS = +2.5 V −75 −80 dB ADA4853-3W only: TMIN to TMAX −72 dB Rev. G | Page 6 of 20 Document Outline FEATURES APPLICATIONS PIN CONFIGURATIONS GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS SPECIFICATIONS WITH 3 V SUPPLY SPECIFICATIONS WITH 5 V SUPPLY ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE Maximum Power Dissipation ESD CAUTION TYPICAL PERFORMANCE CHARACTERISTICS CIRCUIT DESCRIPTION HEADROOM CONSIDERATIONS OVERLOAD BEHAVIOR AND RECOVERY Input APPLICATIONS INFORMATION SINGLE-SUPPLY VIDEO AMPLIFIER POWER SUPPLY BYPASSING LAYOUT OUTLINE DIMENSIONS ORDERING GUIDE AUTOMOTIVE PRODUCTS
