| Manufacturer | Analog Devices |
| Description | Precision, Very Low Noise, Low Input Bias Current, Wide Bandwidth JFET Quad Operational Amplifier |
| Pages / Page | 20 / 6 — AD8510/AD8512/AD8513. Date Sheet. ABSOLUTE MAXIMUM RATINGS Table 3. Table … |
| Revision | K |
| File Format / Size | PDF / 396 Kb |
| Document Language | English |

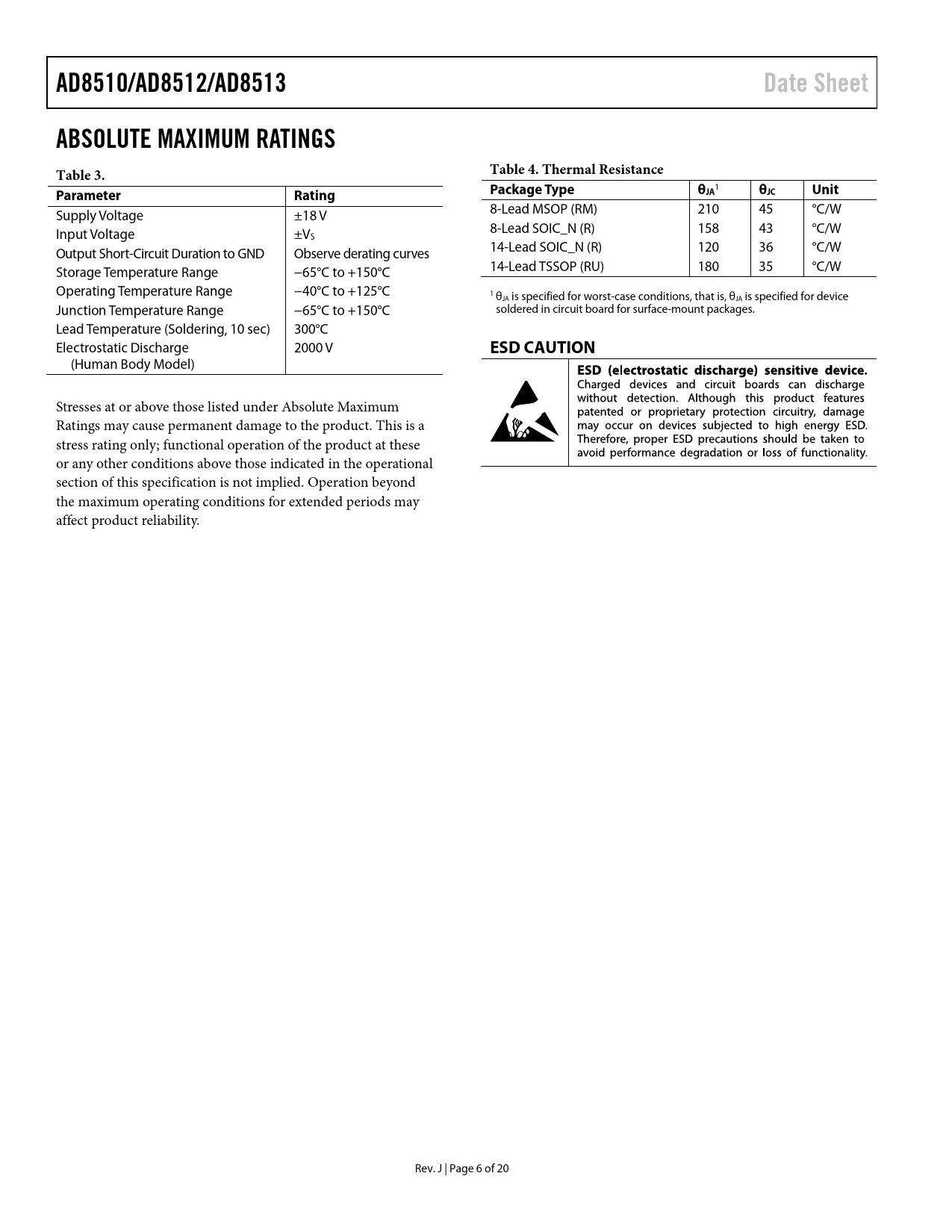

AD8510/AD8512/AD8513. Date Sheet. ABSOLUTE MAXIMUM RATINGS Table 3. Table 4. Thermal Resistance. Parameter. Rating. Package Type. θJA
Model Line for this Datasheet
AD8510
Text Version of Document
AD8510/AD8512/AD8513 Date Sheet ABSOLUTE MAXIMUM RATINGS Table 3. Table 4. Thermal Resistance
1
Parameter Rating Package Type θJA θJC Unit
Supply Voltage ±18 V 8-Lead MSOP (RM) 210 45 °C/W Input Voltage ±V 8-Lead SOIC_N (R) 158 43 °C/W S Output Short-Circuit Duration to GND Observe derating curves 14-Lead SOIC_N (R) 120 36 °C/W Storage Temperature Range −65°C to +150°C 14-Lead TSSOP (RU) 180 35 °C/W Operating Temperature Range −40°C to +125°C 1 θJA is specified for worst-case conditions, that is, θJA is specified for device Junction Temperature Range −65°C to +150°C soldered in circuit board for surface-mount packages. Lead Temperature (Soldering, 10 sec) 300°C Electrostatic Discharge 2000 V
