Datasheet AD9631, AD9632 (Analog Devices) - 4
| Manufacturer | Analog Devices |
| Description | Ultralow Distortion, Wide Bandwidth Voltage Feedback Op Amp |
| Pages / Page | 20 / 4 — AD9631/AD9632. Data Sheet. AD9631. AD9632. Parameter. Test … |
| Revision | D |
| File Format / Size | PDF / 482 Kb |
| Document Language | English |
AD9631/AD9632. Data Sheet. AD9631. AD9632. Parameter. Test Conditions/Comments. Min. Typ. Max. Unit
Model Line for this Datasheet
Text Version of Document
link to page 5 link to page 15

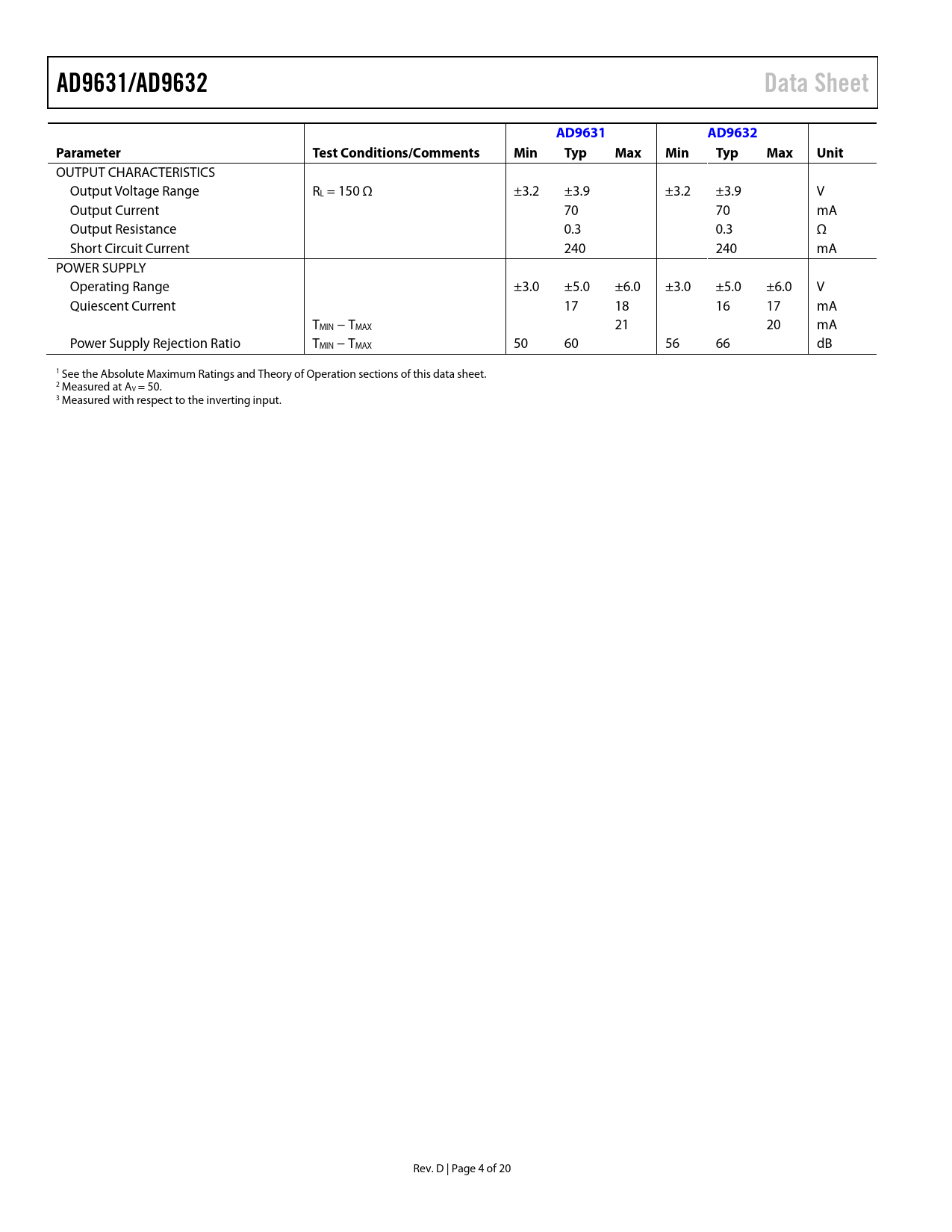

AD9631/AD9632 Data Sheet AD9631 AD9632 Parameter Test Conditions/Comments Min Typ Max Min Typ Max Unit
OUTPUT CHARACTERISTICS Output Voltage Range RL = 150 Ω ±3.2 ±3.9 ±3.2 ±3.9 V Output Current 70 70 mA Output Resistance 0.3 0.3 Ω Short Circuit Current 240 240 mA POWER SUPPLY Operating Range ±3.0 ±5.0 ±6.0 ±3.0 ±5.0 ±6.0 V Quiescent Current 17 18 16 17 mA TMIN − TMAX 21 20 mA Power Supply Rejection Ratio TMIN − TMAX 50 60 56 66 dB 1 See the Absolute Maximum Ratings and Theory of Operation sections of this data sheet. 2 Measured at AV = 50. 3 Measured with respect to the inverting input. Rev. D | Page 4 of 20 Document Outline Features Applications General Description Pin Configuration Table of Contents Revision History Specifications Electrical Characteristics Absolute Maximum Ratings Metallization Photo Thermal Resistance Maximum Power Dissipation ESD Caution Typical Performance Characteristics Theory of Operation General Feedback Resistor Choice Pulse Response Large Signal Performance Power Supply Bypassing Driving Capacitive Loads Applications Information Operation as a Video Line Driver Active Filters Analog-to-Digital Converter (ADC) Driver Layout Considerations Outline Dimensions Ordering Guide
AD9631/AD9632 Data Sheet AD9631 AD9632 Parameter Test Conditions/Comments Min Typ Max Min Typ Max Unit
OUTPUT CHARACTERISTICS Output Voltage Range RL = 150 Ω ±3.2 ±3.9 ±3.2 ±3.9 V Output Current 70 70 mA Output Resistance 0.3 0.3 Ω Short Circuit Current 240 240 mA POWER SUPPLY Operating Range ±3.0 ±5.0 ±6.0 ±3.0 ±5.0 ±6.0 V Quiescent Current 17 18 16 17 mA TMIN − TMAX 21 20 mA Power Supply Rejection Ratio TMIN − TMAX 50 60 56 66 dB 1 See the Absolute Maximum Ratings and Theory of Operation sections of this data sheet. 2 Measured at AV = 50. 3 Measured with respect to the inverting input. Rev. D | Page 4 of 20 Document Outline Features Applications General Description Pin Configuration Table of Contents Revision History Specifications Electrical Characteristics Absolute Maximum Ratings Metallization Photo Thermal Resistance Maximum Power Dissipation ESD Caution Typical Performance Characteristics Theory of Operation General Feedback Resistor Choice Pulse Response Large Signal Performance Power Supply Bypassing Driving Capacitive Loads Applications Information Operation as a Video Line Driver Active Filters Analog-to-Digital Converter (ADC) Driver Layout Considerations Outline Dimensions Ordering Guide
