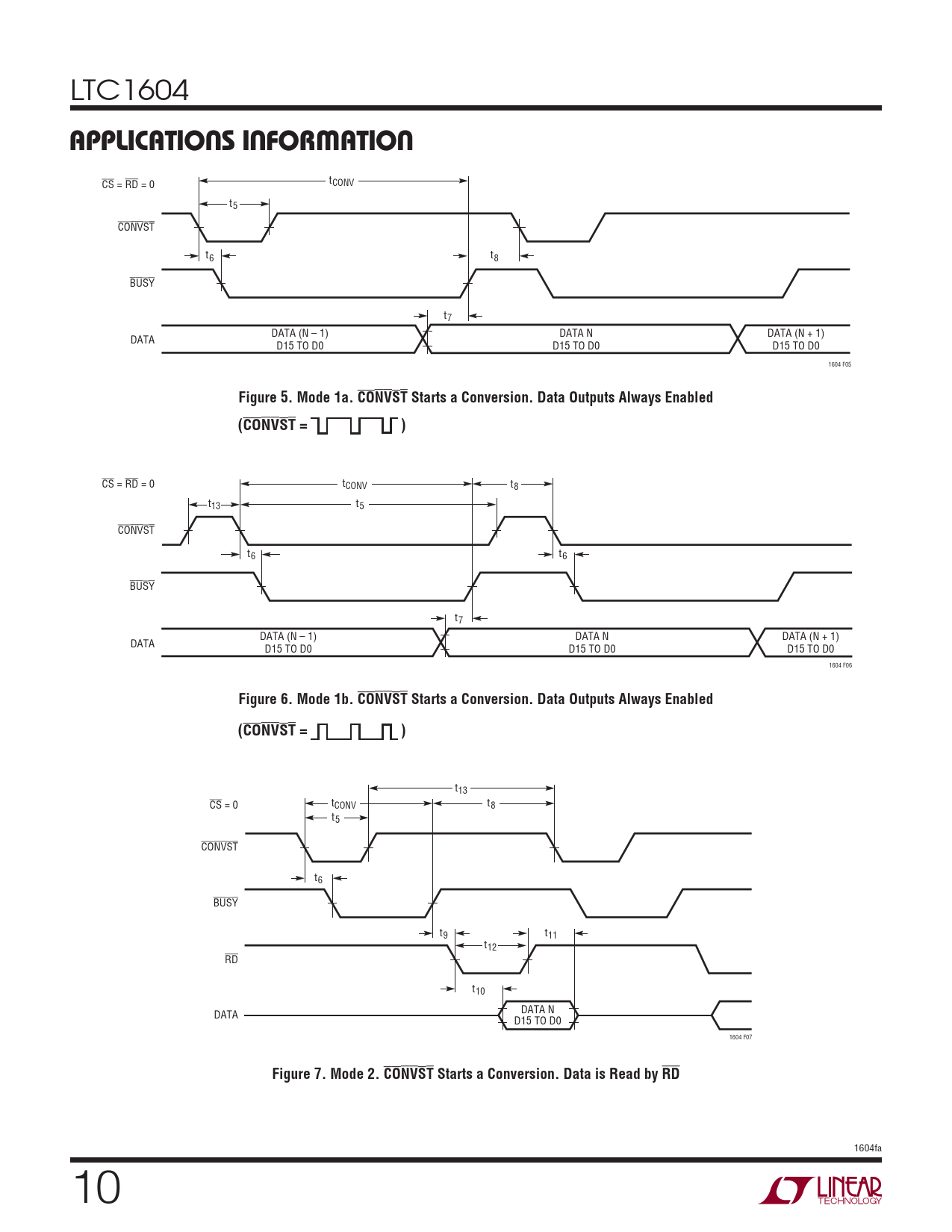

APPLICATIONS INFORMATION. Figure 5. Mode 1a. CONVST Starts a Conversion. Data Outputs Always Enabled. (CONVST = )
Model Line for this Datasheet
Text Version of Document
LTC1604
APPLICATIONS INFORMATION
CS = RD = 0 tCONV t5 CONVST t6 t8 BUSY t7 DATA (N – 1) DATA N DATA (N + 1) DATA D15 TO D0 D15 TO D0 D15 TO D0 1604 F05
Figure 5. Mode 1a. CONVST Starts a Conversion. Data Outputs Always Enabled (CONVST = )
CS = RD = 0 tCONV t8 t13 t5 CONVST t6 t6 BUSY t7 DATA (N – 1) DATA N DATA (N + 1) DATA D15 TO D0 D15 TO D0 D15 TO D0 1604 F06
Figure 6. Mode 1b. CONVST Starts a Conversion. Data Outputs Always Enabled (CONVST = )
t13 CS = 0 tCONV t8 t5 CONVST t6 BUSY t9 t11 t12 RD t10 DATA N DATA D15 TO D0 1604 F07
Figure 7. Mode 2. CONVST Starts a Conversion. Data is Read by RD
