Typical perForMance characTerisTics. LTC2153-14: Integral Nonlinearity. LTC2153-14: Differential. LTC2153-14: 32K Point FFT,
Model Line for this Datasheet
Text Version of Document
LTC2153-14

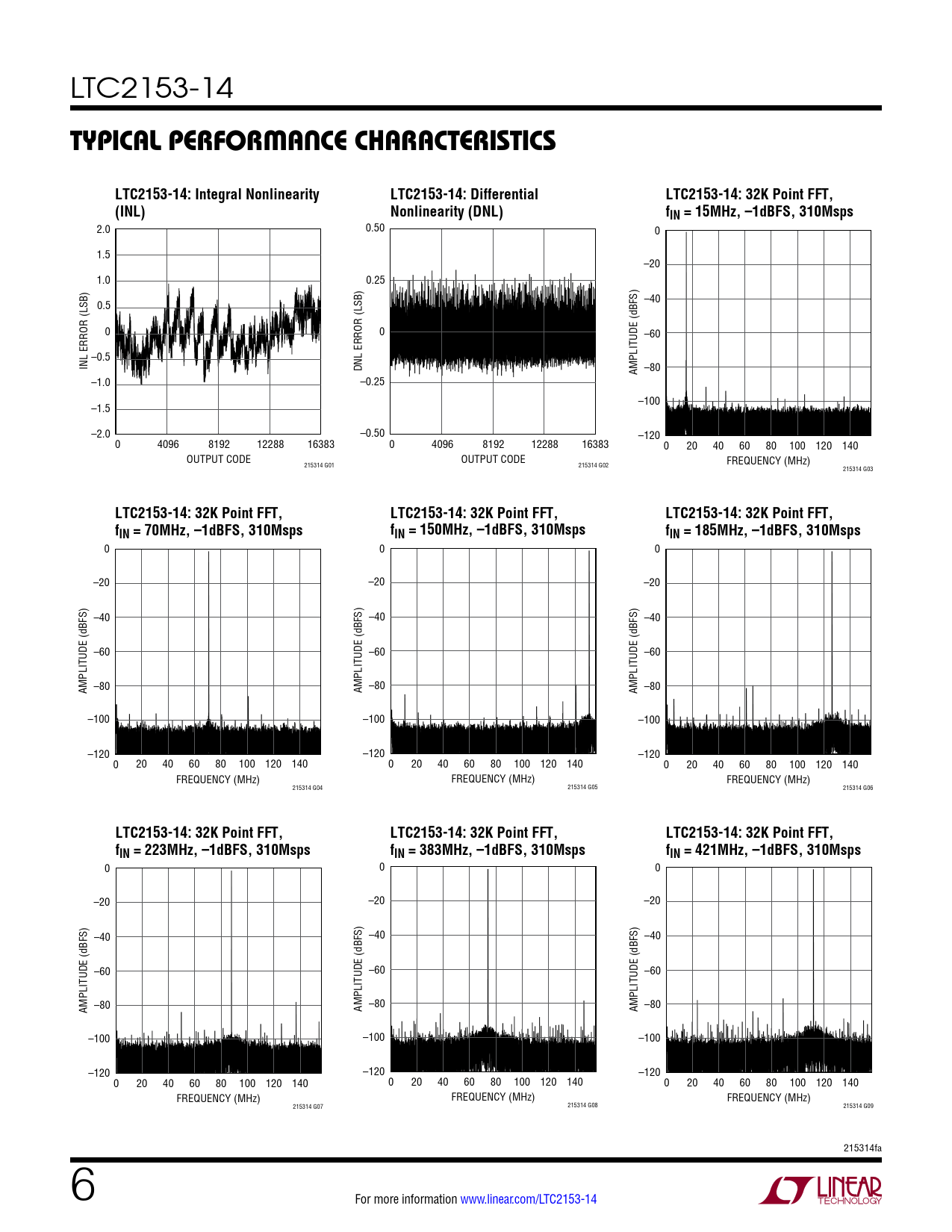

Typical perForMance characTerisTics LTC2153-14: Integral Nonlinearity LTC2153-14: Differential LTC2153-14: 32K Point FFT, (INL) Nonlinearity (DNL) fIN = 15MHz, –1dBFS, 310Msps
2.0 0.50 0 1.5 –20 1.0 0.25 –40 0.5 0 0 –60 –0.5 INL ERROR (LSB) DNL ERROR (LSB) AMPLITUDE (dBFS) –80 –1.0 –0.25 –100 –1.5 –2.0 –0.50 –120 0 4096 8192 12288 16383 0 4096 8192 12288 16383 0 20 40 60 80 100 120 140 OUTPUT CODE OUTPUT CODE FREQUENCY (MHz) 215314 G01 215314 G02 215314 G03
LTC2153-14: 32K Point FFT, LTC2153-14: 32K Point FFT, LTC2153-14: 32K Point FFT, fIN = 70MHz, –1dBFS, 310Msps fIN = 150MHz, –1dBFS, 310Msps fIN = 185MHz, –1dBFS, 310Msps
0 0 0 –20 –20 –20 –40 –40 –40 –60 –60 –60 AMPLITUDE (dBFS) –80 AMPLITUDE (dBFS) –80 AMPLITUDE (dBFS) –80 –100 –100 –100 –120 –120 –120 0 20 40 60 80 100 120 140 0 20 40 60 80 100 120 140 0 20 40 60 80 100 120 140 FREQUENCY (MHz) FREQUENCY (MHz) FREQUENCY (MHz) 215314 G04 215314 G05 215314 G06
LTC2153-14: 32K Point FFT, LTC2153-14: 32K Point FFT, LTC2153-14: 32K Point FFT, fIN = 223MHz, –1dBFS, 310Msps fIN = 383MHz, –1dBFS, 310Msps fIN = 421MHz, –1dBFS, 310Msps
0 0 0 –20 –20 –20 –40 –40 –40 –60 –60 –60 AMPLITUDE (dBFS) –80 AMPLITUDE (dBFS) –80 AMPLITUDE (dBFS) –80 –100 –100 –100 –120 –120 –120 0 20 40 60 80 100 120 140 0 20 40 60 80 100 120 140 0 20 40 60 80 100 120 140 FREQUENCY (MHz) FREQUENCY (MHz) FREQUENCY (MHz) 215314 G07 215314 G08 215314 G09 215314fa 6 For more information www.linear.com/LTC2153-14 Document Outline Features Description Applications Typical Application Absolute Maximum Ratings Pin Configuration Order Information Converter Characteristics Analog Input Dynamic Accuracy Internal Reference Characteristics Power Requirements Digital Inputs And Outputs Timing Characteristics Typical Performance Characteristics Pin Functions Functional Block Diagram Timing Diagrams Applications Information Package Description Related Parts
