LTC2203/LTC2202

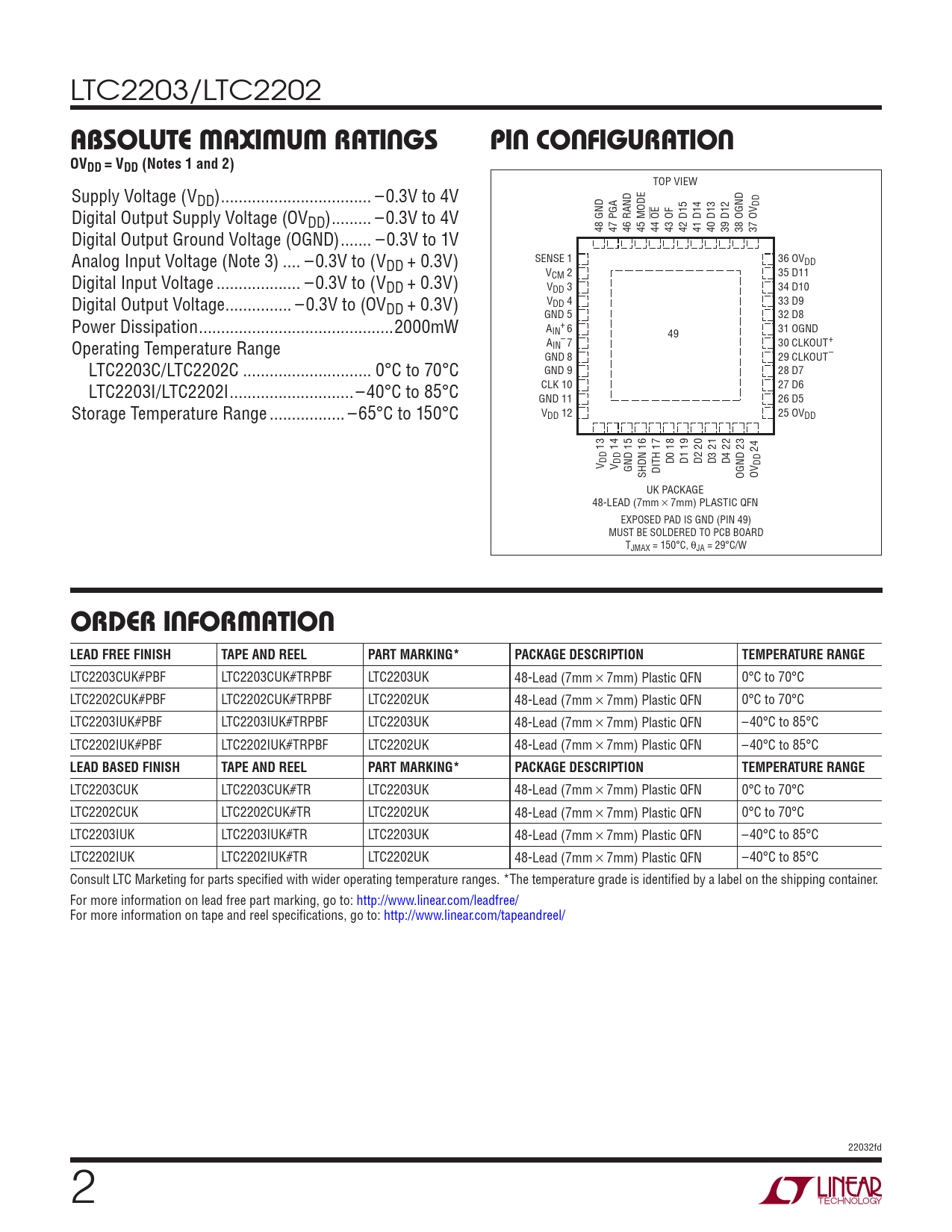

ABSOLUTE MAXIMUM RATINGS PIN CONFIGURATION OVDD = VDD (Notes 1 and 2)
TOP VIEW Supply Voltage (VDD) .. –0.3V to 4V DD OE Digital Output Supply Voltage (OVDD) ... –0.3V to 4V 48 GND 47 PGA 46 RAND 45 MODE 44 43 OF 42 D15 41 D14 40 D13 39 D12 38 OGND 37 OV Digital Output Ground Voltage (OGND) ... –0.3V to 1V SENSE 1 36 OVDD Analog Input Voltage (Note 3) .. –0.3V to (VDD + 0.3V) VCM 2 35 D11 Digital Input Voltage ... –0.3V to (V V DD + 0.3V) DD 3 34 D10 VDD 4 33 D9 Digital Output Voltage ... –0.3V to (OVDD + 0.3V) GND 5 32 D8 Power Dissipation ..2000mW A + IN 6 31 OGND 49 A – IN 7 30 CLKOUT+ Operating Temperature Range GND 8 29 CLKOUT– GND 9 28 D7 LTC2203C/LTC2202C ... 0°C to 70°C CLK 10 27 D6 LTC2203I/LTC2202I .. –40°C to 85°C GND 11 26 D5 V Storage Temperature Range ... –65°C to 150°C DD 12 25 OVDD 13 14 17 19 20 24 DD DD D2 V D0 18 D1 V DD GND 15 D3 21 D4 22 SHDN 16 DITH OGND 23 OV UK PACKAGE 48-LEAD (7mm s 7mm) PLASTIC QFN EXPOSED PAD IS GND (PIN 49) MUST BE SOLDERED TO PCB BOARD TJMAX = 150°C, θJA = 29°C/W
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LTC2203CUK#PBF LTC2203CUK#TRPBF LTC2203UK 48-Lead (7mm × 7mm) Plastic QFN 0°C to 70°C LTC2202CUK#PBF LTC2202CUK#TRPBF LTC2202UK 48-Lead (7mm × 7mm) Plastic QFN 0°C to 70°C LTC2203IUK#PBF LTC2203IUK#TRPBF LTC2203UK 48-Lead (7mm × 7mm) Plastic QFN –40°C to 85°C LTC2202IUK#PBF LTC2202IUK#TRPBF LTC2202UK 48-Lead (7mm × 7mm) Plastic QFN –40°C to 85°C
LEAD BASED FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LTC2203CUK LTC2203CUK#TR LTC2203UK 48-Lead (7mm × 7mm) Plastic QFN 0°C to 70°C LTC2202CUK LTC2202CUK#TR LTC2202UK 48-Lead (7mm × 7mm) Plastic QFN 0°C to 70°C LTC2203IUK LTC2203IUK#TR LTC2203UK 48-Lead (7mm × 7mm) Plastic QFN –40°C to 85°C LTC2202IUK LTC2202IUK#TR LTC2202UK 48-Lead (7mm × 7mm) Plastic QFN –40°C to 85°C Consult LTC Marketing for parts specifi ed with wider operating temperature ranges. *The temperature grade is identifi ed by a label on the shipping container. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifi cations, go to: http://www.linear.com/tapeandreel/ 22032fd 2
