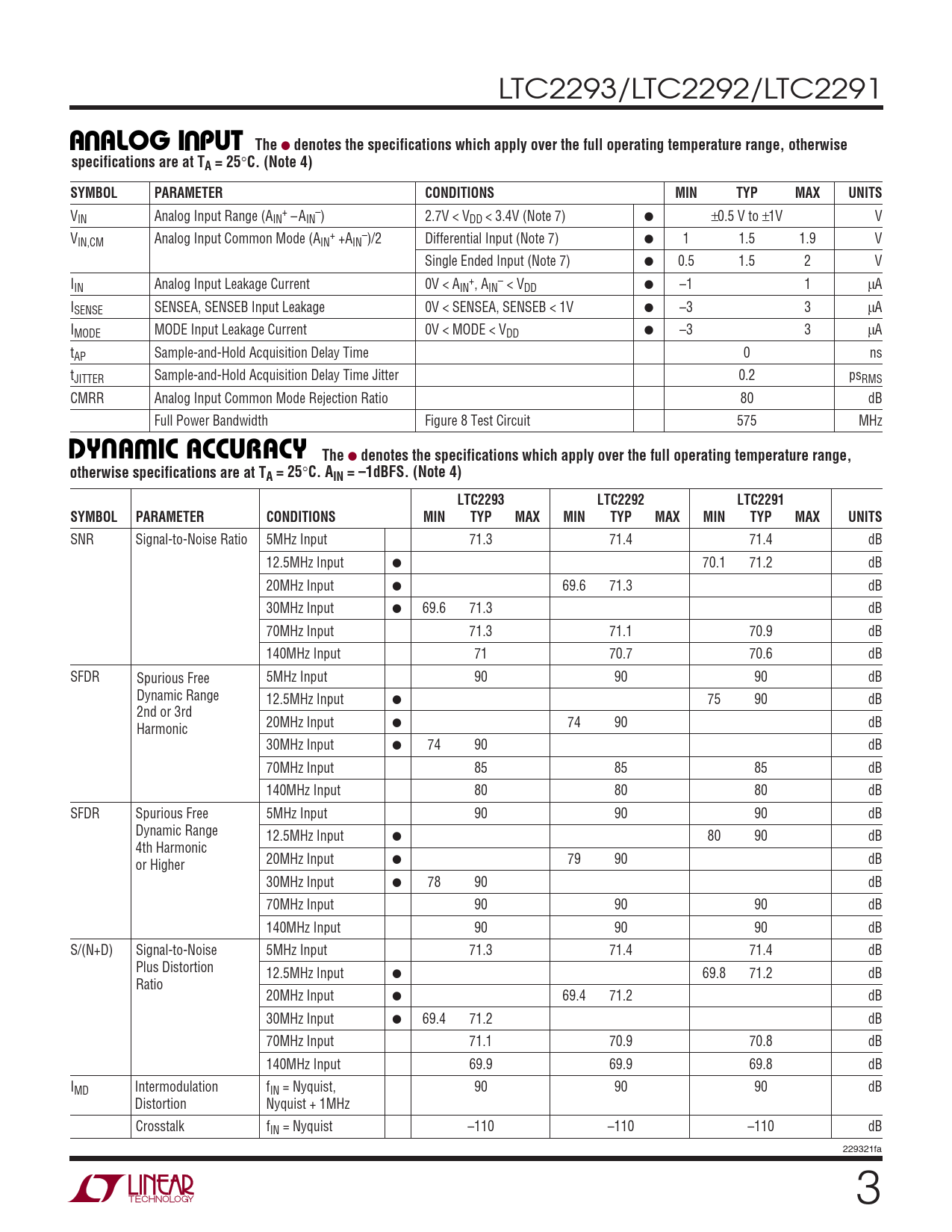

LTC2293/LTC2292/LTC2291
U U A ALOG I PUT The
●
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25
°
C. (Note 4) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
V + – IN Analog Input Range (AIN –AIN ) 2.7V < VDD < 3.4V (Note 7) ● ±0.5 V to ±1V V V + – IN,CM Analog Input Common Mode (AIN +AIN )/2 Differential Input (Note 7) ● 1 1.5 1.9 V Single Ended Input (Note 7) ● 0.5 1.5 2 V I + – IN Analog Input Leakage Current 0V < AIN , AIN < VDD ● –1 1 µA ISENSE SENSEA, SENSEB Input Leakage 0V < SENSEA, SENSEB < 1V ● –3 3 µA IMODE MODE Input Leakage Current 0V < MODE < VDD ● –3 3 µA tAP Sample-and-Hold Acquisition Delay Time 0 ns tJITTER Sample-and-Hold Acquisition Delay Time Jitter 0.2 psRMS CMRR Analog Input Common Mode Rejection Ratio 80 dB Full Power Bandwidth Figure 8 Test Circuit 575 MHz
U W DY A IC ACCURACY The
●
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25
°
C. AIN = –1dBFS. (Note 4) LTC2293 LTC2292 LTC2291 SYMBOL PARAMETER CONDITIONS MIN TYP MAX MIN TYP MAX MIN TYP MAX UNITS
SNR Signal-to-Noise Ratio 5MHz Input 71.3 71.4 71.4 dB 12.5MHz Input ● 70.1 71.2 dB 20MHz Input ● 69.6 71.3 dB 30MHz Input ● 69.6 71.3 dB 70MHz Input 71.3 71.1 70.9 dB 140MHz Input 71 70.7 70.6 dB SFDR Spurious Free 5MHz Input 90 90 90 dB Dynamic Range 12.5MHz Input ● 75 90 dB 2nd or 3rd 20MHz Input ● 74 90 dB Harmonic 30MHz Input ● 74 90 dB 70MHz Input 85 85 85 dB 140MHz Input 80 80 80 dB SFDR Spurious Free 5MHz Input 90 90 90 dB Dynamic Range 12.5MHz Input ● 80 90 dB 4th Harmonic 20MHz Input ● 79 90 dB or Higher 30MHz Input ● 78 90 dB 70MHz Input 90 90 90 dB 140MHz Input 90 90 90 dB S/(N+D) Signal-to-Noise 5MHz Input 71.3 71.4 71.4 dB Plus Distortion 12.5MHz Input ● 69.8 71.2 dB Ratio 20MHz Input ● 69.4 71.2 dB 30MHz Input ● 69.4 71.2 dB 70MHz Input 71.1 70.9 70.8 dB 140MHz Input 69.9 69.9 69.8 dB IMD Intermodulation fIN = Nyquist, 90 90 90 dB Distortion Nyquist + 1MHz Crosstalk fIN = Nyquist –110 –110 –110 dB 229321fa 3
