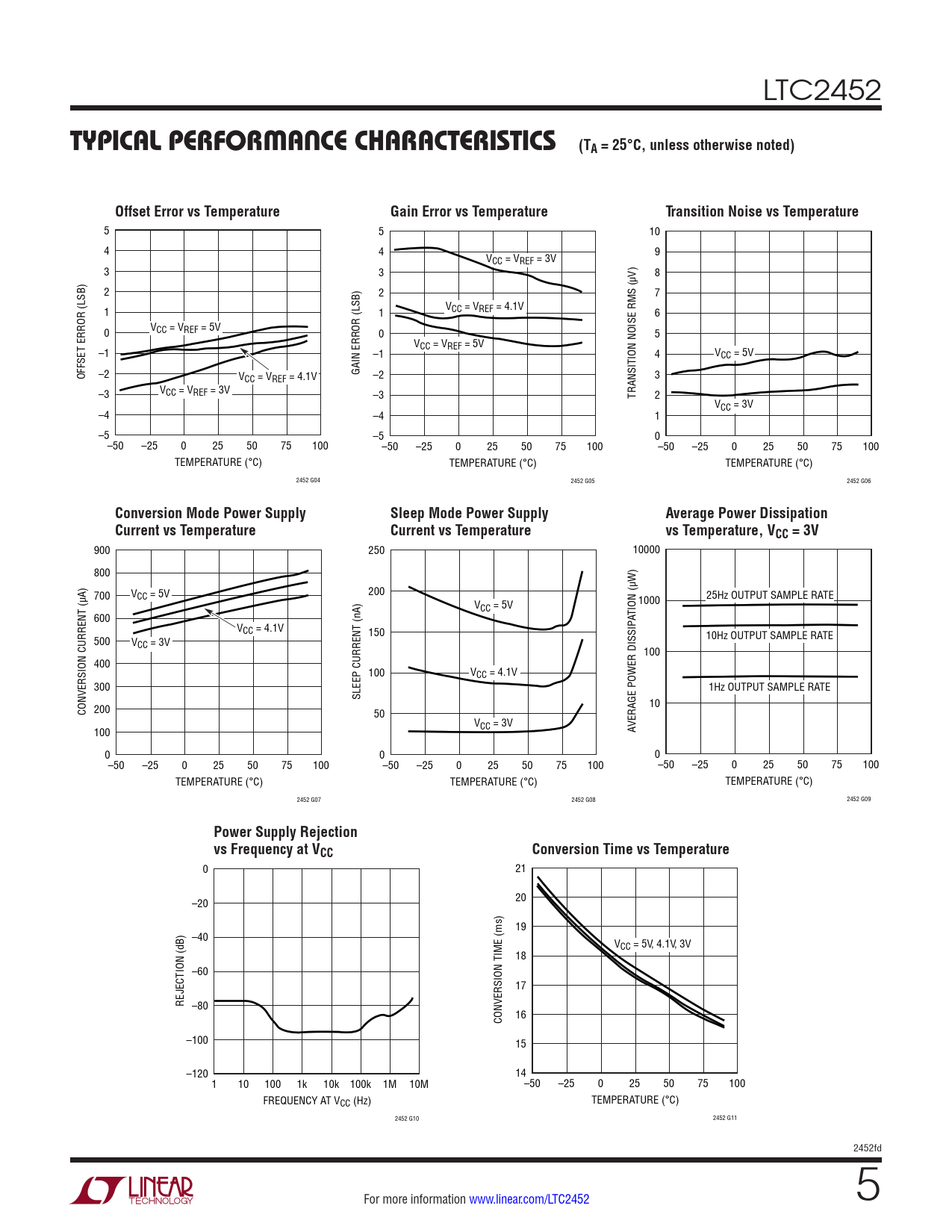

Typical perForMance characTerisTics (TA = 25°C, unless otherwise noted). Offset Error vs Temperature
