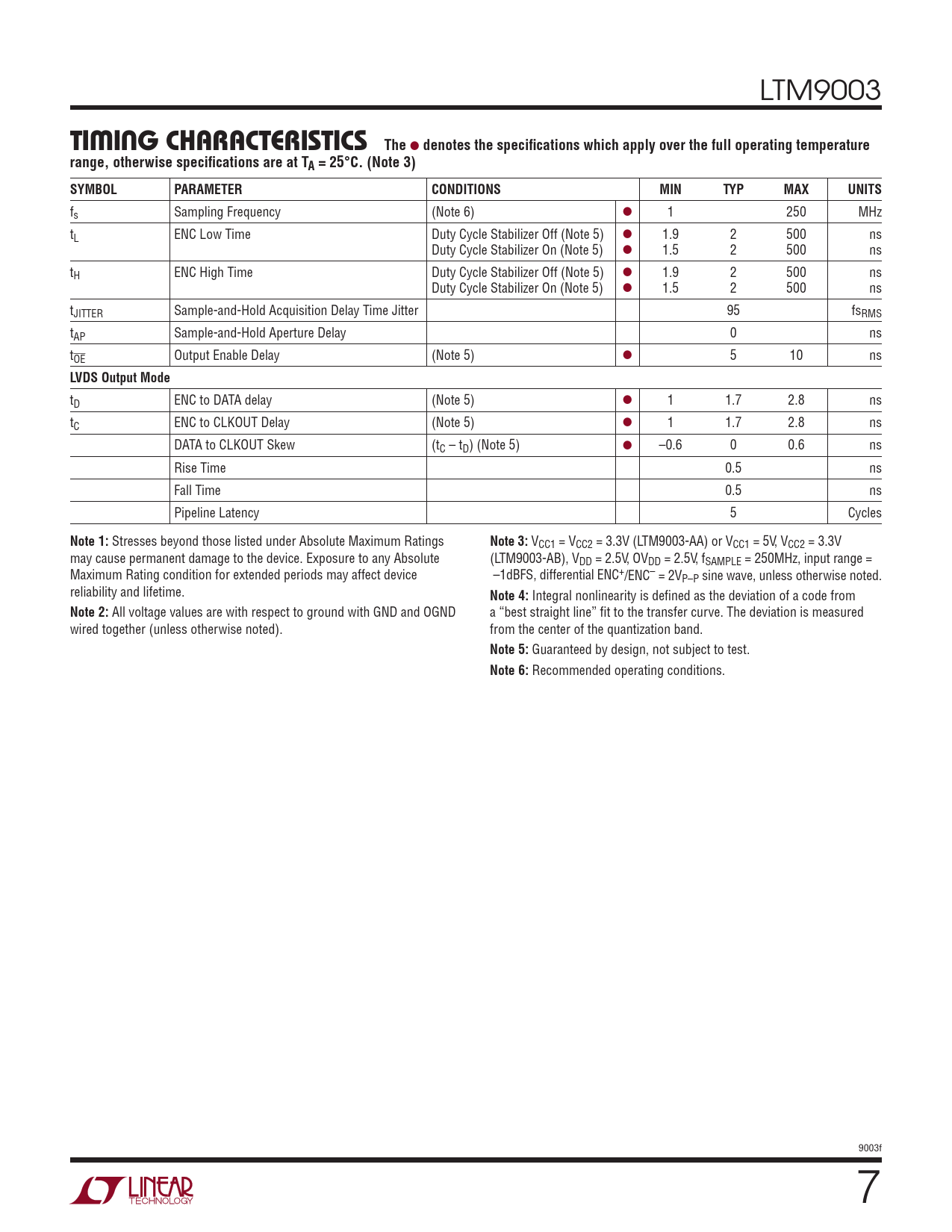

LTM9003 T
iMing characTerisTics
The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. (Note 3) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
fs Sampling Frequency (Note 6) l 1 250 MHz tL ENC Low Time Duty Cycle Stabilizer Off (Note 5) l 1.9 2 500 ns Duty Cycle Stabilizer On (Note 5) l 1.5 2 500 ns tH ENC High Time Duty Cycle Stabilizer Off (Note 5) l 1.9 2 500 ns Duty Cycle Stabilizer On (Note 5) l 1.5 2 500 ns tJITTER Sample-and-Hold Acquisition Delay Time Jitter 95 fsRMS tAP Sample-and-Hold Aperture Delay 0 ns tOE Output Enable Delay (Note 5) l 5 10 ns
LVDS Output Mode
tD ENC to DATA delay (Note 5) l 1 1.7 2.8 ns tC ENC to CLKOUT Delay (Note 5) l 1 1.7 2.8 ns DATA to CLKOUT Skew (tC – tD) (Note 5) l –0.6 0 0.6 ns Rise Time 0.5 ns Fall Time 0.5 ns Pipeline Latency 5 Cycles
