Datasheet LT1118, LT1118-2.5, LT1118-2.85, LT1118-5 (Analog Devices) - 2
| Manufacturer | Analog Devices |
| Description | Low IQ, Low Dropout, 800mA, Source and Sink Regulators Adjustable and Fixed 2.5V, 2.85V, 5V Output |
| Pages / Page | 8 / 2 — ABSOLUTE MAXIMUM RATINGS (Note 1). PIN CONFIGURATION. ORDER INFORMATION. … |
| File Format / Size | PDF / 253 Kb |
| Document Language | English |
ABSOLUTE MAXIMUM RATINGS (Note 1). PIN CONFIGURATION. ORDER INFORMATION. LEAD FREE FINISH. TAPE AND REEL. PART MARKING
Model Line for this Datasheet
- LT1118CS8#PBF LT1118CS8#PBF LT1118CS8#TRPBF LT1118CS8#TRPBF LT1118CS8-2.5#PBF LT1118CS8-2.5#PBF LT1118CS8-2.5#TRPBF LT1118CS8-2.5#TRPBF LT1118CS8-2.85#PBF LT1118CS8-2.85#PBF LT1118CS8-2.85#TRPBF LT1118CS8-2.85#TRPBF LT1118CS8-5#PBF LT1118CS8-5#PBF LT1118CS8-5#TRPBF LT1118CS8-5#TRPBF LT1118CST-2.5#PBF LT1118CST-2.5#PBF LT1118CST-2.5#TRPBF LT1118CST-2.5#TRPBF LT1118CST-2.85#PBF LT1118CST-2.85#PBF LT1118CST-2.85#TRPBF LT1118CST-2.85#TRPBF LT1118CST-5#PBF LT1118CST-5#PBF LT1118CST-5#TRPBF LT1118CST-5#TRPBF
Text Version of Document

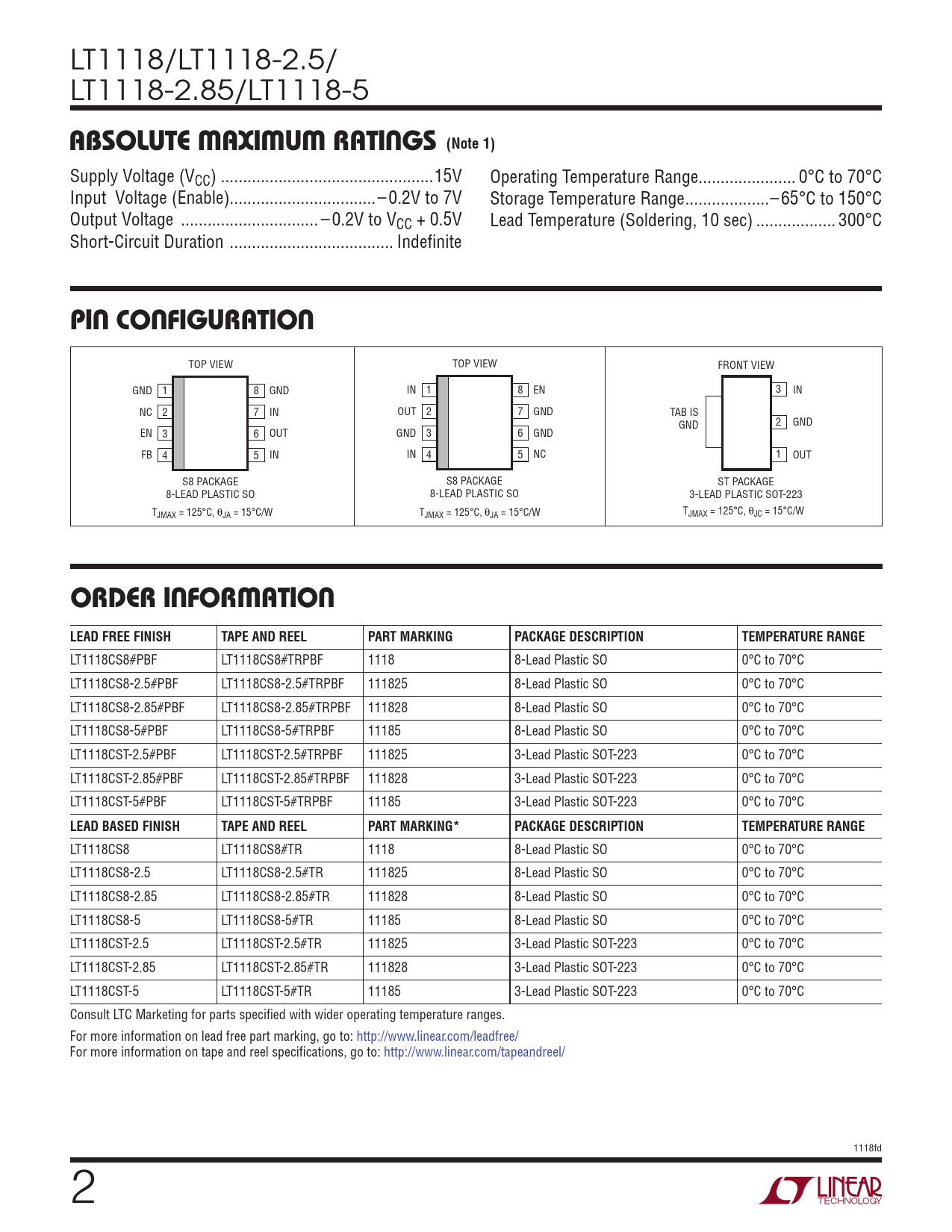

LT1118/LT1118-2.5/ LT1118-2.85/LT1118-5
ABSOLUTE MAXIMUM RATINGS (Note 1)
Supply Voltage (VCC) ..15V Operating Temperature Range.. 0°C to 70°C Input Voltage (Enable)...– 0.2V to 7V Storage Temperature Range ...– 65°C to 150°C Output Voltage ... – 0.2V to VCC + 0.5V Lead Temperature (Soldering, 10 sec) .. 300°C Short-Circuit Duration ... Indefi nite
PIN CONFIGURATION
TOP VIEW TOP VIEW FRONT VIEW GND 1 8 GND IN 1 8 EN 3 IN NC 2 7 IN OUT 2 7 GND TAB IS 2 GND GND EN 3 6 OUT GND 3 6 GND FB 4 5 IN IN 4 5 NC 1 OUT S8 PACKAGE S8 PACKAGE ST PACKAGE 8-LEAD PLASTIC SO 8-LEAD PLASTIC SO 3-LEAD PLASTIC SOT-223 T T JMAX = 125°C, θJA = 15°C/W TJMAX = 125°C, θJA = 15°C/W JMAX = 125°C, θJC = 15°C/W
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING PACKAGE DESCRIPTION TEMPERATURE RANGE
LT1118CS8#PBF LT1118CS8#TRPBF 1118 8-Lead Plastic SO 0°C to 70°C LT1118CS8-2.5#PBF LT1118CS8-2.5#TRPBF 111825 8-Lead Plastic SO 0°C to 70°C LT1118CS8-2.85#PBF LT1118CS8-2.85#TRPBF 111828 8-Lead Plastic SO 0°C to 70°C LT1118CS8-5#PBF LT1118CS8-5#TRPBF 11185 8-Lead Plastic SO 0°C to 70°C LT1118CST-2.5#PBF LT1118CST-2.5#TRPBF 111825 3-Lead Plastic SOT-223 0°C to 70°C LT1118CST-2.85#PBF LT1118CST-2.85#TRPBF 111828 3-Lead Plastic SOT-223 0°C to 70°C LT1118CST-5#PBF LT1118CST-5#TRPBF 11185 3-Lead Plastic SOT-223 0°C to 70°C
LEAD BASED FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LT1118CS8 LT1118CS8#TR 1118 8-Lead Plastic SO 0°C to 70°C LT1118CS8-2.5 LT1118CS8-2.5#TR 111825 8-Lead Plastic SO 0°C to 70°C LT1118CS8-2.85 LT1118CS8-2.85#TR 111828 8-Lead Plastic SO 0°C to 70°C LT1118CS8-5 LT1118CS8-5#TR 11185 8-Lead Plastic SO 0°C to 70°C LT1118CST-2.5 LT1118CST-2.5#TR 111825 3-Lead Plastic SOT-223 0°C to 70°C LT1118CST-2.85 LT1118CST-2.85#TR 111828 3-Lead Plastic SOT-223 0°C to 70°C LT1118CST-5 LT1118CST-5#TR 11185 3-Lead Plastic SOT-223 0°C to 70°C Consult LTC Marketing for parts specifi ed with wider operating temperature ranges. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifi cations, go to: http://www.linear.com/tapeandreel/ 1118fd 2
