Datasheet LT1763 (Analog Devices) - 6
| Manufacturer | Analog Devices |
| Description | 500mA, Low Noise, LDO Micropower Regulators |
| Pages / Page | 22 / 6 — Typical perForMance characTerisTics. Typical Dropout Voltage. Guaranteed … |
| File Format / Size | PDF / 1.2 Mb |
| Document Language | English |
Typical perForMance characTerisTics. Typical Dropout Voltage. Guaranteed Dropout Voltage. Dropout Voltage. LT1763-1.5. LT1763-1.8
Model Line for this Datasheet
- LT1763CDE#PBF LT1763CDE#PBF LT1763CDE#TRPBF LT1763CDE#TRPBF LT1763CDE-1.5#PBF LT1763CDE-1.5#PBF LT1763CDE-1.5#TRPBF LT1763CDE-1.5#TRPBF LT1763CDE-1.8#PBF LT1763CDE-1.8#PBF LT1763CDE-1.8#TRPBF LT1763CDE-1.8#TRPBF LT1763CDE-2.5#PBF LT1763CDE-2.5#PBF LT1763CDE-2.5#TRPBF LT1763CDE-2.5#TRPBF LT1763CDE-3#PBF LT1763CDE-3#PBF LT1763CDE-3#TRPBF LT1763CDE-3#TRPBF LT1763CDE-3.3#PBF LT1763CDE-3.3#PBF LT1763CDE-3.3#TRPBF LT1763CDE-3.3#TRPBF LT1763CDE-5#PBF LT1763CDE-5#PBF LT1763CDE-5#TRPBF LT1763CDE-5#TRPBF LT1763CS8#PBF LT1763CS8#PBF LT1763CS8#TRPBF LT1763CS8#TRPBF LT1763CS8-1.5#PBF LT1763CS8-1.5#PBF LT1763CS8-1.5#TRPBF LT1763CS8-1.5#TRPBF LT1763CS8-1.8#PBF LT1763CS8-1.8#PBF LT1763CS8-1.8#TRPBF LT1763CS8-1.8#TRPBF LT1763CS8-2.5#PBF LT1763CS8-2.5#PBF LT1763CS8-2.5#TRPBF LT1763CS8-2.5#TRPBF LT1763CS8-3#PBF LT1763CS8-3#PBF LT1763CS8-3#TRPBF LT1763CS8-3#TRPBF LT1763CS8-3.3#PBF LT1763CS8-3.3#PBF LT1763CS8-3.3#TRPBF LT1763CS8-3.3#TRPBF LT1763CS8-5#PBF LT1763CS8-5#PBF LT1763CS8-5#TRPBF LT1763CS8-5#TRPBF LT1763IDE#PBF LT1763IDE#PBF LT1763IDE#TRPBF LT1763IDE#TRPBF LT1763IDE-1.5#PBF LT1763IDE-1.5#PBF LT1763IDE-1.5#TRPBF LT1763IDE-1.5#TRPBF LT1763IDE-1.8#PBF LT1763IDE-1.8#PBF LT1763IDE-1.8#TRPBF LT1763IDE-1.8#TRPBF LT1763IDE-2.5#PBF LT1763IDE-2.5#PBF LT1763IDE-2.5#TRPBF LT1763IDE-2.5#TRPBF LT1763IDE-3#PBF LT1763IDE-3#PBF LT1763IDE-3#TRPBF LT1763IDE-3#TRPBF LT1763IDE-3.3#PBF LT1763IDE-3.3#PBF LT1763IDE-3.3#TRPBF LT1763IDE-3.3#TRPBF LT1763IDE-5#PBF LT1763IDE-5#PBF LT1763IDE-5#TRPBF LT1763IDE-5#TRPBF LT1763IS8#PBF LT1763IS8#PBF LT1763IS8#TRPBF LT1763IS8#TRPBF LT1763IS8-1.5#PBF LT1763IS8-1.5#PBF LT1763IS8-1.5#TRPBF LT1763IS8-1.5#TRPBF LT1763IS8-1.8#PBF LT1763IS8-1.8#PBF LT1763IS8-1.8#TRPBF LT1763IS8-1.8#TRPBF LT1763IS8-2.5#PBF LT1763IS8-2.5#PBF LT1763IS8-2.5#TRPBF LT1763IS8-2.5#TRPBF LT1763IS8-3#PBF LT1763IS8-3#PBF LT1763IS8-3#TRPBF LT1763IS8-3#TRPBF LT1763IS8-3.3#PBF LT1763IS8-3.3#PBF LT1763IS8-3.3#TRPBF LT1763IS8-3.3#TRPBF LT1763IS8-5#PBF LT1763IS8-5#PBF LT1763IS8-5#TRPBF LT1763IS8-5#TRPBF LT1763MPDE LT1763MPDE#PBF LT1763MPDE#PBF LT1763MPDE#TR LT1763MPDE#TRPBF LT1763MPDE#TRPBF LT1763MPDE-1.5 LT1763MPDE-1.5#PBF LT1763MPDE-1.5#PBF LT1763MPDE-1.5#TRPBF LT1763MPDE-1.5#TRPBF LT1763MPDE-1.8#PBF LT1763MPDE-1.8#PBF LT1763MPDE-1.8#TRPBF LT1763MPDE-1.8#TRPBF LT1763MPDE-2.5#PBF LT1763MPDE-2.5#PBF LT1763MPDE-2.5#TRPBF LT1763MPDE-2.5#TRPBF LT1763MPDE-3#PBF LT1763MPDE-3#PBF LT1763MPDE-3#TRPBF LT1763MPDE-3#TRPBF LT1763MPDE-3.3 LT1763MPDE-3.3#PBF LT1763MPDE-3.3#PBF LT1763MPDE-3.3#TR LT1763MPDE-3.3#TRPBF LT1763MPDE-3.3#TRPBF LT1763MPDE-5#PBF LT1763MPDE-5#PBF LT1763MPDE-5#TRPBF LT1763MPDE-5#TRPBF LT1763MPS8 LT1763MPS8#PBF LT1763MPS8#PBF LT1763MPS8#TR LT1763MPS8#TRPBF LT1763MPS8#TRPBF LT1763MPS8-2.5#PBF LT1763MPS8-2.5#PBF LT1763MPS8-2.5#TRPBF LT1763MPS8-2.5#TRPBF LT1763MPS8-5#PBF LT1763MPS8-5#PBF LT1763MPS8-5#TRPBF LT1763MPS8-5#TRPBF
Text Version of Document
LT1763 Series

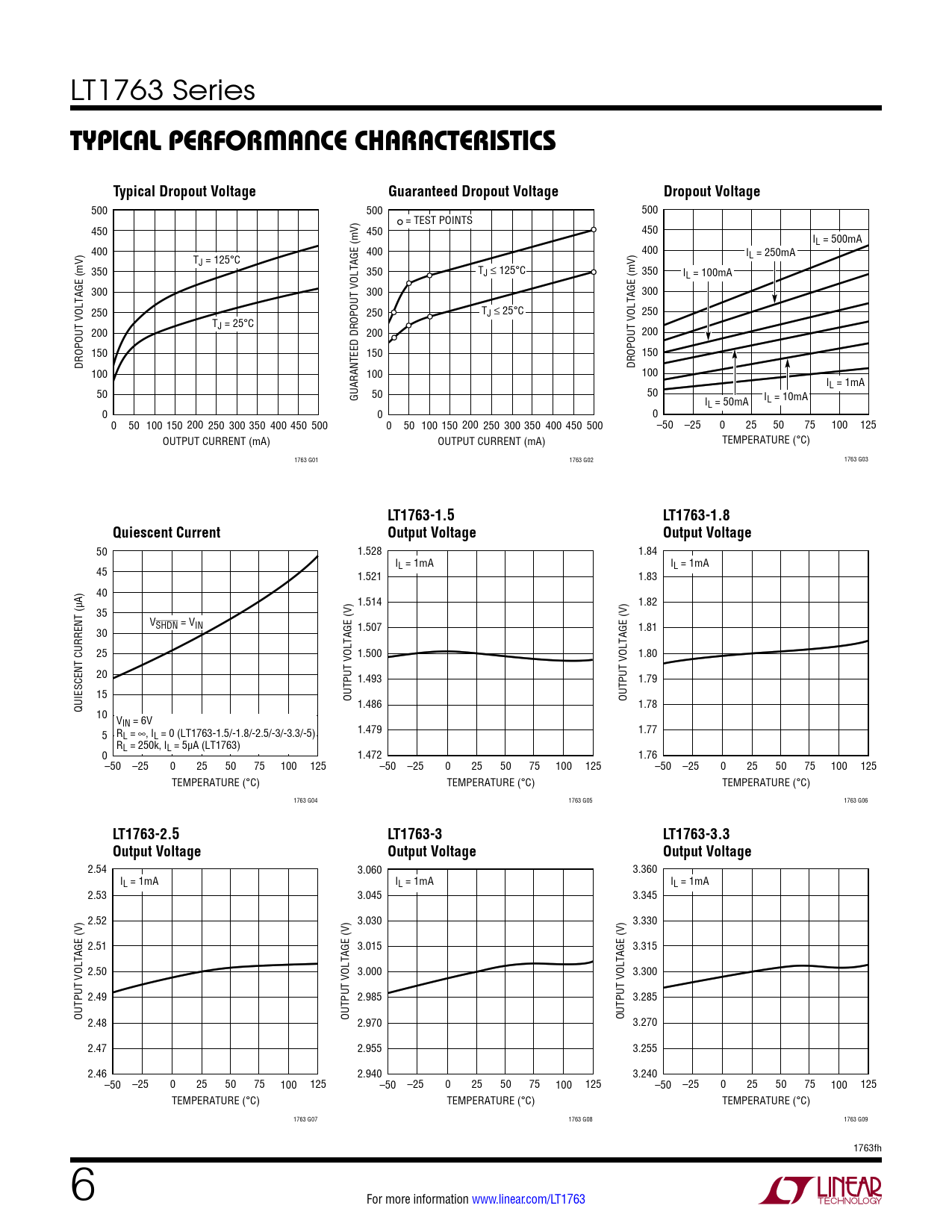

Typical perForMance characTerisTics Typical Dropout Voltage Guaranteed Dropout Voltage Dropout Voltage
500 500 500 = TEST POINTS 450 450 450 IL = 500mA 400 400 400 I T L = 250mA J = 125°C 350 350 TJ ≤ 125°C 350 IL = 100mA 300 300 300 250 250 TJ ≤ 25°C 250 TJ = 25°C 200 200 200 150 150 150 DROPOUT VOLTAGE (mV) DROPOUT VOLTAGE (mV) 100 100 100 IL = 1mA 50 50 GUARANTEED DROPOUT VOLTAGE (mV) 50 IL = 10mA IL = 50mA 0 0 0 0 50 100 150 200 250 300 350 400 450 500 0 50 100 150 200 250 300 350 400 450 500 –50 –25 0 25 50 75 100 125 OUTPUT CURRENT (mA) OUTPUT CURRENT (mA) TEMPERATURE (°C) 1763 G01 1763 G02 1763 G03
LT1763-1.5 LT1763-1.8 Quiescent Current Output Voltage Output Voltage
50 1.528 1.84 I I 45 L = 1mA L = 1mA 1.521 1.83 40 1.514 1.82 35 VSHDN = VIN 30 1.507 1.81 25 1.500 1.80 20 1.493 1.79 15 OUTPUT VOLTAGE (V) OUTPUT VOLTAGE (V) QUIESCENT CURRENT (µA) 1.486 1.78 10 VIN = 6V 5 R 1.479 1.77 L = ∞, IL = 0 (LT1763-1.5/-1.8/-2.5/-3/-3.3/-5) RL = 250k, IL = 5µA (LT1763) 0 1.472 1.76 –50 –25 0 25 50 75 100 125 –50 –25 0 25 50 75 100 125 –50 –25 0 25 50 75 100 125 TEMPERATURE (°C) TEMPERATURE (°C) TEMPERATURE (°C) 1763 G04 1763 G05 1763 G06
LT1763-2.5 LT1763-3 LT1763-3.3 Output Voltage Output Voltage Output Voltage
2.54 3.060 3.360 IL = 1mA IL = 1mA IL = 1mA 2.53 3.045 3.345 2.52 3.030 3.330 2.51 3.015 3.315 2.50 3.000 3.300 2.49 2.985 3.285 OUTPUT VOLTAGE (V) 2.48 OUTPUT VOLTAGE (V) OUTPUT VOLTAGE (V) 2.970 3.270 2.47 2.955 3.255 2.46 2.940 3.240 –50 –25 0 25 50 75 100 125 –50 –25 0 25 50 75 100 125 –50 –25 0 25 50 75 100 125 TEMPERATURE (°C) TEMPERATURE (°C) TEMPERATURE (°C) 1763 G07 1763 G08 1763 G09 1763fh 6 For more information www.linear.com/LT1763 Document Outline Description Typical Application Absolute Maximum Ratings Typical Performance Characteristics Pin Functions Applications Information Package Description Typical Application Related Parts
