Datasheet LT3007 (Analog Devices) - 3
| Manufacturer | Analog Devices |
| Description | 3μA IQ, 20mA, 45V Low Dropout Fault Tolerant Linear Regulators |
| Pages / Page | 20 / 3 — ELECTRICAL. CHARACTERISTICS The. denotes the specifications which apply … |
| File Format / Size | PDF / 344 Kb |
| Document Language | English |

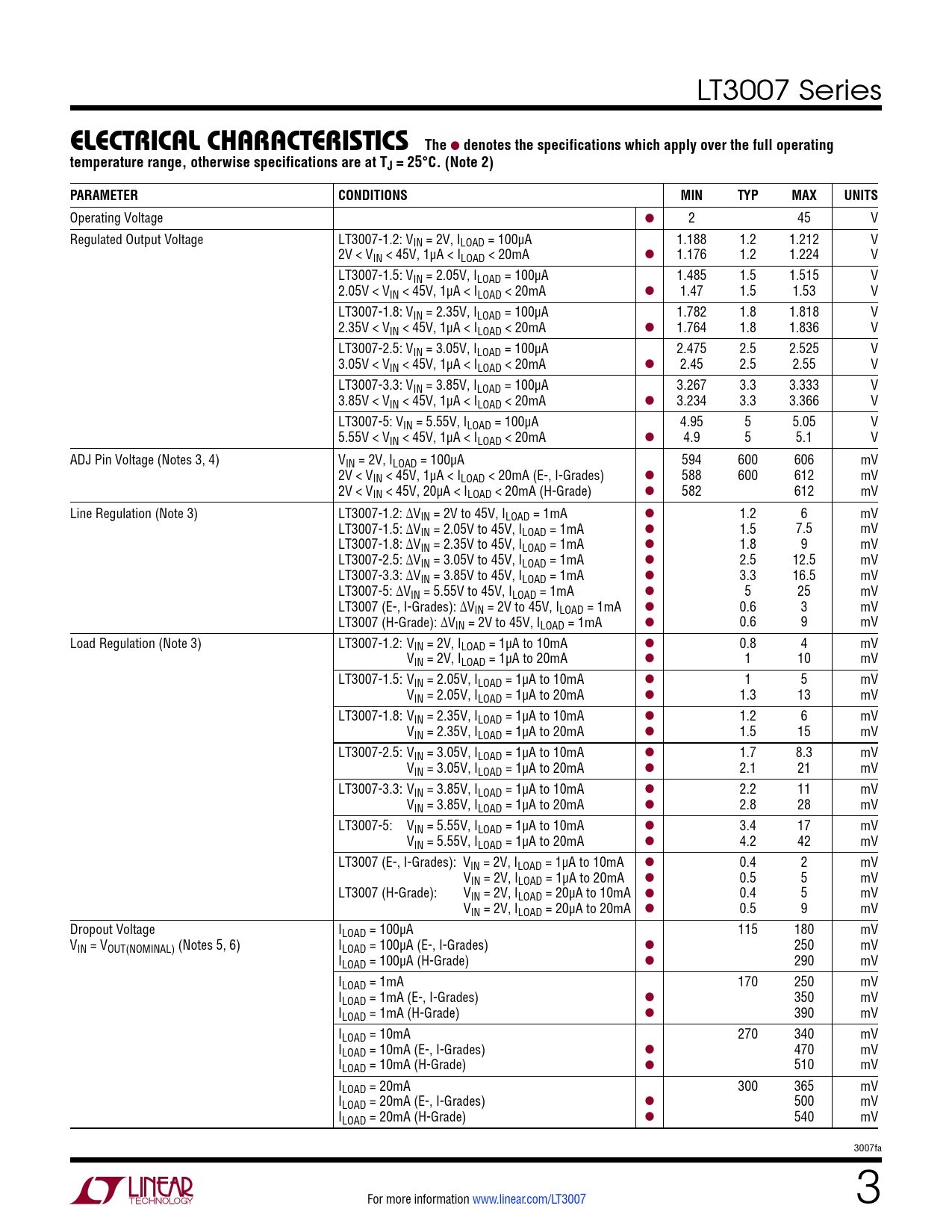

ELECTRICAL. CHARACTERISTICS The. denotes the specifications which apply over the full operating
Model Line for this Datasheet
- LT3007ETS8#PBF LT3007ETS8#TRMPBF LT3007ETS8#TRPBF LT3007ETS8-1.2#PBF LT3007ETS8-1.2#TRMPBF LT3007ETS8-1.2#TRPBF LT3007ETS8-1.5#PBF LT3007ETS8-1.5#TRMPBF LT3007ETS8-1.5#TRPBF LT3007ETS8-1.8#PBF LT3007ETS8-1.8#TRMPBF LT3007ETS8-1.8#TRPBF LT3007ETS8-2.5#PBF LT3007ETS8-2.5#TRMPBF LT3007ETS8-2.5#TRPBF LT3007ETS8-3.3#PBF LT3007ETS8-3.3#TRMPBF LT3007ETS8-3.3#TRPBF LT3007ETS8-5#PBF LT3007ETS8-5#TRMPBF LT3007ETS8-5#TRPBF LT3007HTS8#PBF LT3007HTS8#TRMPBF LT3007HTS8#TRPBF LT3007ITS8#PBF LT3007ITS8#TRMPBF LT3007ITS8#TRPBF LT3007ITS8-1.2#PBF LT3007ITS8-1.2#TRMPBF LT3007ITS8-1.2#TRPBF LT3007ITS8-1.5#PBF LT3007ITS8-1.5#TRMPBF LT3007ITS8-1.5#TRPBF LT3007ITS8-1.8#PBF LT3007ITS8-1.8#TRMPBF LT3007ITS8-1.8#TRPBF LT3007ITS8-2.5#PBF LT3007ITS8-2.5#TRMPBF LT3007ITS8-2.5#TRPBF LT3007ITS8-3.3#PBF LT3007ITS8-3.3#TRMPBF LT3007ITS8-3.3#TRPBF LT3007ITS8-5#PBF LT3007ITS8-5#TRMPBF LT3007ITS8-5#TRPBF
- LT3007ETS8#TRMPBF LT3007ETS8#TRPBF LT3007ETS8-1.2#TRMPBF LT3007ETS8-1.2#TRPBF LT3007ETS8-1.5#TRMPBF LT3007ETS8-1.5#TRPBF LT3007ETS8-1.8#TRMPBF LT3007ETS8-1.8#TRPBF LT3007ETS8-2.5#TRMPBF LT3007ETS8-2.5#TRPBF LT3007ETS8-3.3#TRMPBF LT3007ETS8-3.3#TRPBF LT3007ETS8-5#TRMPBF LT3007ETS8-5#TRPBF LT3007HTS8#TRMPBF LT3007HTS8#TRPBF LT3007ITS8#TRMPBF LT3007ITS8#TRPBF LT3007ITS8-1.2#TRMPBF LT3007ITS8-1.2#TRPBF LT3007ITS8-1.5#TRMPBF LT3007ITS8-1.5#TRPBF LT3007ITS8-1.8#TRMPBF LT3007ITS8-1.8#TRPBF LT3007ITS8-2.5#TRMPBF LT3007ITS8-2.5#TRPBF LT3007ITS8-3.3#TRMPBF LT3007ITS8-3.3#TRPBF LT3007ITS8-5#TRMPBF LT3007ITS8-5#TRPBF
Text Version of Document
LT3007 Series
ELECTRICAL CHARACTERISTICS The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TJ = 25°C. (Note 2) PARAMETER CONDITIONS MIN TYP MAX UNITS
Operating Voltage l 2 45 V Regulated Output Voltage LT3007-1.2: VIN = 2V, ILOAD = 100µA 1.188 1.2 1.212 V 2V < VIN < 45V, 1µA < ILOAD < 20mA l 1.176 1.2 1.224 V LT3007-1.5: VIN = 2.05V, ILOAD = 100µA 1.485 1.5 1.515 V 2.05V < VIN < 45V, 1µA < ILOAD < 20mA l 1.47 1.5 1.53 V LT3007-1.8: VIN = 2.35V, ILOAD = 100µA 1.782 1.8 1.818 V 2.35V < VIN < 45V, 1µA < ILOAD < 20mA l 1.764 1.8 1.836 V LT3007-2.5: VIN = 3.05V, ILOAD = 100µA 2.475 2.5 2.525 V 3.05V < VIN < 45V, 1µA < ILOAD < 20mA l 2.45 2.5 2.55 V LT3007-3.3: VIN = 3.85V, ILOAD = 100µA 3.267 3.3 3.333 V 3.85V < VIN < 45V, 1µA < ILOAD < 20mA l 3.234 3.3 3.366 V LT3007-5: VIN = 5.55V, ILOAD = 100µA 4.95 5 5.05 V 5.55V < VIN < 45V, 1µA < ILOAD < 20mA l 4.9 5 5.1 V ADJ Pin Voltage (Notes 3, 4) VIN = 2V, ILOAD = 100µA 594 600 606 mV 2V < VIN < 45V, 1µA < ILOAD < 20mA (E-, I-Grades) l 588 600 612 mV 2V < VIN < 45V, 20µA < ILOAD < 20mA (H-Grade) l 582 612 mV Line Regulation (Note 3) LT3007-1.2: ∆VIN = 2V to 45V, ILOAD = 1mA l 1.2 6 mV LT3007-1.5: ∆VIN = 2.05V to 45V, ILOAD = 1mA l 1.5 7.5 mV LT3007-1.8: ∆VIN = 2.35V to 45V, ILOAD = 1mA l 1.8 9 mV LT3007-2.5: ∆VIN = 3.05V to 45V, ILOAD = 1mA l 2.5 12.5 mV LT3007-3.3: ∆VIN = 3.85V to 45V, ILOAD = 1mA l 3.3 16.5 mV LT3007-5: ∆VIN = 5.55V to 45V, ILOAD = 1mA l 5 25 mV LT3007 (E-, I-Grades): ∆VIN = 2V to 45V, ILOAD = 1mA l 0.6 3 mV LT3007 (H-Grade): ∆VIN = 2V to 45V, ILOAD = 1mA l 0.6 9 mV Load Regulation (Note 3) LT3007-1.2: VIN = 2V, ILOAD = 1µA to 10mA l 0.8 4 mV VIN = 2V, ILOAD = 1µA to 20mA l 1 10 mV LT3007-1.5: VIN = 2.05V, ILOAD = 1µA to 10mA l 1 5 mV VIN = 2.05V, ILOAD = 1µA to 20mA l 1.3 13 mV LT3007-1.8: VIN = 2.35V, ILOAD = 1µA to 10mA l 1.2 6 mV VIN = 2.35V, ILOAD = 1µA to 20mA l 1.5 15 mV LT3007-2.5: VIN = 3.05V, ILOAD = 1µA to 10mA l 1.7 8.3 mV VIN = 3.05V, ILOAD = 1µA to 20mA l 2.1 21 mV LT3007-3.3: VIN = 3.85V, ILOAD = 1µA to 10mA l 2.2 11 mV VIN = 3.85V, ILOAD = 1µA to 20mA l 2.8 28 mV LT3007-5: VIN = 5.55V, ILOAD = 1µA to 10mA l 3.4 17 mV VIN = 5.55V, ILOAD = 1µA to 20mA l 4.2 42 mV LT3007 (E-, I-Grades): VIN = 2V, ILOAD = 1µA to 10mA l 0.4 2 mV VIN = 2V, ILOAD = 1µA to 20mA l 0.5 5 mV LT3007 (H-Grade): VIN = 2V, ILOAD = 20µA to 10mA l 0.4 5 mV VIN = 2V, ILOAD = 20µA to 20mA l 0.5 9 mV Dropout Voltage ILOAD = 100µA 115 180 mV VIN = VOUT(NOMINAL) (Notes 5, 6) ILOAD = 100µA (E-, I-Grades) l 250 mV ILOAD = 100µA (H-Grade) l 290 mV ILOAD = 1mA 170 250 mV ILOAD = 1mA (E-, I-Grades) l 350 mV ILOAD = 1mA (H-Grade) l 390 mV ILOAD = 10mA 270 340 mV ILOAD = 10mA (E-, I-Grades) l 470 mV ILOAD = 10mA (H-Grade) l 510 mV ILOAD = 20mA 300 365 mV ILOAD = 20mA (E-, I-Grades) l 500 mV ILOAD = 20mA (H-Grade) l 540 mV 3007fa For more information www.linear.com/LT3007 3
