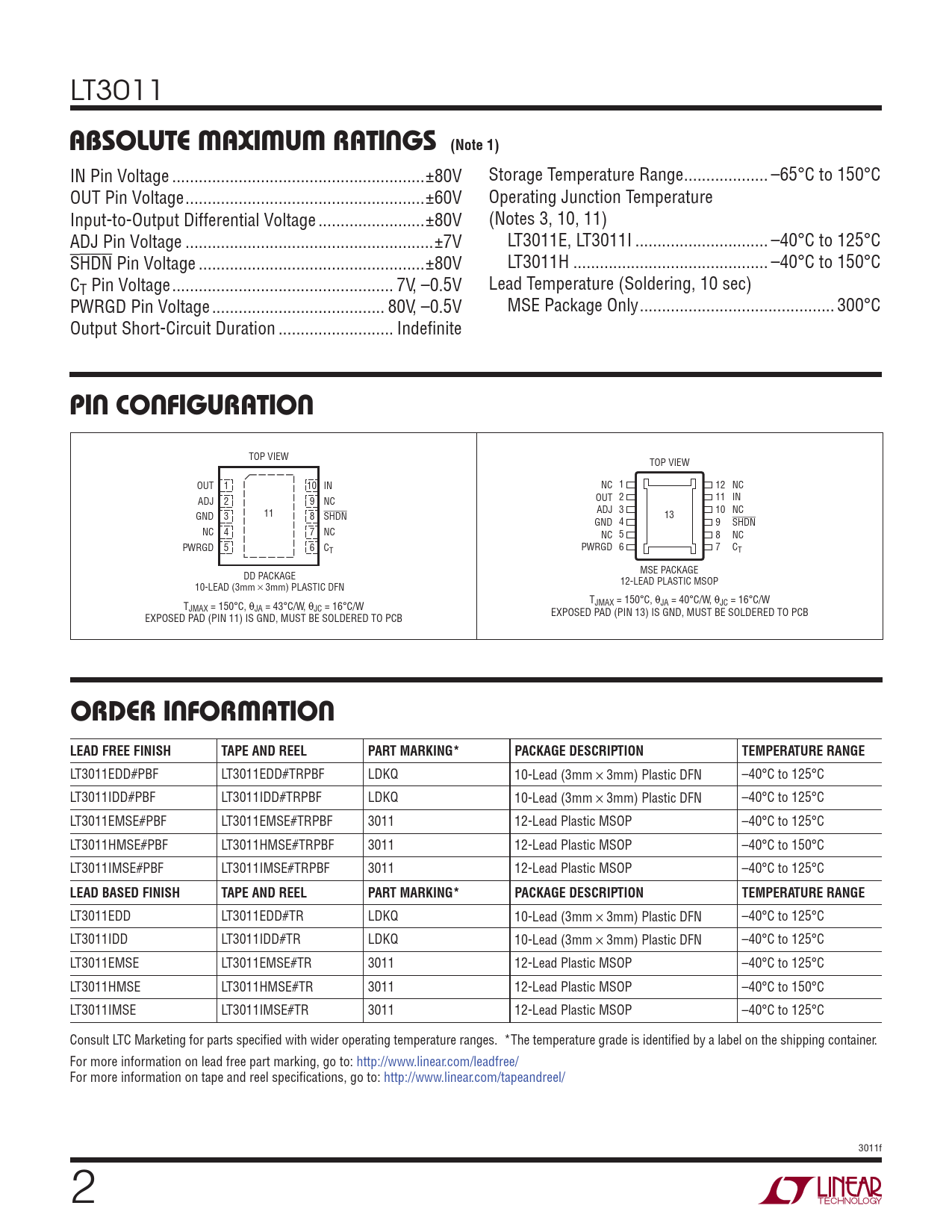

LT3011
ABSOLUTE MAXIMUM RATINGS (Note 1)
IN Pin Voltage ...±80V Storage Temperature Range ... –65°C to 150°C OUT Pin Voltage ..±60V Operating Junction Temperature Input-to-Output Differential Voltage ..±80V (Notes 3, 10, 11) ADJ Pin Voltage ..±7V LT3011E, LT3011I .. –40°C to 125°C SHDN Pin Voltage ...±80V LT3011H .. –40°C to 150°C CT Pin Voltage .. 7V, –0.5V Lead Temperature (Soldering, 10 sec) PWRGD Pin Voltage ... 80V, –0.5V MSE Package Only .. 300°C Output Short-Circuit Duration .. Indefi nite
PIN CONFIGURATION
TOP VIEW TOP VIEW OUT 1 10 IN NC 1 12 NC ADJ 2 9 NC OUT 2 11 IN 11 ADJ 3 10 NC GND 3 8 SHDN 13 GND 4 9 SHDN NC 4 7 NC NC 5 8 NC PWRGD 5 6 CT PWRGD 6 7 CT MSE PACKAGE DD PACKAGE 12-LEAD PLASTIC MSOP 10-LEAD (3mm s 3mm) PLASTIC DFN T T JMAX = 150°C, θJA = 40°C/W, θJC = 16°C/W JMAX = 150°C, θJA = 43°C/W, θJC = 16°C/W EXPOSED PAD (PIN 13) IS GND, MUST BE SOLDERED TO PCB EXPOSED PAD (PIN 11) IS GND, MUST BE SOLDERED TO PCB
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LT3011EDD#PBF LT3011EDD#TRPBF LDKQ 10-Lead (3mm × 3mm) Plastic DFN –40°C to 125°C LT3011IDD#PBF LT3011IDD#TRPBF LDKQ 10-Lead (3mm × 3mm) Plastic DFN –40°C to 125°C LT3011EMSE#PBF LT3011EMSE#TRPBF 3011 12-Lead Plastic MSOP –40°C to 125°C LT3011HMSE#PBF LT3011HMSE#TRPBF 3011 12-Lead Plastic MSOP –40°C to 150°C LT3011IMSE#PBF LT3011IMSE#TRPBF 3011 12-Lead Plastic MSOP –40°C to 125°C
LEAD BASED FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LT3011EDD LT3011EDD#TR LDKQ 10-Lead (3mm × 3mm) Plastic DFN –40°C to 125°C LT3011IDD LT3011IDD#TR LDKQ 10-Lead (3mm × 3mm) Plastic DFN –40°C to 125°C LT3011EMSE LT3011EMSE#TR 3011 12-Lead Plastic MSOP –40°C to 125°C LT3011HMSE LT3011HMSE#TR 3011 12-Lead Plastic MSOP –40°C to 150°C LT3011IMSE LT3011IMSE#TR 3011 12-Lead Plastic MSOP –40°C to 125°C Consult LTC Marketing for parts specifi ed with wider operating temperature ranges. *The temperature grade is identifi ed by a label on the shipping container. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifi cations, go to: http://www.linear.com/tapeandreel/ 3011f 2
