Datasheet LT3050 (Analog Devices) - 2
| Manufacturer | Analog Devices |
| Description | 100mA, Linear Regulator with Precision Current Limit and Diagnostic Outputs |
| Pages / Page | 26 / 2 — ABSOLUTE MAXIMUM RATINGS (Note 1). PIN CONFIGURATION. ORDER INFORMATION. … |
| File Format / Size | PDF / 409 Kb |
| Document Language | English |
ABSOLUTE MAXIMUM RATINGS (Note 1). PIN CONFIGURATION. ORDER INFORMATION. LEAD FREE FINISH. TAPE AND REEL. PART MARKING*
Model Line for this Datasheet
- LT3050EDDB#PBF LT3050EDDB#TRMPBF LT3050EDDB#TRMPBF LT3050EDDB#TRPBF LT3050EDDB#TRPBF LT3050EDDB-3.3#PBF LT3050EDDB-3.3#TRMPBF LT3050EDDB-3.3#TRMPBF LT3050EDDB-3.3#TRPBF LT3050EDDB-3.3#TRPBF LT3050EDDB-5#PBF LT3050EDDB-5#TRMPBF LT3050EDDB-5#TRMPBF LT3050EDDB-5#TRPBF LT3050EDDB-5#TRPBF LT3050EMSE#PBF LT3050EMSE#PBF LT3050EMSE#TRPBF LT3050EMSE#TRPBF LT3050EMSE-3.3#PBF LT3050EMSE-3.3#PBF LT3050EMSE-3.3#TRPBF LT3050EMSE-3.3#TRPBF LT3050EMSE-5#PBF LT3050EMSE-5#PBF LT3050EMSE-5#TRPBF LT3050EMSE-5#TRPBF LT3050IDDB#PBF LT3050IDDB#TRMPBF LT3050IDDB#TRMPBF LT3050IDDB#TRPBF LT3050IDDB#TRPBF LT3050IDDB-3.3#PBF LT3050IDDB-3.3#TRMPBF LT3050IDDB-3.3#TRMPBF LT3050IDDB-3.3#TRPBF LT3050IDDB-3.3#TRPBF LT3050IDDB-5#PBF LT3050IDDB-5#TRMPBF LT3050IDDB-5#TRMPBF LT3050IDDB-5#TRPBF LT3050IDDB-5#TRPBF LT3050IMSE#PBF LT3050IMSE#PBF LT3050IMSE#TRPBF LT3050IMSE#TRPBF LT3050IMSE-3.3#PBF LT3050IMSE-3.3#PBF LT3050IMSE-3.3#TRPBF LT3050IMSE-3.3#TRPBF LT3050IMSE-5#PBF LT3050IMSE-5#PBF LT3050IMSE-5#TRPBF LT3050IMSE-5#TRPBF LT3050MPMSE LT3050MPMSE#PBF LT3050MPMSE#PBF LT3050MPMSE#TRPBF LT3050MPMSE#TRPBF LT3050MPMSE-3.3#PBF LT3050MPMSE-3.3#PBF LT3050MPMSE-3.3#TRPBF LT3050MPMSE-3.3#TRPBF LT3050MPMSE-5#PBF LT3050MPMSE-5#PBF LT3050MPMSE-5#TRPBF LT3050MPMSE-5#TRPBF
Text Version of Document

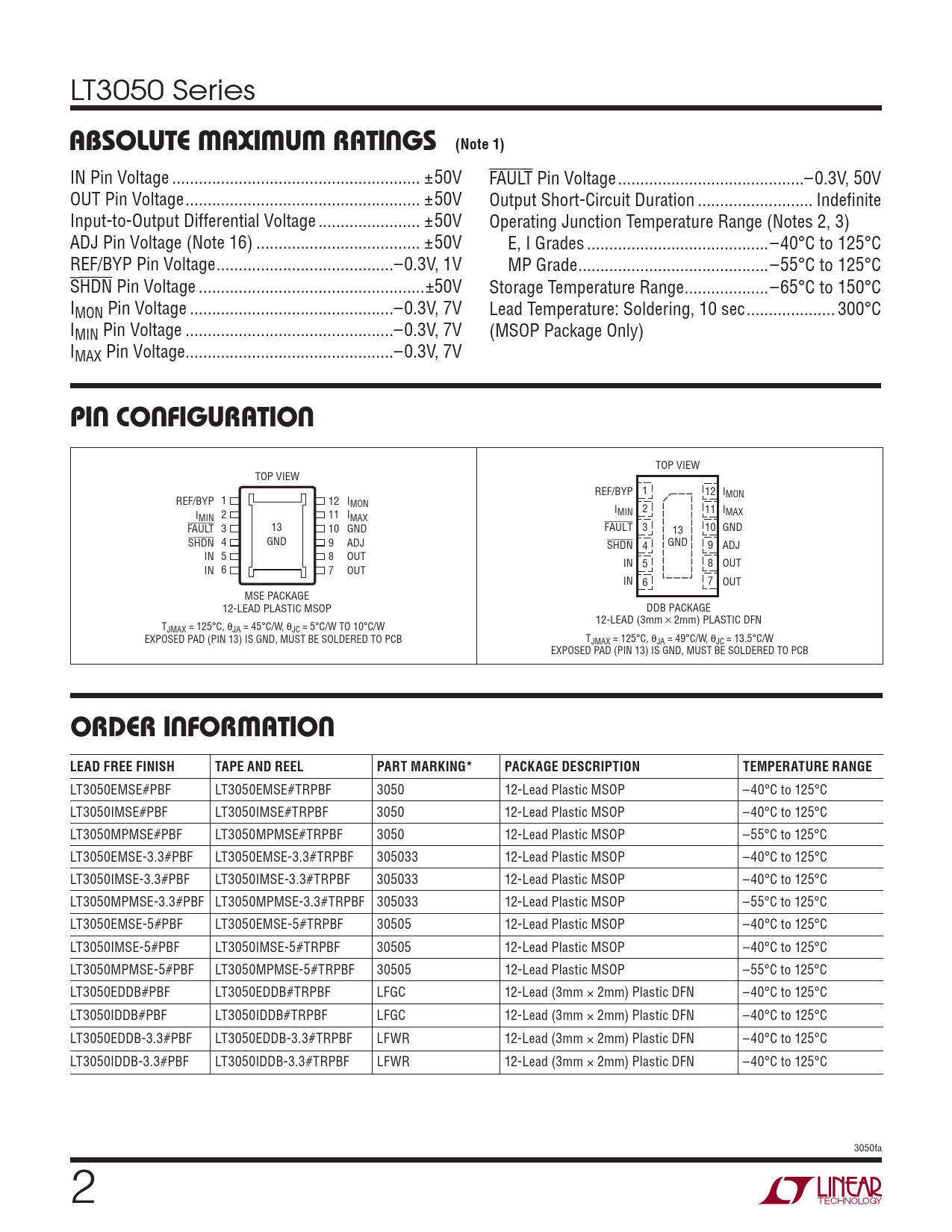

LT3050 Series
ABSOLUTE MAXIMUM RATINGS (Note 1)
IN Pin Voltage .. ±50V FAULT Pin Voltage ..–0.3V, 50V OUT Pin Voltage ... ±50V Output Short-Circuit Duration .. Indefi nite Input-to-Output Differential Voltage ... ±50V Operating Junction Temperature Range (Notes 2, 3) ADJ Pin Voltage (Note 16) ... ±50V E, I Grades ...–40°C to 125°C REF/BYP Pin Voltage ..–0.3V, 1V MP Grade ...–55°C to 125°C SHDN Pin Voltage ...±50V Storage Temperature Range ...–65°C to 150°C IMON Pin Voltage ..–0.3V, 7V Lead Temperature: Soldering, 10 sec .. 300°C IMIN Pin Voltage ...–0.3V, 7V (MSOP Package Only) IMAX Pin Voltage ...–0.3V, 7V
PIN CONFIGURATION
TOP VIEW TOP VIEW REF/BYP 1 12 IMON REF/BYP 1 12 IMON I 2 11 I I 2 MIN MAX MIN 11 IMAX FAULT 3 13 10 GND FAULT 3 10 GND 13 SHDN 4 GND 9 ADJ SHDN GND 4 9 ADJ IN 5 8 OUT IN 5 8 OUT IN 6 7 OUT IN 6 7 OUT MSE PACKAGE 12-LEAD PLASTIC MSOP DDB PACKAGE 12-LEAD (3mm s 2mm) PLASTIC DFN TJMAX = 125°C, θJA = 45°C/W, θJC = 5°C/W TO 10°C/W EXPOSED PAD (PIN 13) IS GND, MUST BE SOLDERED TO PCB TJMAX = 125°C, θJA = 49°C/W, θJC = 13.5°C/W EXPOSED PAD (PIN 13) IS GND, MUST BE SOLDERED TO PCB
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LT3050EMSE#PBF LT3050EMSE#TRPBF 3050 12-Lead Plastic MSOP –40°C to 125°C LT3050IMSE#PBF LT3050IMSE#TRPBF 3050 12-Lead Plastic MSOP –40°C to 125°C LT3050MPMSE#PBF LT3050MPMSE#TRPBF 3050 12-Lead Plastic MSOP –55°C to 125°C LT3050EMSE-3.3#PBF LT3050EMSE-3.3#TRPBF 305033 12-Lead Plastic MSOP –40°C to 125°C LT3050IMSE-3.3#PBF LT3050IMSE-3.3#TRPBF 305033 12-Lead Plastic MSOP –40°C to 125°C LT3050MPMSE-3.3#PBF LT3050MPMSE-3.3#TRPBF 305033 12-Lead Plastic MSOP –55°C to 125°C LT3050EMSE-5#PBF LT3050EMSE-5#TRPBF 30505 12-Lead Plastic MSOP –40°C to 125°C LT3050IMSE-5#PBF LT3050IMSE-5#TRPBF 30505 12-Lead Plastic MSOP –40°C to 125°C LT3050MPMSE-5#PBF LT3050MPMSE-5#TRPBF 30505 12-Lead Plastic MSOP –55°C to 125°C LT3050EDDB#PBF LT3050EDDB#TRPBF LFGC 12-Lead (3mm × 2mm) Plastic DFN –40°C to 125°C LT3050IDDB#PBF LT3050IDDB#TRPBF LFGC 12-Lead (3mm × 2mm) Plastic DFN –40°C to 125°C LT3050EDDB-3.3#PBF LT3050EDDB-3.3#TRPBF LFWR 12-Lead (3mm × 2mm) Plastic DFN –40°C to 125°C LT3050IDDB-3.3#PBF LT3050IDDB-3.3#TRPBF LFWR 12-Lead (3mm × 2mm) Plastic DFN –40°C to 125°C 3050fa 2 Document Outline FEATURES DESCRIPTION APPLICATIONS TYPICAL APPLICATION ABSOLUTE MAXIMUM RATINGS PIN CONFIGURATION ORDER INFORMATION ELECTRICAL CHARACTERISTICS TYPICAL PERFORMANCE CHARACTERISTICS PIN FUNCTIONS BLOCK DIAGRAM OPERATION APPLICATIONS INFORMATION PACKAGE DESCRIPTION REVISION HISTORY TYPICAL APPLICATION RELATED PARTS
