Datasheet LT3050 (Analog Devices) - 3
| Manufacturer | Analog Devices |
| Description | 100mA, Linear Regulator with Precision Current Limit and Diagnostic Outputs |
| Pages / Page | 26 / 3 — ORDER INFORMATION. LEAD FREE FINISH. TAPE AND REEL. PART MARKING*. … |
| File Format / Size | PDF / 409 Kb |
| Document Language | English |
ORDER INFORMATION. LEAD FREE FINISH. TAPE AND REEL. PART MARKING*. PACKAGE DESCRIPTION. TEMPERATURE RANGE. LEAD BASED FINISH
Model Line for this Datasheet
- LT3050EDDB#PBF LT3050EDDB#TRMPBF LT3050EDDB#TRMPBF LT3050EDDB#TRPBF LT3050EDDB#TRPBF LT3050EDDB-3.3#PBF LT3050EDDB-3.3#TRMPBF LT3050EDDB-3.3#TRMPBF LT3050EDDB-3.3#TRPBF LT3050EDDB-3.3#TRPBF LT3050EDDB-5#PBF LT3050EDDB-5#TRMPBF LT3050EDDB-5#TRMPBF LT3050EDDB-5#TRPBF LT3050EDDB-5#TRPBF LT3050EMSE#PBF LT3050EMSE#PBF LT3050EMSE#TRPBF LT3050EMSE#TRPBF LT3050EMSE-3.3#PBF LT3050EMSE-3.3#PBF LT3050EMSE-3.3#TRPBF LT3050EMSE-3.3#TRPBF LT3050EMSE-5#PBF LT3050EMSE-5#PBF LT3050EMSE-5#TRPBF LT3050EMSE-5#TRPBF LT3050IDDB#PBF LT3050IDDB#TRMPBF LT3050IDDB#TRMPBF LT3050IDDB#TRPBF LT3050IDDB#TRPBF LT3050IDDB-3.3#PBF LT3050IDDB-3.3#TRMPBF LT3050IDDB-3.3#TRMPBF LT3050IDDB-3.3#TRPBF LT3050IDDB-3.3#TRPBF LT3050IDDB-5#PBF LT3050IDDB-5#TRMPBF LT3050IDDB-5#TRMPBF LT3050IDDB-5#TRPBF LT3050IDDB-5#TRPBF LT3050IMSE#PBF LT3050IMSE#PBF LT3050IMSE#TRPBF LT3050IMSE#TRPBF LT3050IMSE-3.3#PBF LT3050IMSE-3.3#PBF LT3050IMSE-3.3#TRPBF LT3050IMSE-3.3#TRPBF LT3050IMSE-5#PBF LT3050IMSE-5#PBF LT3050IMSE-5#TRPBF LT3050IMSE-5#TRPBF LT3050MPMSE LT3050MPMSE#PBF LT3050MPMSE#PBF LT3050MPMSE#TRPBF LT3050MPMSE#TRPBF LT3050MPMSE-3.3#PBF LT3050MPMSE-3.3#PBF LT3050MPMSE-3.3#TRPBF LT3050MPMSE-3.3#TRPBF LT3050MPMSE-5#PBF LT3050MPMSE-5#PBF LT3050MPMSE-5#TRPBF LT3050MPMSE-5#TRPBF
Text Version of Document
LT3050 Series

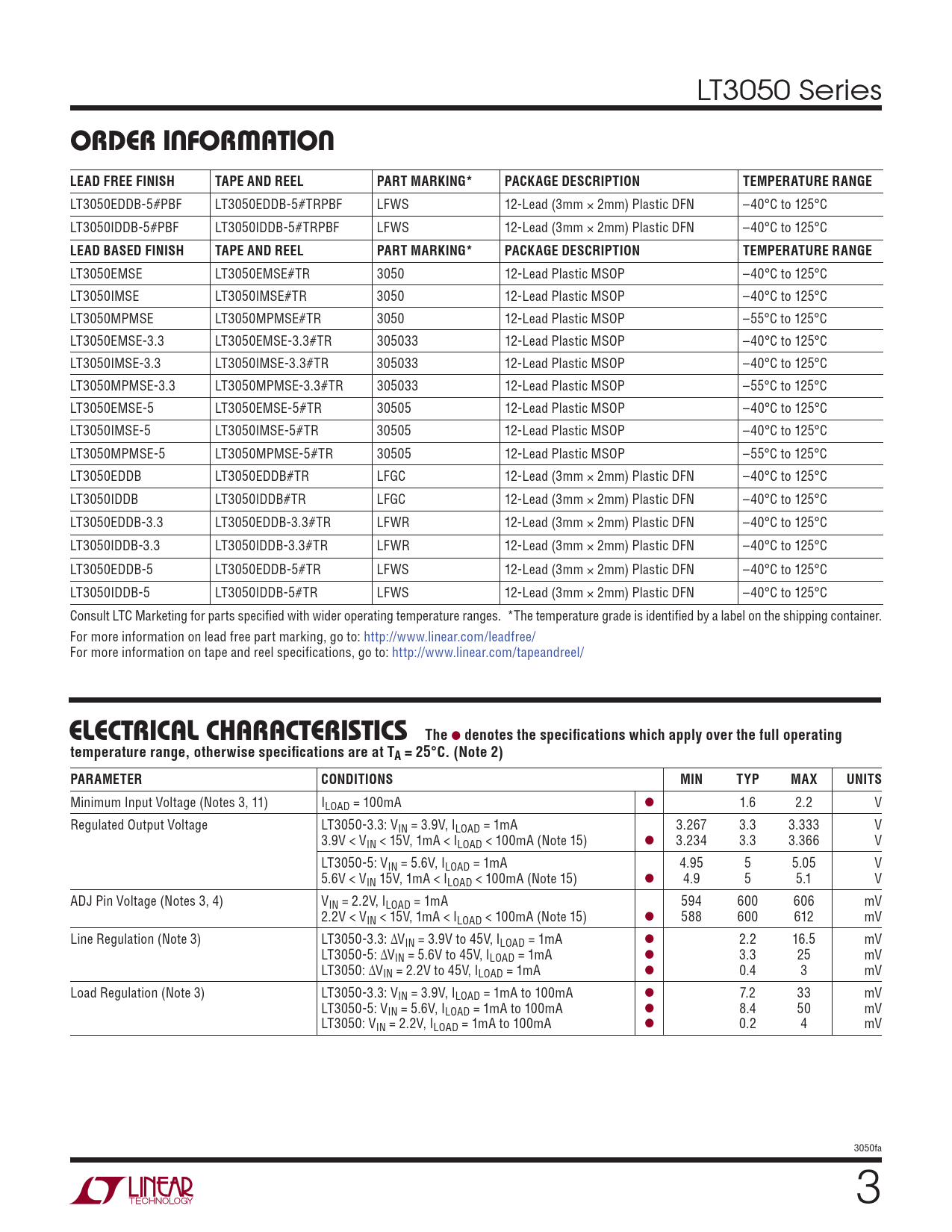

ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LT3050EDDB-5#PBF LT3050EDDB-5#TRPBF LFWS 12-Lead (3mm × 2mm) Plastic DFN –40°C to 125°C LT3050IDDB-5#PBF LT3050IDDB-5#TRPBF LFWS 12-Lead (3mm × 2mm) Plastic DFN –40°C to 125°C
LEAD BASED FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LT3050EMSE LT3050EMSE#TR 3050 12-Lead Plastic MSOP –40°C to 125°C LT3050IMSE LT3050IMSE#TR 3050 12-Lead Plastic MSOP –40°C to 125°C LT3050MPMSE LT3050MPMSE#TR 3050 12-Lead Plastic MSOP –55°C to 125°C LT3050EMSE-3.3 LT3050EMSE-3.3#TR 305033 12-Lead Plastic MSOP –40°C to 125°C LT3050IMSE-3.3 LT3050IMSE-3.3#TR 305033 12-Lead Plastic MSOP –40°C to 125°C LT3050MPMSE-3.3 LT3050MPMSE-3.3#TR 305033 12-Lead Plastic MSOP –55°C to 125°C LT3050EMSE-5 LT3050EMSE-5#TR 30505 12-Lead Plastic MSOP –40°C to 125°C LT3050IMSE-5 LT3050IMSE-5#TR 30505 12-Lead Plastic MSOP –40°C to 125°C LT3050MPMSE-5 LT3050MPMSE-5#TR 30505 12-Lead Plastic MSOP –55°C to 125°C LT3050EDDB LT3050EDDB#TR LFGC 12-Lead (3mm × 2mm) Plastic DFN –40°C to 125°C LT3050IDDB LT3050IDDB#TR LFGC 12-Lead (3mm × 2mm) Plastic DFN –40°C to 125°C LT3050EDDB-3.3 LT3050EDDB-3.3#TR LFWR 12-Lead (3mm × 2mm) Plastic DFN –40°C to 125°C LT3050IDDB-3.3 LT3050IDDB-3.3#TR LFWR 12-Lead (3mm × 2mm) Plastic DFN –40°C to 125°C LT3050EDDB-5 LT3050EDDB-5#TR LFWS 12-Lead (3mm × 2mm) Plastic DFN –40°C to 125°C LT3050IDDB-5 LT3050IDDB-5#TR LFWS 12-Lead (3mm × 2mm) Plastic DFN –40°C to 125°C Consult LTC Marketing for parts specifi ed with wider operating temperature ranges. *The temperature grade is identifi ed by a label on the shipping container. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifi cations, go to: http://www.linear.com/tapeandreel/
