Typical perForMance characTerisTics TA = 25°C, unless otherwise noted. Typical Dropout Voltage. Guaranteed Dropout Voltage
Model Line for this Datasheet
- LT3060EDC#PBF LT3060EDC#TRMPBF LT3060EDC#TRMPBF LT3060EDC#TRPBF LT3060EDC#TRPBF LT3060EDC-1.2#PBF LT3060EDC-1.2#TRMPBF LT3060EDC-1.2#TRMPBF LT3060EDC-1.2#TRPBF LT3060EDC-1.2#TRPBF LT3060EDC-1.5#PBF LT3060EDC-1.5#TRMPBF LT3060EDC-1.5#TRMPBF LT3060EDC-1.5#TRPBF LT3060EDC-1.5#TRPBF LT3060EDC-1.8#PBF LT3060EDC-1.8#TRMPBF LT3060EDC-1.8#TRMPBF LT3060EDC-1.8#TRPBF LT3060EDC-1.8#TRPBF LT3060EDC-15#PBF LT3060EDC-15#TRMPBF LT3060EDC-15#TRMPBF LT3060EDC-15#TRPBF LT3060EDC-15#TRPBF LT3060EDC-2.5#PBF LT3060EDC-2.5#TRMPBF LT3060EDC-2.5#TRMPBF LT3060EDC-2.5#TRPBF LT3060EDC-2.5#TRPBF LT3060EDC-3.3#PBF LT3060EDC-3.3#TRMPBF LT3060EDC-3.3#TRMPBF LT3060EDC-3.3#TRPBF LT3060EDC-3.3#TRPBF LT3060EDC-5#PBF LT3060EDC-5#TRMPBF LT3060EDC-5#TRMPBF LT3060EDC-5#TRPBF LT3060EDC-5#TRPBF LT3060ETS8#PBF LT3060ETS8#TRMPBF LT3060ETS8#TRMPBF LT3060ETS8#TRPBF LT3060ETS8#TRPBF LT3060ETS8-1.2#PBF LT3060ETS8-1.2#TRMPBF LT3060ETS8-1.2#TRMPBF LT3060ETS8-1.2#TRPBF LT3060ETS8-1.2#TRPBF LT3060ETS8-1.5#PBF LT3060ETS8-1.5#TRMPBF LT3060ETS8-1.5#TRMPBF LT3060ETS8-1.5#TRPBF LT3060ETS8-1.5#TRPBF LT3060ETS8-1.8#PBF LT3060ETS8-1.8#TRMPBF LT3060ETS8-1.8#TRMPBF LT3060ETS8-1.8#TRPBF LT3060ETS8-1.8#TRPBF LT3060ETS8-15#PBF LT3060ETS8-15#TRMPBF LT3060ETS8-15#TRMPBF LT3060ETS8-15#TRPBF LT3060ETS8-15#TRPBF LT3060ETS8-2.5#PBF LT3060ETS8-2.5#TRMPBF LT3060ETS8-2.5#TRMPBF LT3060ETS8-2.5#TRPBF LT3060ETS8-2.5#TRPBF LT3060ETS8-3.3#PBF LT3060ETS8-3.3#TRMPBF LT3060ETS8-3.3#TRMPBF LT3060ETS8-3.3#TRPBF LT3060ETS8-3.3#TRPBF LT3060ETS8-5#PBF LT3060ETS8-5#TRMPBF LT3060ETS8-5#TRMPBF LT3060ETS8-5#TRPBF LT3060ETS8-5#TRPBF LT3060HTS8#PBF LT3060HTS8#TRMPBF LT3060HTS8#TRMPBF LT3060HTS8#TRPBF LT3060HTS8#TRPBF LT3060HTS8-1.2#PBF LT3060HTS8-1.2#TRMPBF LT3060HTS8-1.2#TRMPBF LT3060HTS8-1.2#TRPBF LT3060HTS8-1.2#TRPBF LT3060HTS8-1.5#PBF LT3060HTS8-1.5#TRMPBF LT3060HTS8-1.5#TRMPBF LT3060HTS8-1.5#TRPBF LT3060HTS8-1.5#TRPBF LT3060HTS8-1.8#PBF LT3060HTS8-1.8#TRMPBF LT3060HTS8-1.8#TRMPBF LT3060HTS8-1.8#TRPBF LT3060HTS8-1.8#TRPBF LT3060HTS8-15#PBF LT3060HTS8-15#TRMPBF LT3060HTS8-15#TRMPBF LT3060HTS8-15#TRPBF LT3060HTS8-15#TRPBF LT3060HTS8-2.5#PBF LT3060HTS8-2.5#TRMPBF LT3060HTS8-2.5#TRMPBF LT3060HTS8-2.5#TRPBF LT3060HTS8-2.5#TRPBF LT3060HTS8-3.3#PBF LT3060HTS8-3.3#TRMPBF LT3060HTS8-3.3#TRMPBF LT3060HTS8-3.3#TRPBF LT3060HTS8-3.3#TRPBF LT3060HTS8-5#PBF LT3060HTS8-5#TRMPBF LT3060HTS8-5#TRMPBF LT3060HTS8-5#TRPBF LT3060HTS8-5#TRPBF LT3060IDC#PBF LT3060IDC#TRMPBF LT3060IDC#TRMPBF LT3060IDC#TRPBF LT3060IDC#TRPBF LT3060IDC-1.2#PBF LT3060IDC-1.2#TRMPBF LT3060IDC-1.2#TRMPBF LT3060IDC-1.2#TRPBF LT3060IDC-1.2#TRPBF LT3060IDC-1.5#PBF LT3060IDC-1.5#TRMPBF LT3060IDC-1.5#TRMPBF LT3060IDC-1.5#TRPBF LT3060IDC-1.5#TRPBF LT3060IDC-1.8#PBF LT3060IDC-1.8#TRMPBF LT3060IDC-1.8#TRMPBF LT3060IDC-1.8#TRPBF LT3060IDC-1.8#TRPBF LT3060IDC-15#PBF LT3060IDC-15#TRMPBF LT3060IDC-15#TRMPBF LT3060IDC-15#TRPBF LT3060IDC-15#TRPBF LT3060IDC-2.5#PBF LT3060IDC-2.5#TRMPBF LT3060IDC-2.5#TRMPBF LT3060IDC-2.5#TRPBF LT3060IDC-2.5#TRPBF LT3060IDC-3.3#PBF LT3060IDC-3.3#TRMPBF LT3060IDC-3.3#TRMPBF LT3060IDC-3.3#TRPBF LT3060IDC-3.3#TRPBF LT3060IDC-5#PBF LT3060IDC-5#TRMPBF LT3060IDC-5#TRMPBF LT3060IDC-5#TRPBF LT3060IDC-5#TRPBF LT3060ITS8#PBF LT3060ITS8#TRMPBF LT3060ITS8#TRMPBF LT3060ITS8#TRPBF LT3060ITS8#TRPBF LT3060ITS8-1.2#PBF LT3060ITS8-1.2#TRMPBF LT3060ITS8-1.2#TRMPBF LT3060ITS8-1.2#TRPBF LT3060ITS8-1.2#TRPBF LT3060ITS8-1.5#PBF LT3060ITS8-1.5#TRMPBF LT3060ITS8-1.5#TRMPBF LT3060ITS8-1.5#TRPBF LT3060ITS8-1.5#TRPBF LT3060ITS8-1.8#PBF LT3060ITS8-1.8#TRMPBF LT3060ITS8-1.8#TRMPBF LT3060ITS8-1.8#TRPBF LT3060ITS8-1.8#TRPBF LT3060ITS8-15#PBF LT3060ITS8-15#TRMPBF LT3060ITS8-15#TRMPBF LT3060ITS8-15#TRPBF LT3060ITS8-15#TRPBF LT3060ITS8-2.5#PBF LT3060ITS8-2.5#TRMPBF LT3060ITS8-2.5#TRMPBF LT3060ITS8-2.5#TRPBF LT3060ITS8-2.5#TRPBF LT3060ITS8-3.3#PBF LT3060ITS8-3.3#TRMPBF LT3060ITS8-3.3#TRMPBF LT3060ITS8-3.3#TRPBF LT3060ITS8-3.3#TRPBF LT3060ITS8-5#PBF LT3060ITS8-5#TRMPBF LT3060ITS8-5#TRMPBF LT3060ITS8-5#TRPBF LT3060ITS8-5#TRPBF LT3060MPTS8#PBF LT3060MPTS8#TRMPBF LT3060MPTS8#TRMPBF LT3060MPTS8#TRPBF LT3060MPTS8#TRPBF LT3060MPTS8-1.2#PBF LT3060MPTS8-1.2#TRMPBF LT3060MPTS8-1.2#TRMPBF LT3060MPTS8-1.2#TRPBF LT3060MPTS8-1.2#TRPBF LT3060MPTS8-1.5#PBF LT3060MPTS8-1.5#TRMPBF LT3060MPTS8-1.5#TRMPBF LT3060MPTS8-1.5#TRPBF LT3060MPTS8-1.5#TRPBF LT3060MPTS8-1.8#PBF LT3060MPTS8-1.8#TRMPBF LT3060MPTS8-1.8#TRMPBF LT3060MPTS8-1.8#TRPBF LT3060MPTS8-1.8#TRPBF LT3060MPTS8-15#PBF LT3060MPTS8-15#TRMPBF LT3060MPTS8-15#TRMPBF LT3060MPTS8-15#TRPBF LT3060MPTS8-15#TRPBF LT3060MPTS8-2.5#PBF LT3060MPTS8-2.5#TRM LT3060MPTS8-2.5#TRMPBF LT3060MPTS8-2.5#TRMPBF LT3060MPTS8-2.5#TRPBF LT3060MPTS8-2.5#TRPBF LT3060MPTS8-3.3 LT3060MPTS8-3.3#PBF LT3060MPTS8-3.3#TR LT3060MPTS8-3.3#TRMPBF LT3060MPTS8-3.3#TRMPBF LT3060MPTS8-3.3#TRPBF LT3060MPTS8-3.3#TRPBF LT3060MPTS8-5#PBF LT3060MPTS8-5#TR LT3060MPTS8-5#TRMPBF LT3060MPTS8-5#TRMPBF LT3060MPTS8-5#TRPBF LT3060MPTS8-5#TRPBF
Text Version of Document
LT3060 Series

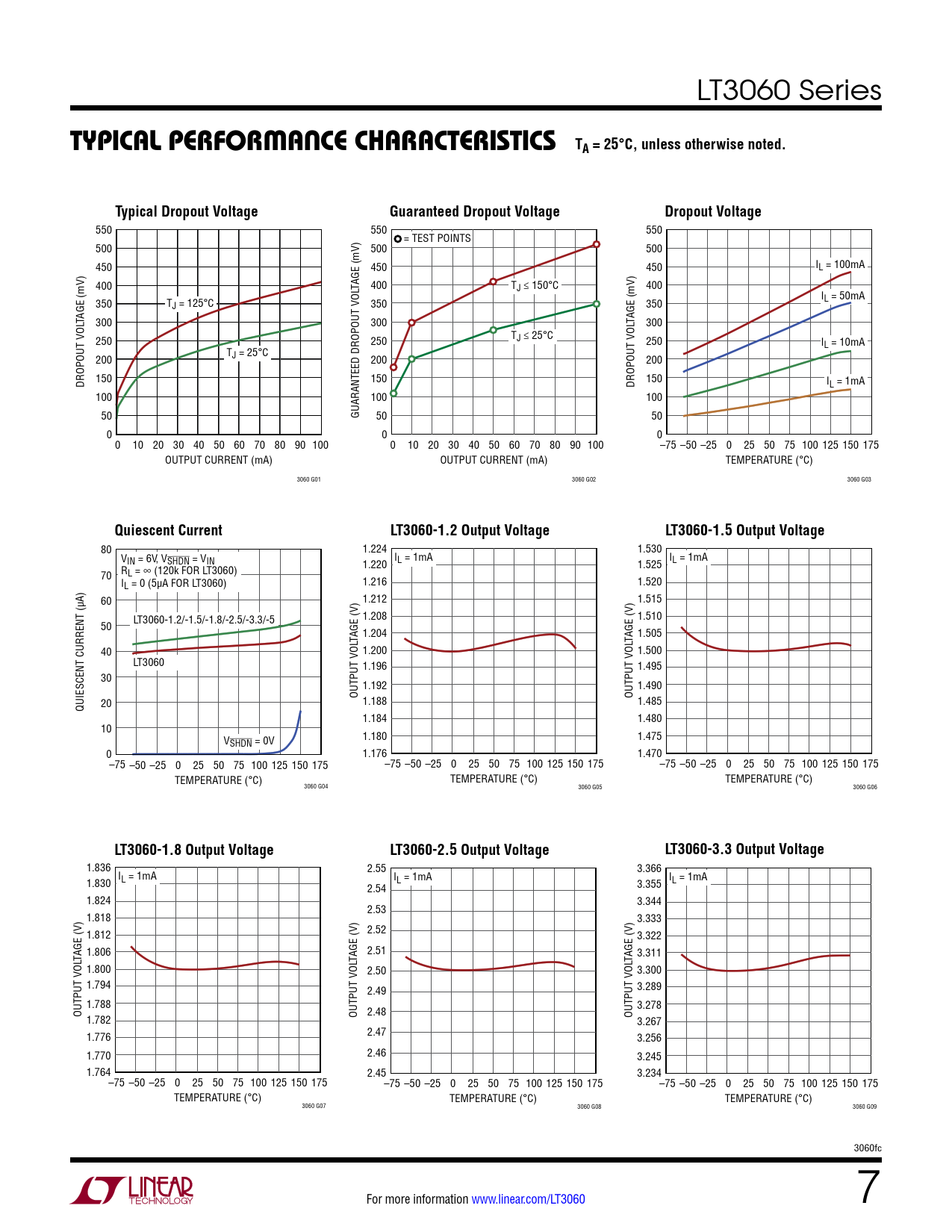

Typical perForMance characTerisTics TA = 25°C, unless otherwise noted. Typical Dropout Voltage Guaranteed Dropout Voltage Dropout Voltage
550 550 550 = TEST POINTS 500 500 500 450 450 450 IL = 100mA 400 TAGE (mV) 400 TJ ≤ 150°C 400 I 350 T L = 50mA J = 125°C 350 350 TAGE (mV) 300 300 TAGE (mV) 300 250 250 TJ ≤ 25°C 250 IL = 10mA T 200 J = 25°C 200 200 DROPOUT VOL 150 150 DROPOUT VOL 150 IL = 1mA 100 100 100 50 GUARANTEED DROPOUT VOL 50 50 0 0 0 0 10 20 30 40 50 60 70 80 90 100 0 10 20 30 40 50 60 70 80 90 100 –75 –50 –25 0 25 50 75 100 125 150 175 OUTPUT CURRENT (mA) OUTPUT CURRENT (mA) TEMPERATURE (°C) 3060 G01 3060 G02 3060 G03
Quiescent Current LT3060-1.2 Output Voltage LT3060-1.5 Output Voltage
80 1.224 1.530 VIN = 6V, VSHDN = VIN I I 1.220 L = 1mA 1.525 L = 1mA 70 RL = ∞ (120k FOR LT3060) IL = 0 (5µA FOR LT3060) 1.216 1.520 60 1.212 1.515 1.208 1.510 50 LT3060-1.2/-1.5/-1.8/-2.5/-3.3/-5 TAGE (V) 1.204 TAGE (V) 1.505 40 1.200 1.500 LT3060 1.196 1.495 30 1.192 1.490 OUTPUT VOL OUTPUT VOL QUIESCENT CURRENT (µA) 20 1.188 1.485 1.184 1.480 10 V 1.180 1.475 SHDN = 0V 0 1.176 1.470 –75 –50 –25 0 25 50 75 100 125 150 175 –75 –50 –25 0 25 50 75 100 125 150 175 –75 –50 –25 0 25 50 75 100 125 150 175 TEMPERATURE (°C) TEMPERATURE (°C) TEMPERATURE (°C) 3060 G04 3060 G05 3060 G06
LT3060-1.8 Output Voltage LT3060-2.5 Output Voltage LT3060-3.3 Output Voltage
1.836 2.55 3.366 I 1.830 L = 1mA IL = 1mA IL = 1mA 2.54 3.355 1.824 3.344 2.53 1.818 3.333 1.812 2.52 3.322 2.51 TAGE (V) 1.806 TAGE (V) TAGE (V) 3.311 1.800 2.50 3.300 1.794 2.49 3.289 1.788 3.278 OUTPUT VOL 2.48 1.782 OUTPUT VOL OUTPUT VOL 3.267 1.776 2.47 3.256 1.770 2.46 3.245 1.764 2.45 3.234 –75 –50 –25 0 25 50 75 100 125 150 175 –75 –50 –25 0 25 50 75 100 125 150 175 –75 –50 –25 0 25 50 75 100 125 150 175 TEMPERATURE (°C) TEMPERATURE (°C) TEMPERATURE (°C) 3060 G07 3060 G08 3060 G09 3060fc For more information www.linear.com/LT3060 7 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Applications Information Typical Application Revision History Typical Application Related Parts
