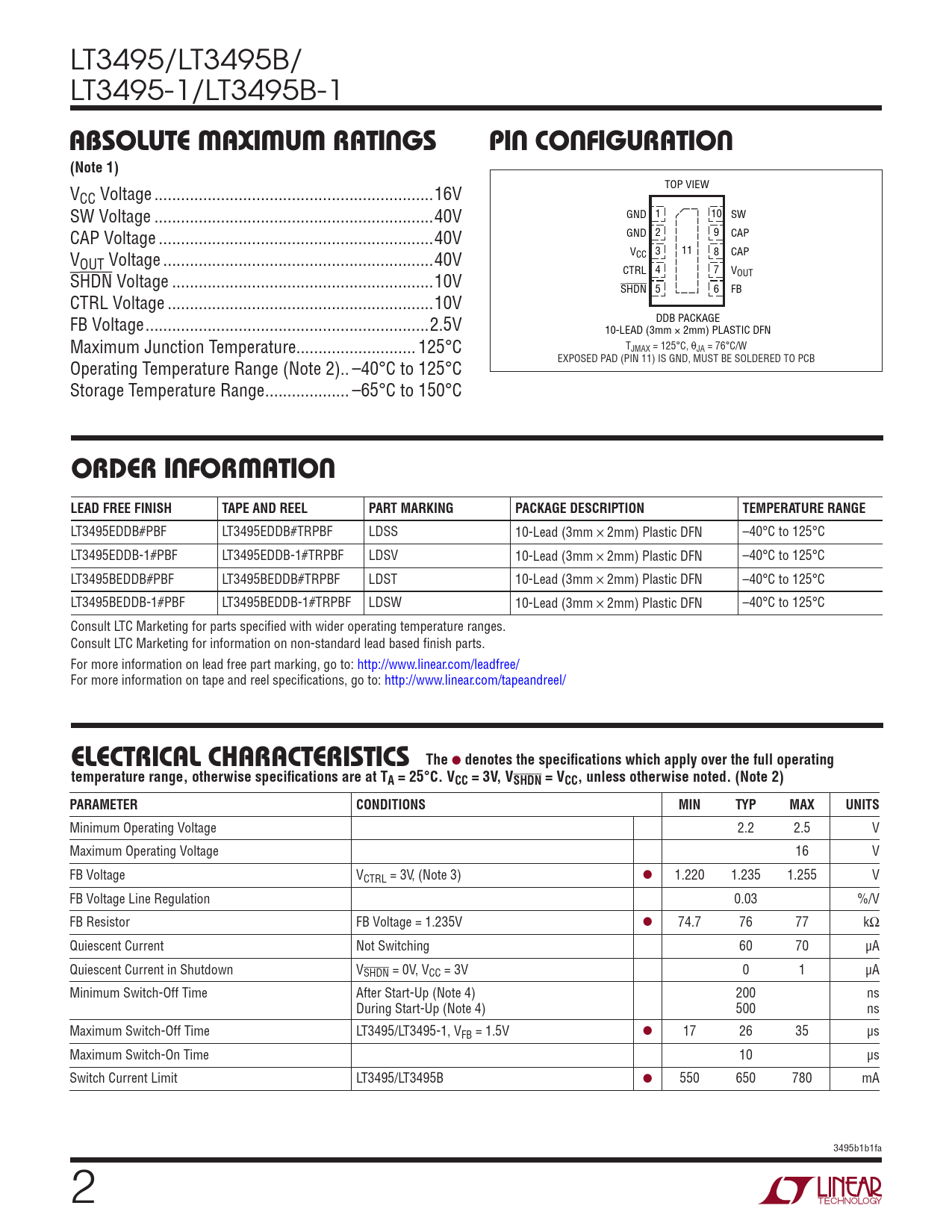

LT3495/LT3495B/ LT3495-1/LT3495B-1
ABSOLUTE MAXIMUM RATINGS PIN CONFIGURATION (Note 1)
V TOP VIEW CC Voltage ...16V SW Voltage ...40V GND 1 10 SW CAP Voltage ..40V GND 2 9 CAP V V 3 11 CC 8 CAP OUT Voltage ...40V SHDN Voltage ...10V CTRL 4 7 VOUT SHDN 5 6 FB CTRL Voltage ..10V FB Voltage ..2.5V DDB PACKAGE 10-LEAD (3mm × 2mm) PLASTIC DFN Maximum Junction Temperature... 125°C TJMAX = 125°C, θJA = 76°C/W Operating Temperature Range (Note 2).. –40°C to 125°C EXPOSED PAD (PIN 11) IS GND, MUST BE SOLDERED TO PCB Storage Temperature Range ... –65°C to 150°C
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING PACKAGE DESCRIPTION TEMPERATURE RANGE
LT3495EDDB#PBF LT3495EDDB#TRPBF LDSS 10-Lead (3mm × 2mm) Plastic DFN –40°C to 125°C LT3495EDDB-1#PBF LT3495EDDB-1#TRPBF LDSV 10-Lead (3mm × 2mm) Plastic DFN –40°C to 125°C LT3495BEDDB#PBF LT3495BEDDB#TRPBF LDST 10-Lead (3mm × 2mm) Plastic DFN –40°C to 125°C LT3495BEDDB-1#PBF LT3495BEDDB-1#TRPBF LDSW 10-Lead (3mm × 2mm) Plastic DFN –40°C to 125°C Consult LTC Marketing for parts specified with wider operating temperature ranges. Consult LTC Marketing for information on non-standard lead based finish parts. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/
