Datasheet LT3495, LT3495B, LT3495-1, LT3495B-1 (Analog Devices) - 5
| Manufacturer | Analog Devices |
| Description | 650mA Micropower Low Noise Boost Converter with Output Disconnect |
| Pages / Page | 16 / 5 — TYPICAL PERFORMANCE CHARACTERISTICS. TA = 25°C unless otherwise noted. … |
| File Format / Size | PDF / 647 Kb |
| Document Language | English |
TYPICAL PERFORMANCE CHARACTERISTICS. TA = 25°C unless otherwise noted. LT3495 Switching Waveform. at No Load. at 10mA
Model Line for this Datasheet
Text Version of Document
LT3495/LT3495B/ LT3495-1/LT3495B-1

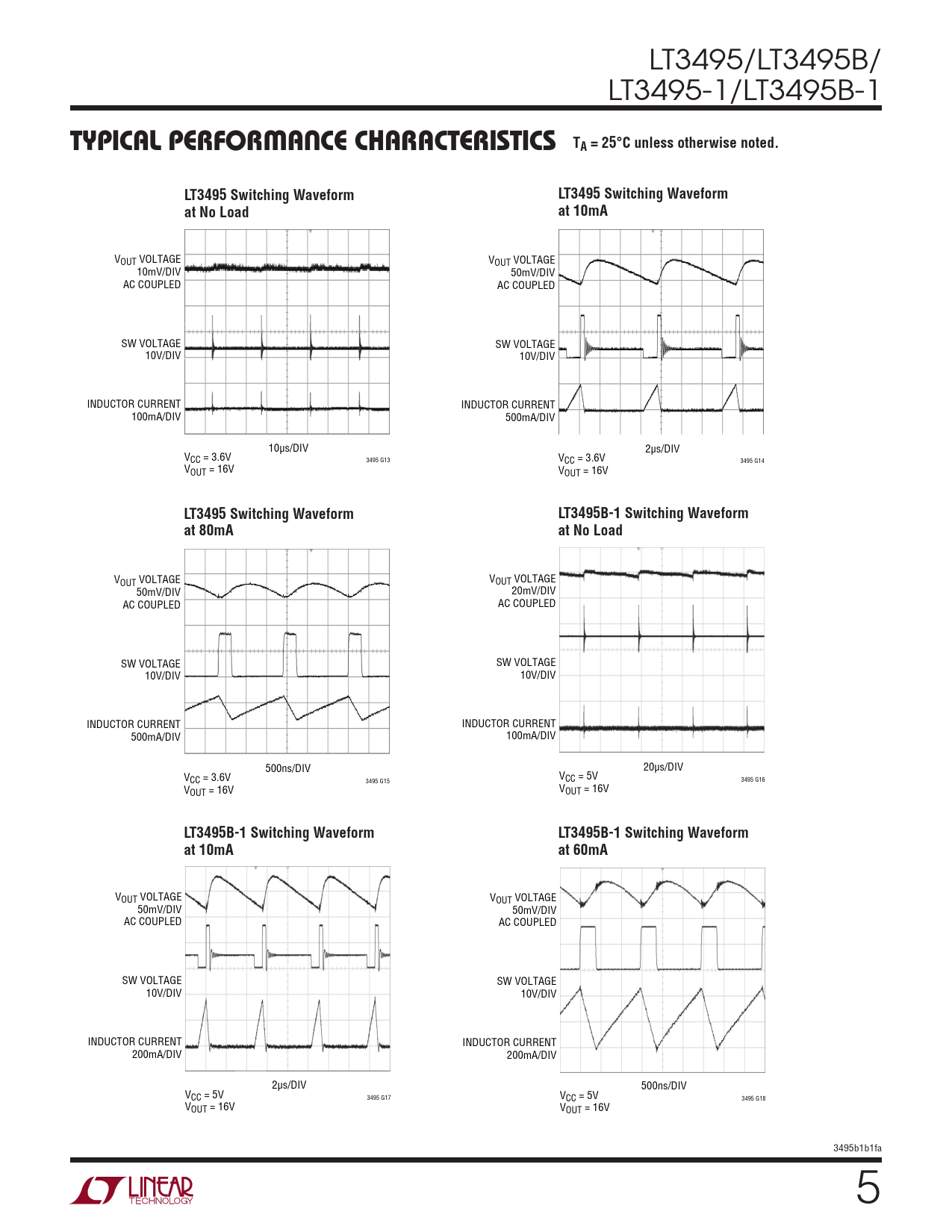

TYPICAL PERFORMANCE CHARACTERISTICS TA = 25°C unless otherwise noted. LT3495 Switching Waveform LT3495 Switching Waveform at No Load at 10mA
VOUT VOLTAGE VOUT VOLTAGE 10mV/DIV 50mV/DIV AC COUPLED AC COUPLED SW VOLTAGE SW VOLTAGE 10V/DIV 10V/DIV INDUCTOR CURRENT INDUCTOR CURRENT 100mA/DIV 500mA/DIV 10µs/DIV 2µs/DIV VCC = 3.6V 3495 G13 VCC = 3.6V 3495 G14 VOUT = 16V VOUT = 16V
LT3495 Switching Waveform LT3495B-1 Switching Waveform at 80mA at No Load
VOUT VOLTAGE VOUT VOLTAGE 50mV/DIV 20mV/DIV AC COUPLED AC COUPLED SW VOLTAGE SW VOLTAGE 10V/DIV 10V/DIV INDUCTOR CURRENT INDUCTOR CURRENT 500mA/DIV 100mA/DIV 500ns/DIV 20µs/DIV VCC = 3.6V V 3495 G15 CC = 5V 3495 G16 VOUT = 16V VOUT = 16V
LT3495B-1 Switching Waveform LT3495B-1 Switching Waveform at 10mA at 60mA
VOUT VOLTAGE VOUT VOLTAGE 50mV/DIV 50mV/DIV AC COUPLED AC COUPLED SW VOLTAGE SW VOLTAGE 10V/DIV 10V/DIV INDUCTOR CURRENT INDUCTOR CURRENT 200mA/DIV 200mA/DIV 2µs/DIV 500ns/DIV VCC = 5V 3495 G17 VCC = 5V 3495 G18 VOUT = 16V VOUT = 16V 3495b1b1fa 5 Document Outline Features Description Applications Typical Application Absolute Maximum Ratings Pin Configuration Order Infomation Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Operation Applications Information Typical Applications Package Description Typical Application Related Parts
