Datasheet LT8330 (Analog Devices) - 2
| Manufacturer | Analog Devices |
| Description | Low IQ Boost/SEPIC/Inverting Converter with 1A, 60V Switch |
| Pages / Page | 24 / 2 — absoluTe MaxiMuM raTings (Note 1). pin conFiguraTion. orDer inForMaTion … |
| File Format / Size | PDF / 1.7 Mb |
| Document Language | English |
absoluTe MaxiMuM raTings (Note 1). pin conFiguraTion. orDer inForMaTion (http://www.linear.com/product/LT8330#orderinfo)
Model Line for this Datasheet
Text Version of Document

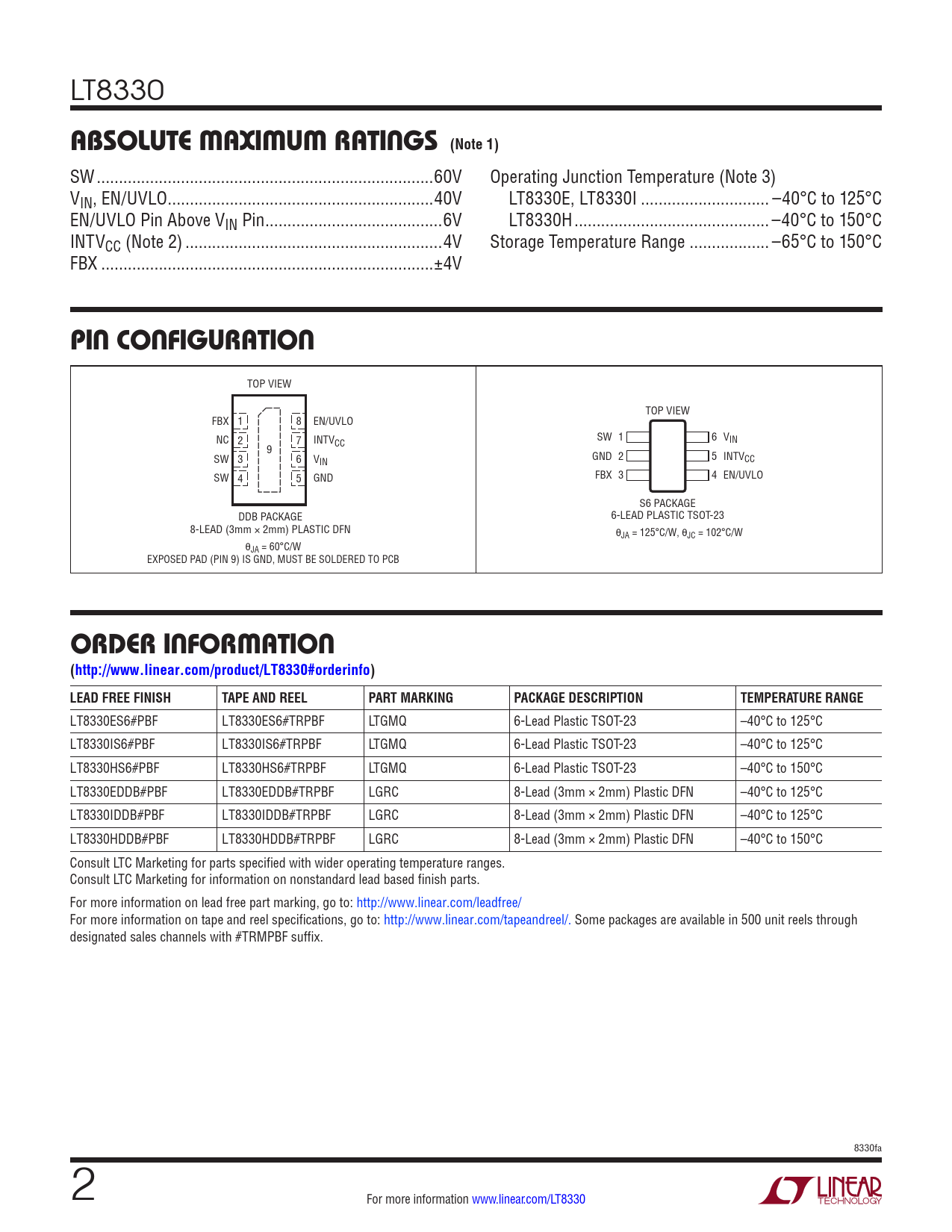

LT8330
absoluTe MaxiMuM raTings (Note 1)
SW ..60V Operating Junction Temperature (Note 3) VIN, EN/UVLO ..40V LT8330E, LT8330I ... –40°C to 125°C EN/UVLO Pin Above VIN Pin ..6V LT8330H .. –40°C to 150°C INTVCC (Note 2) ..4V Storage Temperature Range .. –65°C to 150°C FBX ...±4V
pin conFiguraTion
TOP VIEW TOP VIEW FBX 1 8 EN/UVLO NC 2 7 INTV SW 1 6 VIN 9 CC SW 3 6 V GND 2 5 INTV IN CC SW 4 5 GND FBX 3 4 EN/UVLO S6 PACKAGE DDB PACKAGE 6-LEAD PLASTIC TSOT-23 8-LEAD (3mm × 2mm) PLASTIC DFN θJA = 125°C/W, θJC = 102°C/W θJA = 60°C/W EXPOSED PAD (PIN 9) IS GND, MUST BE SOLDERED TO PCB
orDer inForMaTion (http://www.linear.com/product/LT8330#orderinfo) LEAD FREE FINISH TAPE AND REEL PART MARKING PACKAGE DESCRIPTION TEMPERATURE RANGE
LT8330ES6#PBF LT8330ES6#TRPBF LTGMQ 6-Lead Plastic TSOT-23 –40°C to 125°C LT8330IS6#PBF LT8330IS6#TRPBF LTGMQ 6-Lead Plastic TSOT-23 –40°C to 125°C LT8330HS6#PBF LT8330HS6#TRPBF LTGMQ 6-Lead Plastic TSOT-23 –40°C to 150°C LT8330EDDB#PBF LT8330EDDB#TRPBF LGRC 8-Lead (3mm × 2mm) Plastic DFN –40°C to 125°C LT8330IDDB#PBF LT8330IDDB#TRPBF LGRC 8-Lead (3mm × 2mm) Plastic DFN –40°C to 125°C LT8330HDDB#PBF LT8330HDDB#TRPBF LGRC 8-Lead (3mm × 2mm) Plastic DFN –40°C to 150°C Consult LTC Marketing for parts specified with wider operating temperature ranges. Consult LTC Marketing for information on nonstandard lead based finish parts. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/. Some packages are available in 500 unit reels through designated sales channels with #TRMPBF suffix. 8330fa 2 For more information www.linear.com/LT8330 Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Operation Applications Information Typical Applications Package Description Revision History Typical Application Related Parts
