TYPICAL PERFORMANCE CHARACTERISTICS TA = 25°C, unless otherwise specified. Oscillator Frequency During. Soft-Start
Model Line for this Datasheet
- LT8570EDD#PBF LT8570EDD#PBF LT8570EDD#TRPBF LT8570EDD#TRPBF LT8570EDD-1#PBF LT8570EDD-1#TRPBF LT8570EMS8E#PBF LT8570EMS8E#PBF LT8570EMS8E#TRPBF LT8570EMS8E#TRPBF LT8570EMS8E-1#PBF LT8570EMS8E-1#TRPBF LT8570HDD#PBF LT8570HDD-1#PBF LT8570HMS8E#PBF LT8570HMS8E-1#PBF LT8570IDD#PBF LT8570IDD#PBF LT8570IDD#TRPBF LT8570IDD#TRPBF LT8570IDD-1#PBF LT8570IDD-1#TRPBF LT8570IMS8E#PBF LT8570IMS8E#PBF LT8570IMS8E#TRPBF LT8570IMS8E#TRPBF LT8570IMS8E-1#PBF LT8570IMS8E-1#TRPBF
Text Version of Document
LT8570/LT8570-1

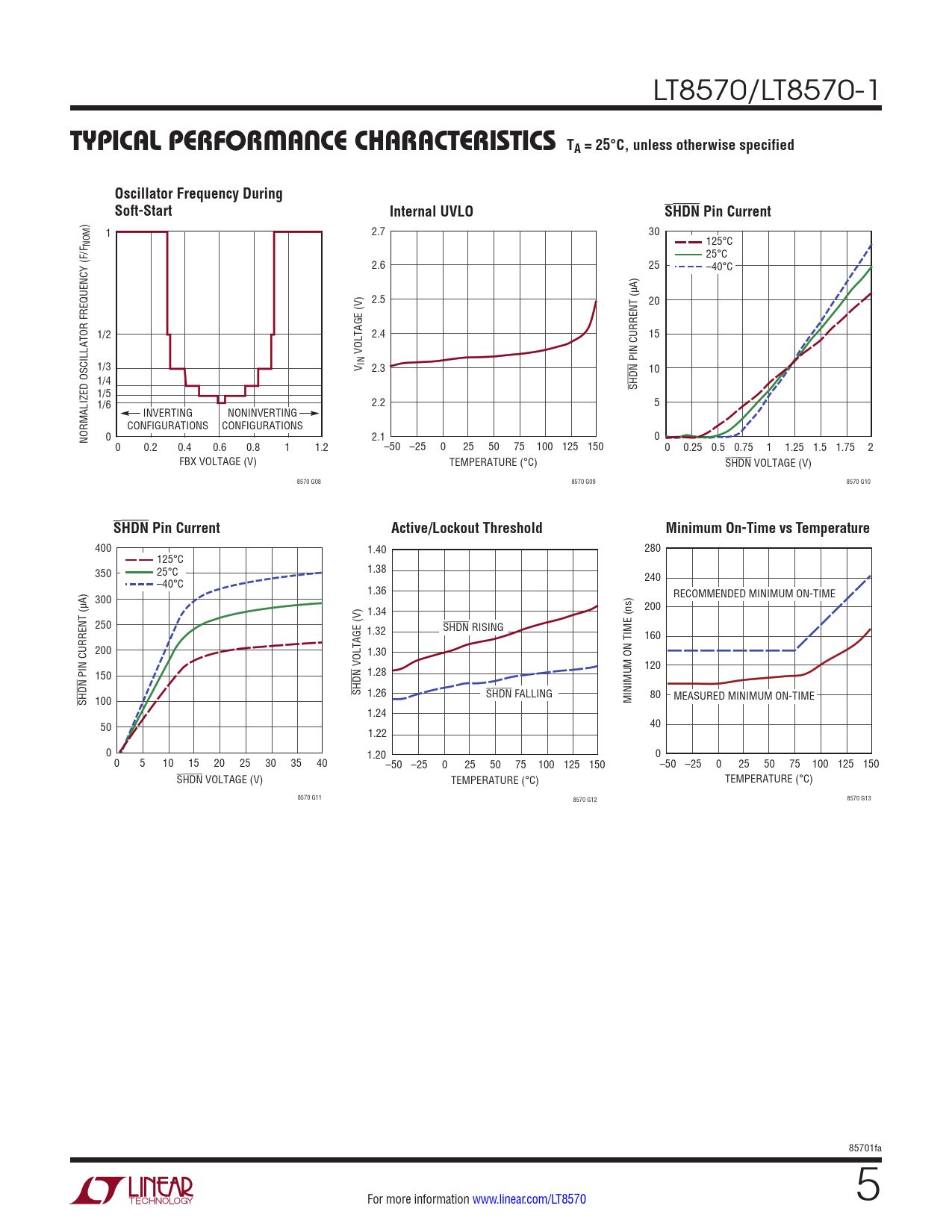

TYPICAL PERFORMANCE CHARACTERISTICS TA = 25°C, unless otherwise specified Oscillator Frequency During Soft-Start Internal UVLO SHDN Pin Current
