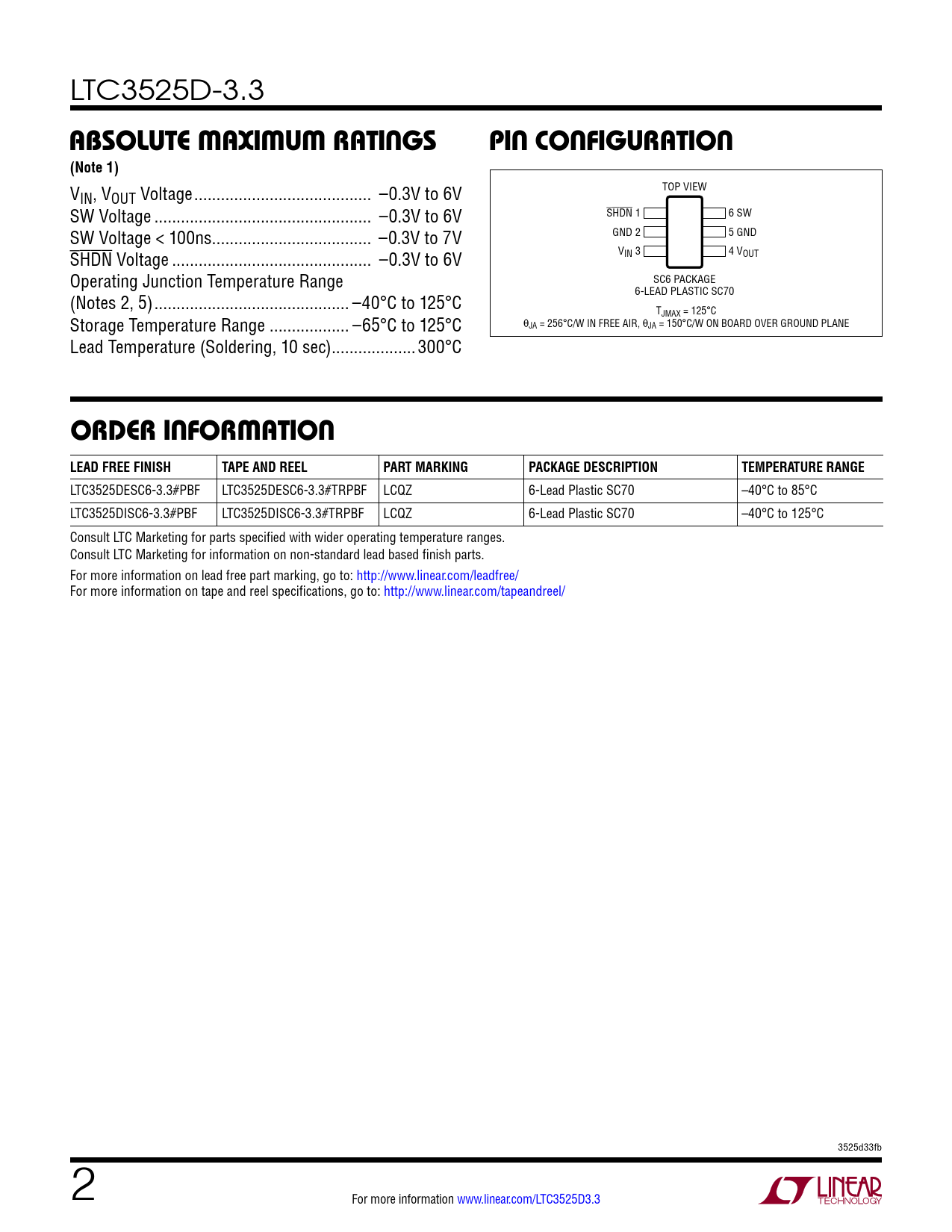

LTC3525D-3.3
absoluTe MaxiMuM raTings pin conFiguraTion (Note 1)
V TOP VIEW IN, VOUT Voltage .. –0.3V to 6V SW Voltage ... –0.3V to 6V SHDN 1 6 SW SW Voltage < 100ns .. –0.3V to 7V GND 2 5 GND SHDN Voltage ... –0.3V to 6V VIN 3 4 VOUT Operating Junction Temperature Range SC6 PACKAGE (Notes 2, 5) .. –40°C to 125°C 6-LEAD PLASTIC SC70 T Storage Temperature Range .. –65°C to 125°C JMAX = 125°C θJA = 256°C/W IN FREE AIR, θJA = 150°C/W ON BOARD OVER GROUND PLANE Lead Temperature (Soldering, 10 sec) ...300°C
orDer inForMaTion LEAD FREE FINISH TAPE AND REEL PART MARKING PACKAGE DESCRIPTION TEMPERATURE RANGE
LTC3525DESC6-3.3#PBF LTC3525DESC6-3.3#TRPBF LCQZ 6-Lead Plastic SC70 –40°C to 85°C LTC3525DISC6-3.3#PBF LTC3525DISC6-3.3#TRPBF LCQZ 6-Lead Plastic SC70 –40°C to 125°C Consult LTC Marketing for parts specified with wider operating temperature ranges. Consult LTC Marketing for information on non-standard lead based finish parts. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/ 3525d33fb 2 For more information www.linear.com/LTC3525D3.3 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Operation Typical Applications Package Description Revision History Related Parts
