Datasheet LT3590 (Analog Devices) - 2
| Manufacturer | Analog Devices |
| Description | 48V Buck Mode LED Driver in SC70 and 2mm × 2mm DFN |
| Pages / Page | 16 / 2 — ABSOLUTE MAXIMUM RATINGS. (Note 1). PIN CONFIGURATION. ORDER INFORMATION. … |
| File Format / Size | PDF / 237 Kb |
| Document Language | English |
ABSOLUTE MAXIMUM RATINGS. (Note 1). PIN CONFIGURATION. ORDER INFORMATION. LEAD FREE FINISH. TAPE AND REEL. PART MARKING
Model Line for this Datasheet
Text Version of Document

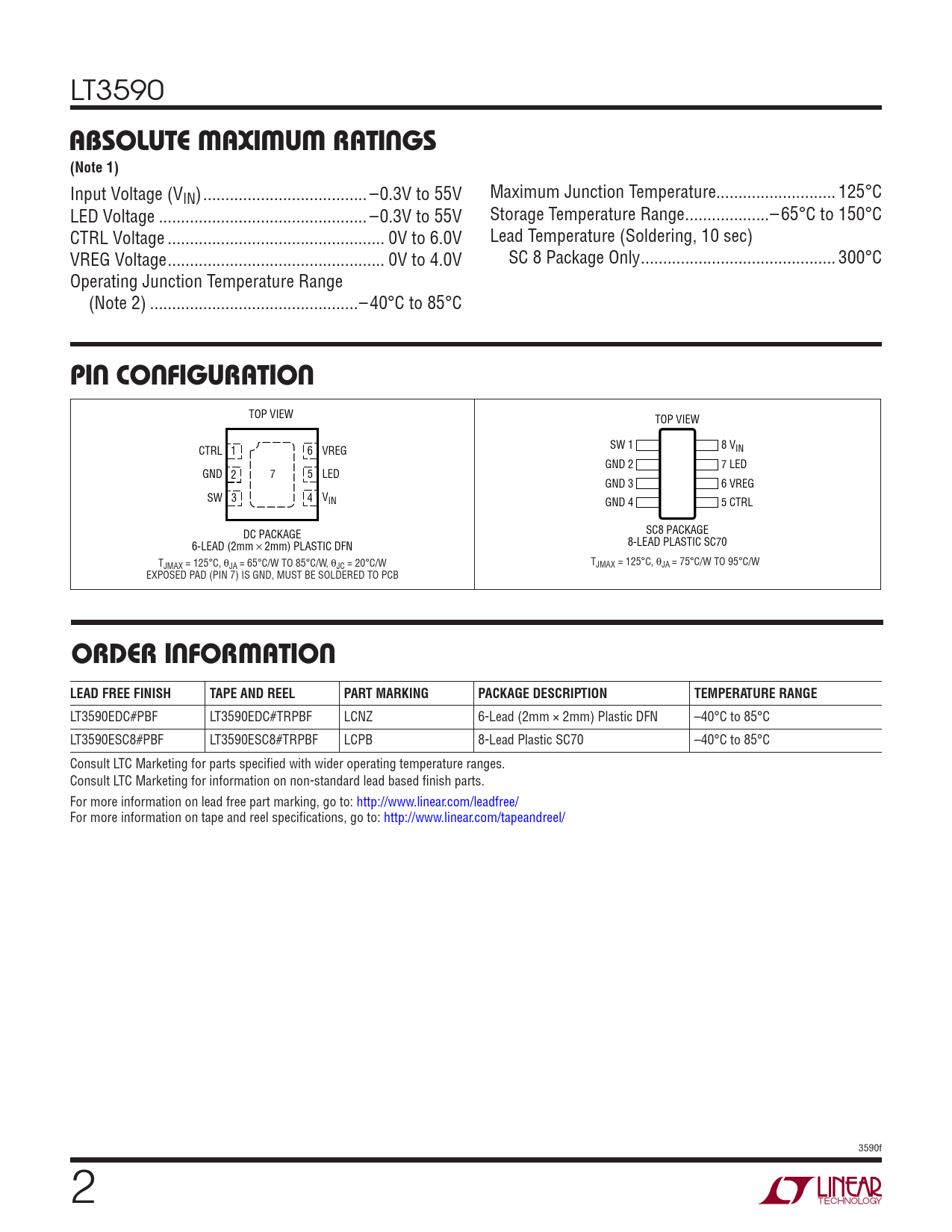

LT3590
ABSOLUTE MAXIMUM RATINGS (Note 1)
Input Voltage (VIN) ... –0.3V to 55V Maximum Junction Temperature... 125°C LED Voltage ... –0.3V to 55V Storage Temperature Range ...– 65°C to 150°C CTRL Voltage ... 0V to 6.0V Lead Temperature (Soldering, 10 sec) VREG Voltage ... 0V to 4.0V SC 8 Package Only .. 300°C Operating Junction Temperature Range (Note 2) ...– 40°C to 85°C
PIN CONFIGURATION
TOP VIEW TOP VIEW SW 1 8 V CTRL 1 6 VREG IN GND 2 7 LED GND 2 7 5 LED GND 3 6 VREG SW 3 4 VIN GND 4 5 CTRL DC PACKAGE SC8 PACKAGE 6-LEAD (2mm × 2mm) PLASTIC DFN 8-LEAD PLASTIC SC70 T T JMAX = 125°C, θJA = 65°C/W TO 85°C/W, θJC = 20°C/W JMAX = 125°C, θJA = 75°C/W TO 95°C/W EXPOSED PAD (PIN 7) IS GND, MUST BE SOLDERED TO PCB
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING PACKAGE DESCRIPTION TEMPERATURE RANGE
LT3590EDC#PBF LT3590EDC#TRPBF LCNZ 6-Lead (2mm × 2mm) Plastic DFN –40°C to 85°C LT3590ESC8#PBF LT3590ESC8#TRPBF LCPB 8-Lead Plastic SC70 –40°C to 85°C Consult LTC Marketing for parts specifi ed with wider operating temperature ranges. Consult LTC Marketing for information on non-standard lead based fi nish parts. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifi cations, go to: http://www.linear.com/tapeandreel/ 3590f 2
