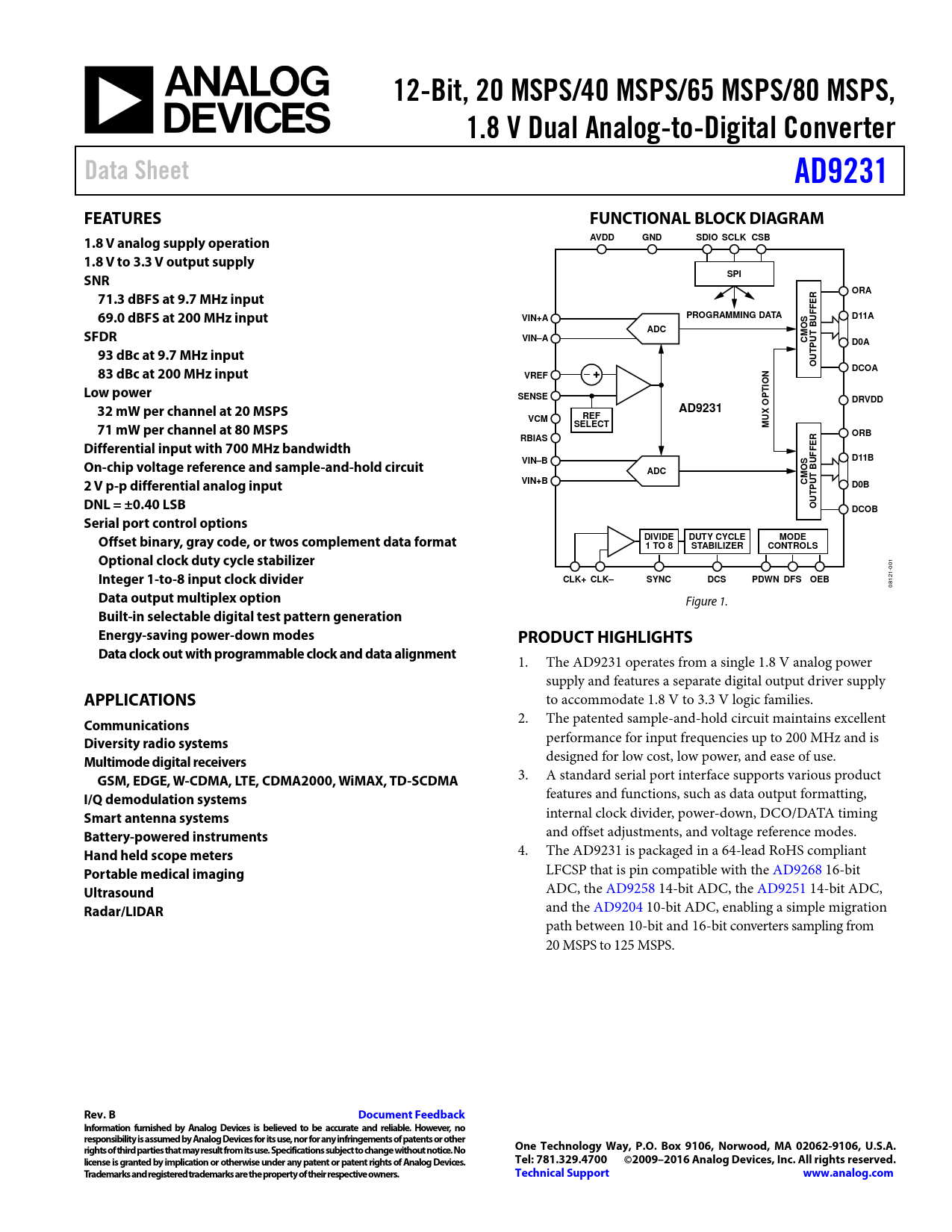

12-Bit, 20 MSPS/40 MSPS/65 MSPS/80 MSPS, 1.8 V Dual Analog-to-Digital Converter Data Sheet AD9231 FEATURES FUNCTIONAL BLOCK DIAGRAM 1.8 V analog supply operation AVDD GND SDIO SCLK CSB 1.8 V to 3.3 V output supply SNR SPI ORA 71.3 dBFS at 9.7 MHz input R 69.0 dBFS at 200 MHz input FFE VIN+A PROGRAMMING DATA D11A S U O SFDR ADC T B VIN–A CM U D0A 93 dBc at 9.7 MHz input TP OU 83 dBc at 200 MHz input DCOA VREF Low power TION SENSE DRVDD 32 mW per channel at 20 MSPS OP AD9231 X VCM REF U 71 mW per channel at 80 MSPS SELECT M ORB RBIAS R Differential input with 700 MHz bandwidth FFE D11B On-chip voltage reference and sample-and-hold circuit VIN–B S U ADC O T B 2 V p-p differential analog input VIN+B CM U D0B TP DNL = ±0.40 LSB OU DCOB Serial port control options Offset binary, gray code, or twos complement data format DIVIDE DUTY CYCLE MODE 1 TO 8 STABILIZER CONTROLS Optional clock duty cycle stabilizer
001
Integer 1-to-8 input clock divider CLK+ CLK– SYNC DCS PDWN DFS OEB
08121-
Data output multiplex option
Figure 1.
Built-in selectable digital test pattern generation Energy-saving power-down modes PRODUCT HIGHLIGHTS Data clock out with programmable clock and data alignment
1. The AD9231 operates from a single 1.8 V analog power

supply and features a separate digital output driver supply
APPLICATIONS
to accommodate 1.8 V to 3.3 V logic families.
Communications
2. The patented sample-and-hold circuit maintains excellent
Diversity radio systems
performance for input frequencies up to 200 MHz and is
Multimode digital receivers
designed for low cost, low power, and ease of use.
GSM, EDGE, W-CDMA, LTE, CDMA2000, WiMAX, TD-SCDMA
3. A standard serial port interface supports various product
I/Q demodulation systems
features and functions, such as data output formatting,
Smart antenna systems
internal clock divider, power-down, DCO/DATA timing
Battery-powered instruments
and offset adjustments, and voltage reference modes.
Hand held scope meters
4. The AD9231 is packaged in a 64-lead RoHS compliant
Portable medical imaging
LFCSP that is pin compatible with the AD9268 16-bit
Ultrasound
ADC, the AD9258 14-bit ADC, the AD9251 14-bit ADC,
Radar/LIDAR
and the AD9204 10-bit ADC, enabling a simple migration path between 10-bit and 16-bit converters sampling from 20 MSPS to 125 MSPS.
