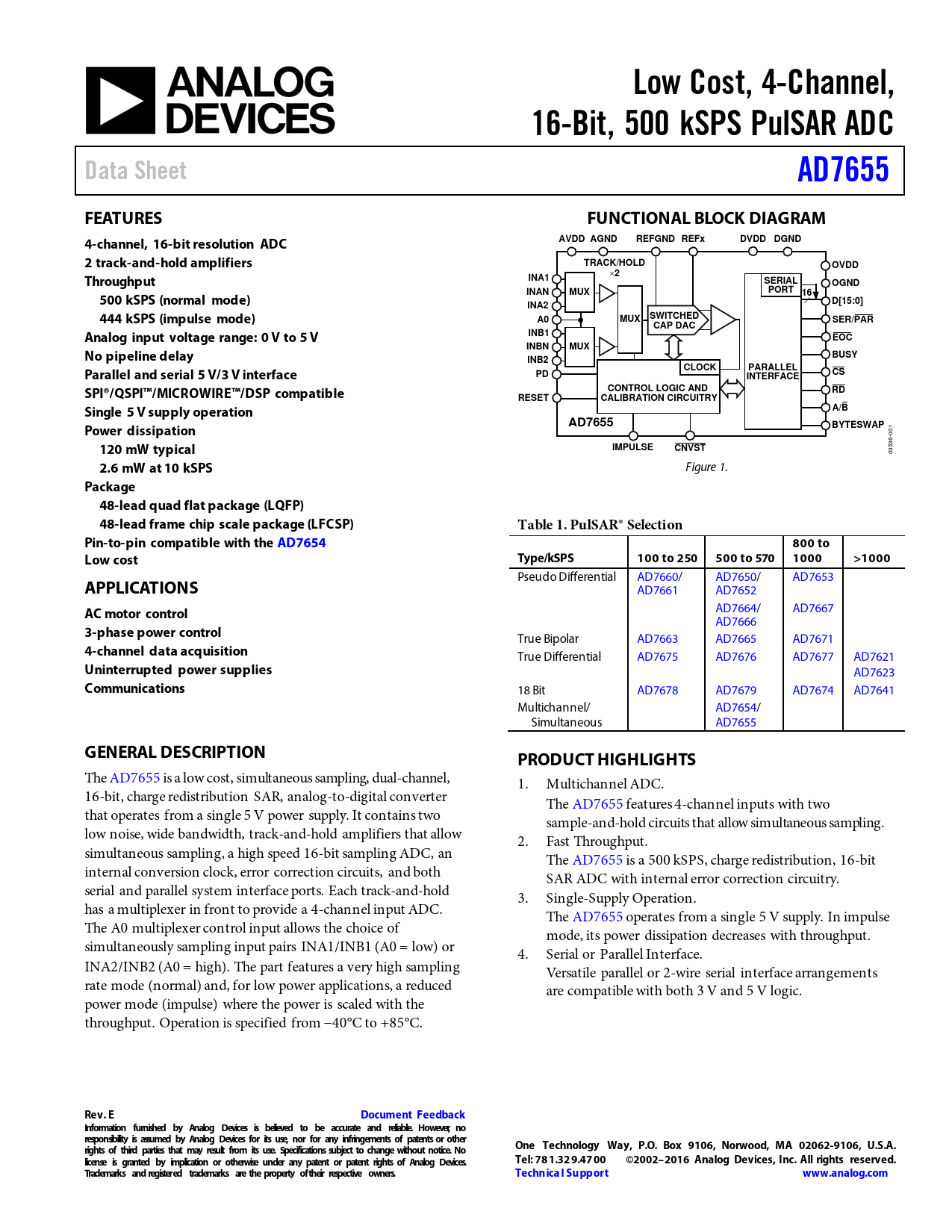

Low Cost, 4-Channel,. 16-Bit, 500 kSPS PulSAR ADC. Data Sheet. AD7655. FEATURES. FUNCTIONAL BLOCK DIAGRAM
Model Line for this Datasheet
Text Version of Document
Low Cost, 4-Channel, 16-Bit, 500 kSPS PulSAR ADC Data Sheet AD7655 FEATURES FUNCTIONAL BLOCK DIAGRAM 4-channel, 16-bit resolution ADC AVDD AGND REFGND REFx DVDD DGND 2 track-and-hold amplifiers TRACK/HOLD OVDD
×
Throughput 2 INA1 SERIAL OGND INAN PORT 500 kSPS (normal mode) MUX 16 D[15:0] INA2 444 kSPS (impulse mode) SWITCHED A0 MUX SER/PAR CAP DAC Analog input voltage range: 0 V to 5 V INB1 EOC INBN MUX No pipeline delay BUSY INB2 Parallel and serial 5 V/3 V interface CLOCK PARALLEL CS PD INTERFACE SPI®/QSPI™/MICROWIRE™/DSP compatible CONTROL LOGIC AND RD RESET CALIBRATION CIRCUITRY Single 5 V supply operation A/B AD7655 Power dissipation BYTESWAP 120 mW typical IMPULSE CNVST
03536-001
2.6 mW at 10 kSPS
Figure 1.
Package 48-lead quad flat package (LQFP) 48-lead frame chip scale package (LFCSP) Table 1. PulSAR® Selection Pin-to-pin compatible with the AD7654 800 to Low cost Type/kSPS 100 to 250 500 to 570 1000 >1000
Pseudo Differential AD7660/ AD7650/ AD7653
APPLICATIONS
AD7661 AD7652
AC motor control
AD7664/ AD7667 AD7666
3-phase power control
True Bipolar AD7663 AD7665 AD7671
4-channel data acquisition
True Differential AD7675 AD7676 AD7677 AD7621
Uninterrupted power supplies
AD7623
Communications
18 Bit AD7678 AD7679 AD7674 AD7641
Multichannel/ AD7654/
Simultaneous AD7655
GENERAL DESCRIPTION PRODUCT HIGHLIGHTS
The AD7655 is a low cost, simultaneous sampling, dual-channel, 1. Multichannel ADC. 16-bit, charge redistribution SAR, analog-to-digital converter The AD7655 features 4-channel inputs with two that operates from a single 5 V power supply. It contains two sample-and-hold circuits that allow simultaneous sampling. low noise, wide bandwidth, track-and-hold amplifiers that allow 2. Fast Throughput. simultaneous sampling, a high speed 16-bit sampling ADC, an The AD7655 is a 500 kSPS, charge redistribution, 16-bit internal conversion clock, error correction circuits, and both SAR ADC with internal error correction circuitry. serial and parallel system interface ports. Each track-and-hold 3. Single-Supply Operation. has a multiplexer in front to provide a 4-channel input ADC. The AD7655 operates from a single 5 V supply. In impulse The A0 multiplexer control input al ows the choice of mode, its power dissipation decreases with throughput. simultaneously sampling input pairs INA1/INB1 (A0 = low) or 4. Serial or Paral el Interface. INA2/INB2 (A0 = high). The part features a very high sampling Versatile parallel or 2-wire serial interface arrangements rate mode (normal) and, for low power applications, a reduced are compatible with both 3 V and 5 V logic. power mode (impulse) where the power is scaled with the throughput. Operation is specified from −40°C to +85°C.
