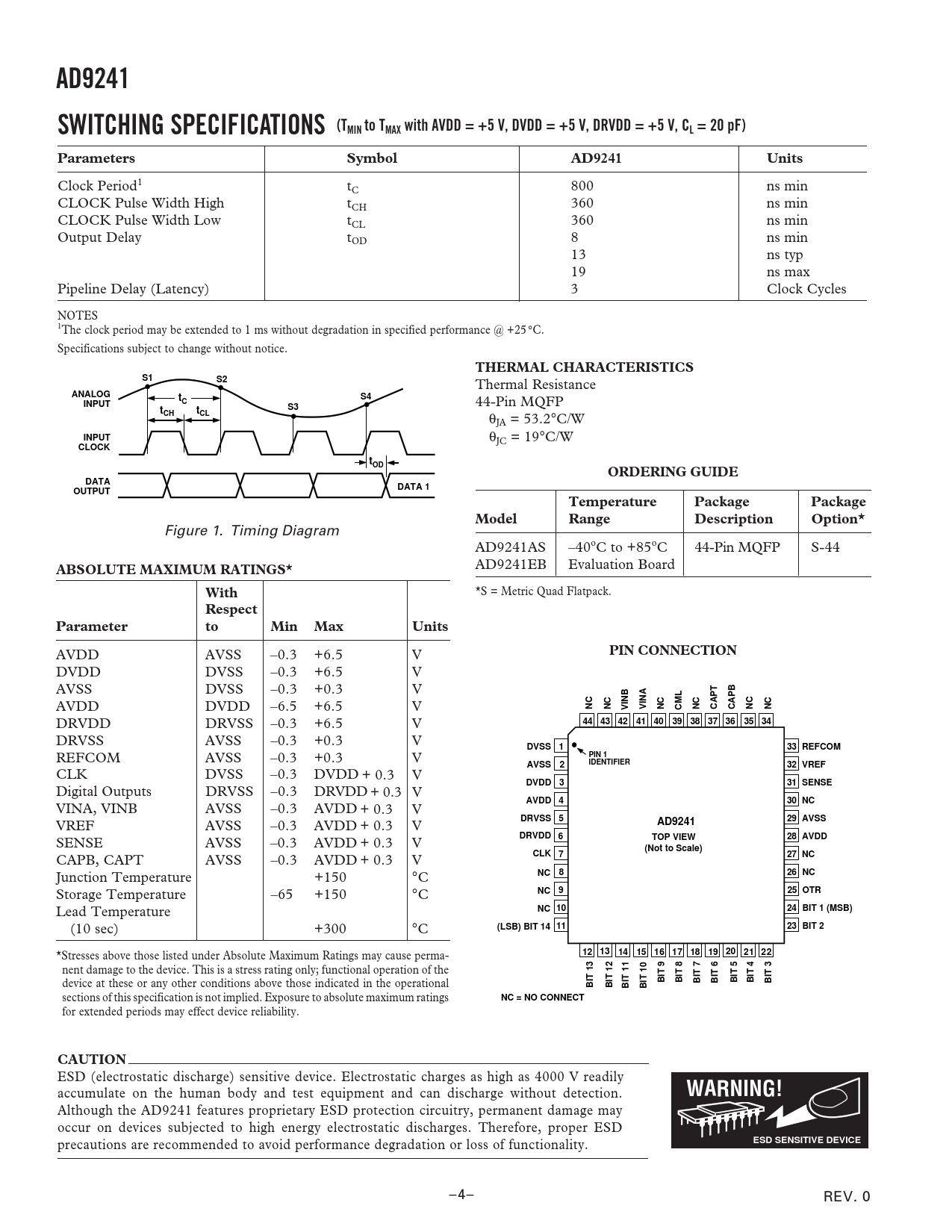

AD9241. SWITCHING SPECIFICATIONS (TMIN to TMAX with AVDD = +5 V, DVDD = +5 V, DRVDD = +5 V, CL = 20 pF). Parameters. Symbol

AD9241 SWITCHING SPECIFICATIONS (TMIN to TMAX with AVDD = +5 V, DVDD = +5 V, DRVDD = +5 V, CL = 20 pF) Parameters Symbol

Model Line for this Datasheet

Text Version of Document

AD9241 SWITCHING SPECIFICATIONS (TMIN to TMAX with AVDD = +5 V, DVDD = +5 V, DRVDD = +5 V, CL = 20 pF) Parameters Symbol AD9241 Units
Clock Period1 tC 800 ns min CLOCK Pulse Width High tCH 360 ns min CLOCK Pulse Width Low tCL 360 ns min Output Delay tOD 8 ns min 13 ns typ 19 ns max Pipeline Delay (Latency) 3 Clock Cycles NOTES 1The clock period may be extended to 1 ms without degradation in specified performance @ +25 °C. Specifications subject to change without notice.
THERMAL CHARACTERISTICS S1 S2
Thermal Resistance
ANALOG t S4 C INPUT
44-Pin MQFP
t t S3 CH CL
θJA = 53.2°C/W
INPUT
θJC = 19°C/W
CLOCK tOD ORDERING GUIDE DATA DATA 1 OUTPUT Temperature Package Package Model Range Description Option*
Figure 1. Timing Diagram AD9241AS –40oC to +85oC 44-Pin MQFP S-44
ABSOLUTE MAXIMUM RATINGS*
AD9241EB Evaluation Board
With
*S = Metric Quad Flatpack.
Respect Parameter to Min Max Units
AVDD AVSS –0.3 +6.5 V
PIN CONNECTION
DVDD DVSS –0.3 +6.5 V AVSS DVSS –0.3 +0.3 V AVDD DVDD –6.5 +6.5 V
NC NC VINB VINA NC CML NC CAPT CAPB NC NC
DRVDD DRVSS –0.3 +6.5 V
44 43 42 41 40 39 38 37 36 35 34
DRVSS AVSS –0.3 +0.3 V
DVSS 1 33 REFCOM
REFCOM AVSS –0.3 +0.3 V
PIN 1 AVSS 2 IDENTIFIER 32 VREF
CLK DVSS –0.3 DVDD + 0.3 V
DVDD 3 31 SENSE
Digital Outputs DRVSS –0.3 DRVDD + 0.3 V
AVDD 4 30 NC
VINA, VINB AVSS –0.3 AVDD + 0.3 V
DRVSS 5 29 AVSS
VREF AVSS –0.3 AVDD
AD9241
+ 0.3 V
DRVDD 6 TOP VIEW 28 AVDD
SENSE AVSS –0.3 AVDD + 0.3 V
(Not to Scale) CLK
CAPB, CAPT AVSS –0.3 AVDD
7 27 NC
+ 0.3 V Junction Temperature +150 °C
NC 8 26 NC
Storage Temperature –65 +150 °C
NC 9 25 OTR
Lead Temperature
NC 10 24 BIT 1 (MSB)
(10 sec) +300 °C
(LSB) BIT 14 11 23 BIT 2
*Stresses above those listed under Absolute Maximum Ratings may cause perma-
12 13 14 15 16 17 18 19 20 21 22
nent damage to the device. This is a stress rating only; functional operation of the device at these or any other conditions above those indicated in the operational
BIT 9 BIT 8 BIT 7 BIT 6 BIT 5 BIT 4 BIT 3 BIT 11 BIT 10
sections of this specification is not implied. Exposure to absolute maximum ratings
NC = NO CONNECT
for extended periods may effect device reliability.
BIT 13 BIT 12 CAUTION
ESD (electrostatic discharge) sensitive device. Electrostatic charges as high as 4000 V readily accumulate on the human body and test equipment and can discharge without detection.
WARNING!
Although the AD9241 features proprietary ESD protection circuitry, permanent damage may occur on devices subjected to high energy electrostatic discharges. Therefore, proper ESD
ESD SENSITIVE DEVICE
precautions are recommended to avoid performance degradation or loss of functionality. –4– REV. 0
