Datasheet AD8318 (Analog Devices) - 2
| Manufacturer | Analog Devices |
| Description | 1 MHz TO 8 GHz, 70 dB Logarithmic Detector/Controller |
| Pages / Page | 17 / 2 — DLA LAND AND MARITIME. COLUMBUS, OHIO. 16236. V62/12665 |
| File Format / Size | PDF / 179 Kb |
| Document Language | English |
DLA LAND AND MARITIME. COLUMBUS, OHIO. 16236. V62/12665
Model Line for this Datasheet
Text Version of Document

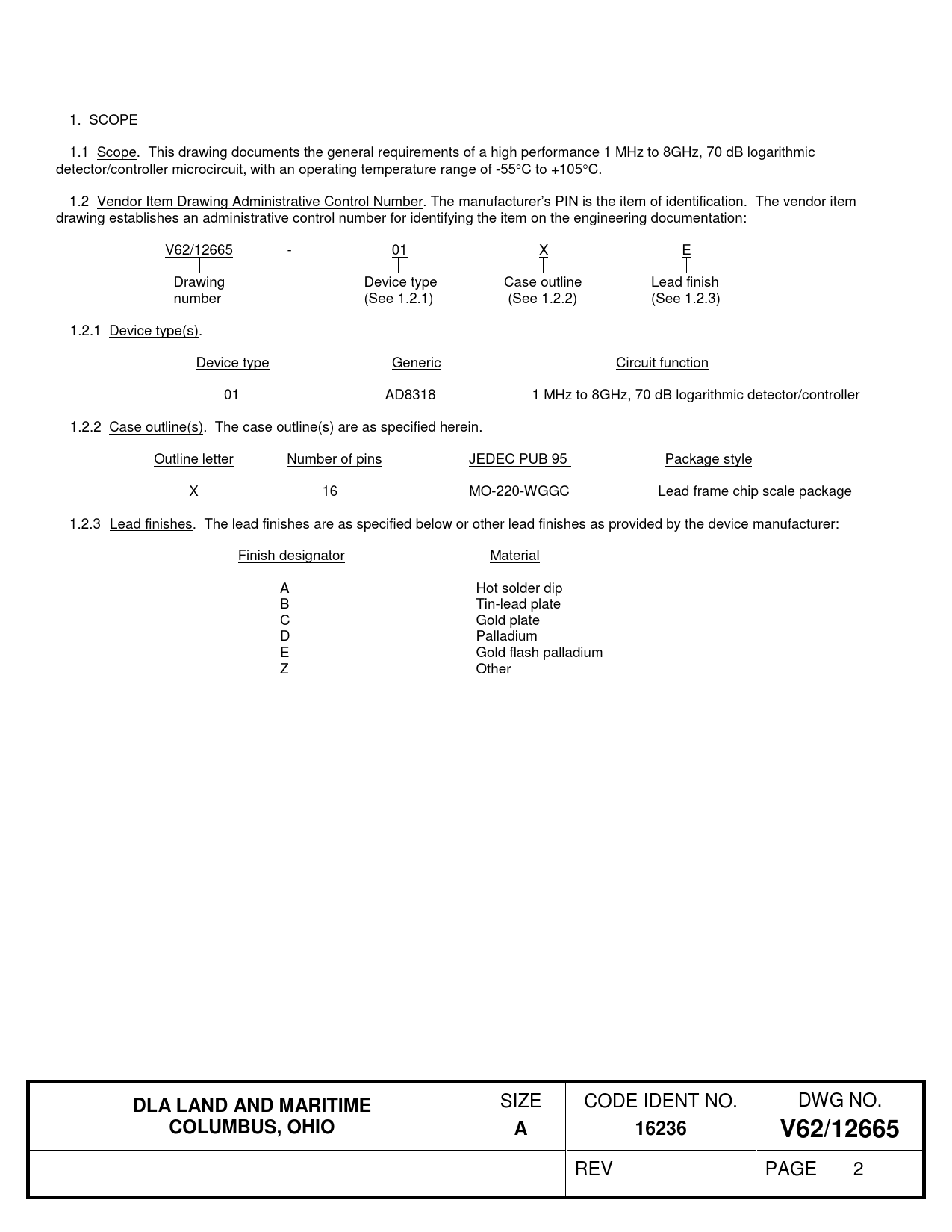

1. SCOPE
1.1 Scope. This drawing documents the general requirements of a high performance 1 MHz to 8GHz, 70 dB logarithmic detector/controller microcircuit, with an operating temperature range of -55°C to +105°C. 1.2 Vendor Item Drawing Administrative Control Number. The manufacturer’s PIN is the item of identification. The vendor item drawing establishes an administrative control number for identifying the item on the engineering documentation: V62/12665 - 01 X E Drawing Device type Case outline Lead finish number (See 1.2.1) (See 1.2.2) (See 1.2.3) 1.2.1 Device type(s).
Device type Generic Circuit function 01 AD8318 1 MHz to 8GHz, 70 dB logarithmic detector/controller 1.2.2 Case outline(s). The case outline(s) are as specified herein. Outline letter Number of pins JEDEC PUB 95 Package style X 16 MO-220-WGGC Lead frame chip scale package 1.2.3 Lead finishes. The lead finishes are as specified below or other lead finishes as provided by the device manufacturer: Finish designator Material A Hot solder dip B Tin-lead plate C Gold plate D Palladium E Gold flash palladium Z Other
