Datasheet AD8318 (Analog Devices) - 5

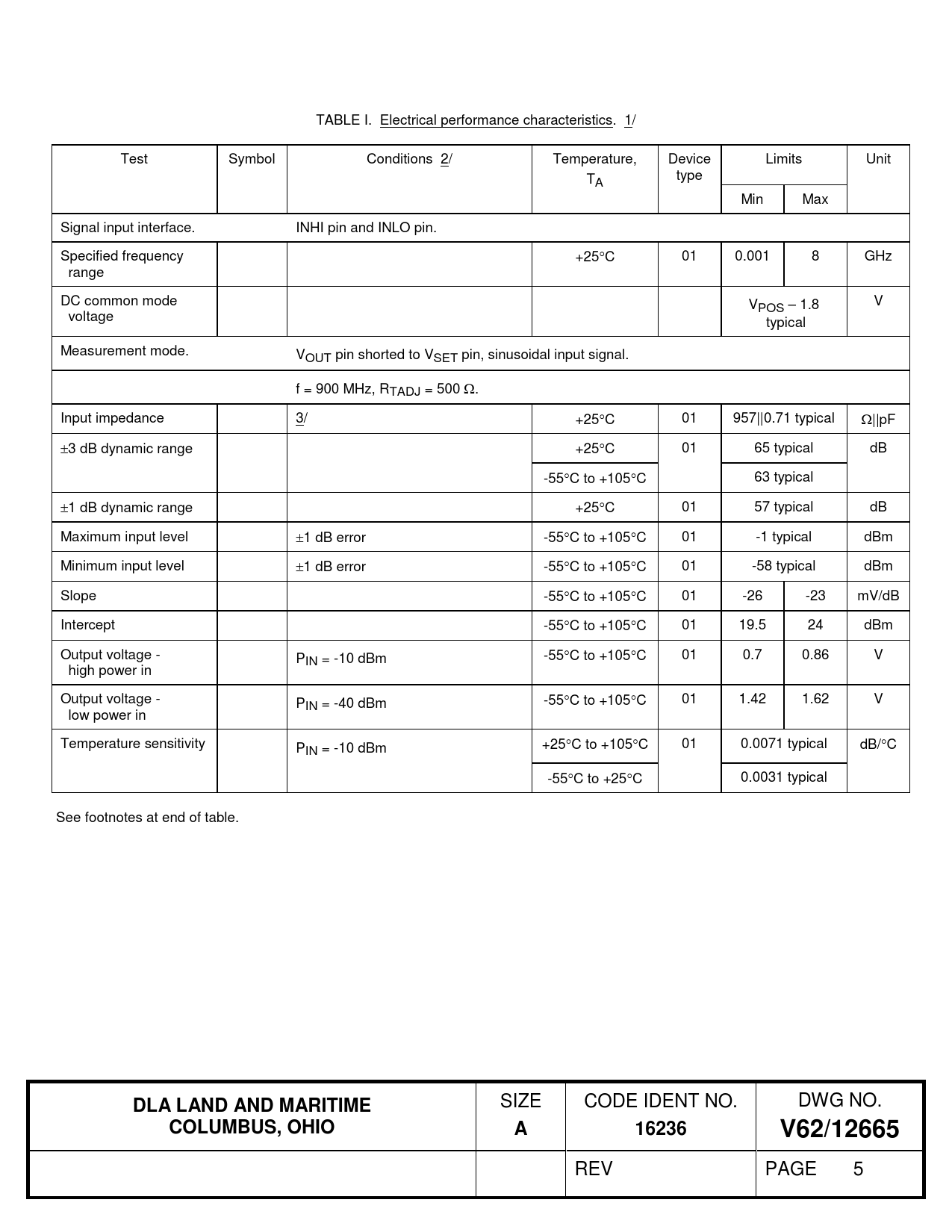

TABLE I. Electrical performance characteristics. 1/ Test Symbol Conditions 2/ Temperature, Device Limits Unit T type A Min Max Signal input interface. INHI pin and INLO pin. Specified frequency +25°C 01 0.001 8 GHz range DC common mode V V POS – 1.8 voltage typical Measurement mode. VOUT pin shorted to VSET pin, sinusoidal input signal. f = 900 MHz, RTADJ = 500 Ω. Input impedance 3/ +25°C 01 957||0.71 typical Ω||pF ±3 dB dynamic range +25°C 01 65 typical dB -55°C to +105°C 63 typical ±1 dB dynamic range +25°C 01 57 typical dB Maximum input level ±1 dB error -55°C to +105°C 01 -1 typical dBm Minimum input level ±1 dB error -55°C to +105°C 01 -58 typical dBm Slope -55°C to +105°C 01 -26 -23 mV/dB Intercept -55°C to +105°C 01 19.5 24 dBm Output voltage - PIN = -10 dBm -55°C to +105°C 01 0.7 0.86 V high power in Output voltage - PIN = -40 dBm -55°C to +105°C 01 1.42 1.62 V low power in Temperature sensitivity PIN = -10 dBm +25°C to +105°C 01 0.0071 typical dB/°C -55°C to +25°C 0.0031 typical See footnotes at end of table.
