LTC6909
operAtion

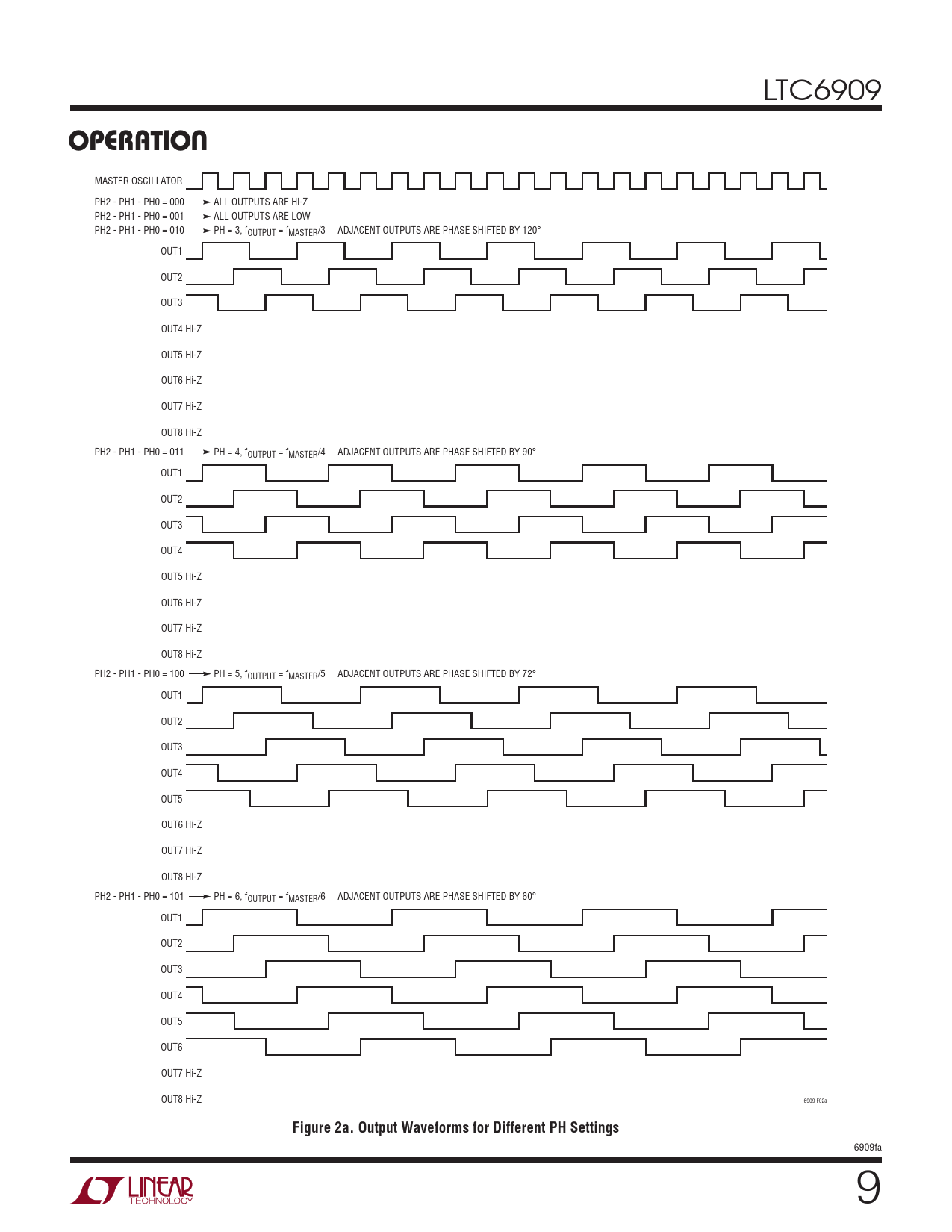

MASTER OSCILLATOR PH2 - PH1 - PH0 = 000 ALL OUTPUTS ARE Hi-Z PH2 - PH1 - PH0 = 001 ALL OUTPUTS ARE LOW PH2 - PH1 - PH0 = 010 PH = 3, fOUTPUT = fMASTER/3 ADJACENT OUTPUTS ARE PHASE SHIFTED BY 120° OUT1 OUT2 OUT3 OUT4 Hi-Z OUT5 Hi-Z OUT6 Hi-Z OUT7 Hi-Z OUT8 Hi-Z PH2 - PH1 - PH0 = 011 PH = 4, fOUTPUT = fMASTER/4 ADJACENT OUTPUTS ARE PHASE SHIFTED BY 90° OUT1 OUT2 OUT3 OUT4 OUT5 Hi-Z OUT6 Hi-Z OUT7 Hi-Z OUT8 Hi-Z PH2 - PH1 - PH0 = 100 PH = 5, fOUTPUT = fMASTER/5 ADJACENT OUTPUTS ARE PHASE SHIFTED BY 72° OUT1 OUT2 OUT3 OUT4 OUT5 OUT6 Hi-Z OUT7 Hi-Z OUT8 Hi-Z PH2 - PH1 - PH0 = 101 PH = 6, fOUTPUT = fMASTER/6 ADJACENT OUTPUTS ARE PHASE SHIFTED BY 60° OUT1 OUT2 OUT3 OUT4 OUT5 OUT6 OUT7 Hi-Z OUT8 Hi-Z 6909 F02a
Figure 2a. Output Waveforms for Different PH Settings
