LTC6909
operAtion

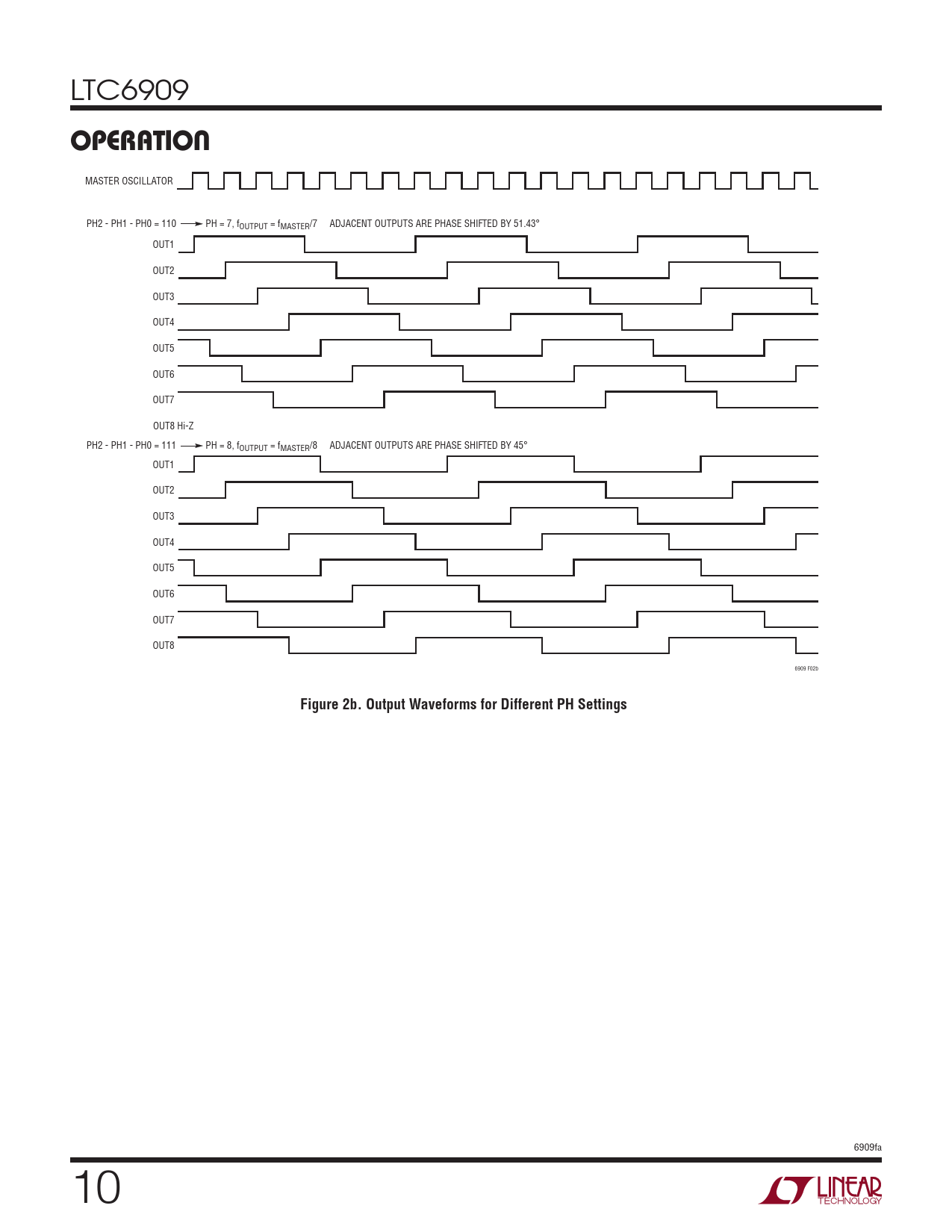

MASTER OSCILLATOR PH2 - PH1 - PH0 = 110 PH = 7, fOUTPUT = fMASTER/7 ADJACENT OUTPUTS ARE PHASE SHIFTED BY 51.43° OUT1 OUT2 OUT3 OUT4 OUT5 OUT6 OUT7 OUT8 Hi-Z PH2 - PH1 - PH0 = 111 PH = 8, fOUTPUT = fMASTER/8 ADJACENT OUTPUTS ARE PHASE SHIFTED BY 45° OUT1 OUT2 OUT3 OUT4 OUT5 OUT6 OUT7 OUT8 6909 F02b
Figure 2b. Output Waveforms for Different PH Settings
